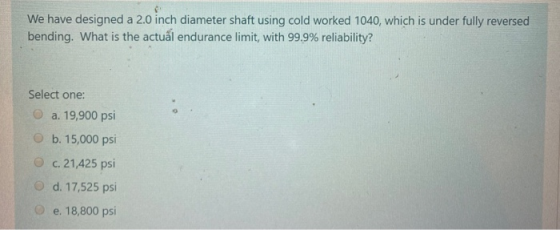

We have designed a 2.0 inch diameter shaft using cold worked 1040, which is under fully...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

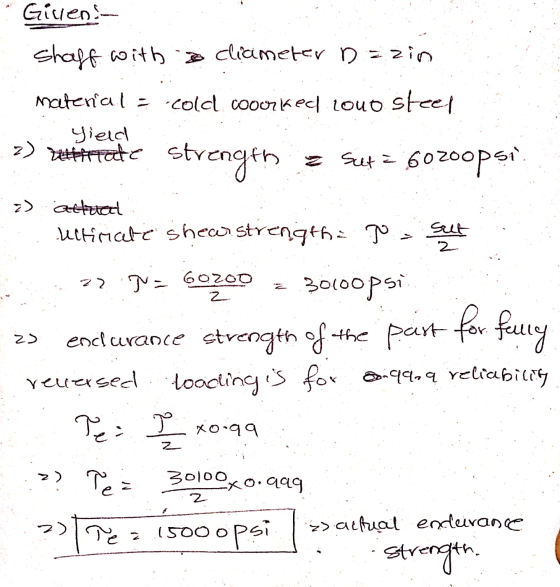

Given- Shaff with a clisimeter Dazin material = cold woorked louosteel : Yield 2) rate strength a sut = 6ozoopsi . a) attual

Answer 2

Similar Homework Help Questions

1) [40 pts] Determination of minimum shaft diameter using DE-Gerber, DE-ASME Elliptic, DE-Soderberg, and DE-Goodman criteria...

1) [40 pts] Determination of minimum shaft diameter using DE-Gerber, DE-ASME Elliptic, DE-Soderberg, and DE-Goodman criteria A shaft is loaded in bending and torsion such that M. = 66 Nm, T. = 42.496 Nm, Mm = 51.858 Nm, and Tm = 33 N m. For the shaft, S, = 700 MPa and S, = 560 MPa, and a fully corrected endurance limit of S, = 210 MPa is assumed. Let K = 2.2 and Kis = 1.8. With a design...
I 2 in 11 in in Problem Statement The shaft shown is rotating under loads F1 : 1 8.F2= 1.9 klbf. ...

Can someone please provide neat, correct work. Experts only please. Thank you I 2 in 11 in in Problem Statement The shaft shown is rotating under loads F1 : 1 8.F2= 1.9 klbf. Dimensions are c 8, e 8.g 8.h-10, 10 n = 3 in. All fillets have l 16 radius. The critical location is at x= 10.5 point Q where the moment is high, the diameter small, and the fillet causes a stress concentration. The material is cold drawn...
