Homework Answers
Add Answer to:

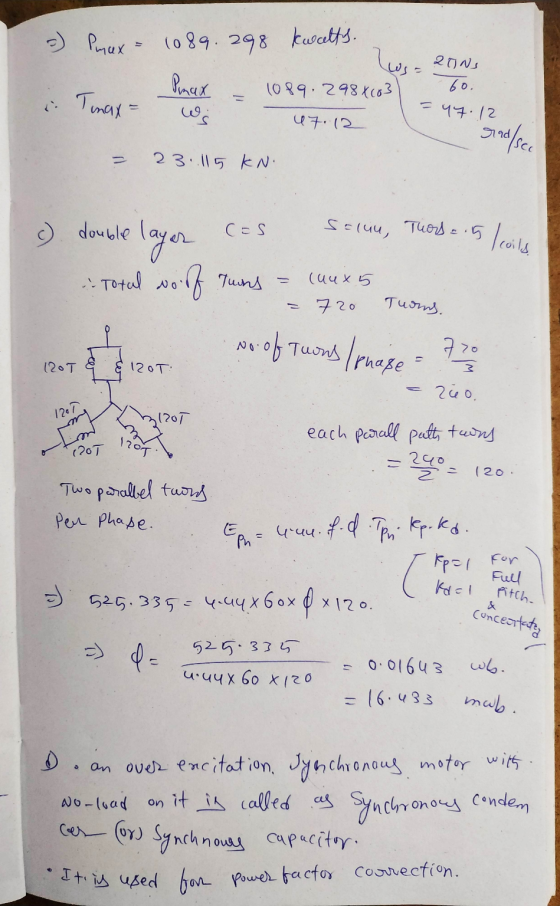

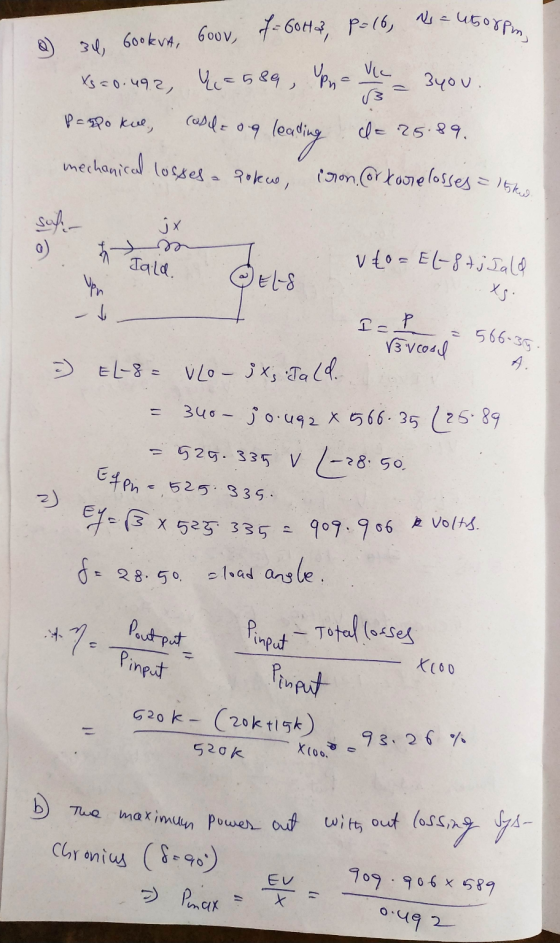

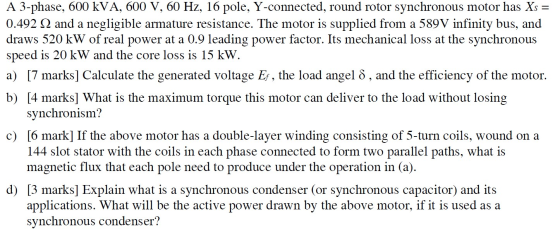

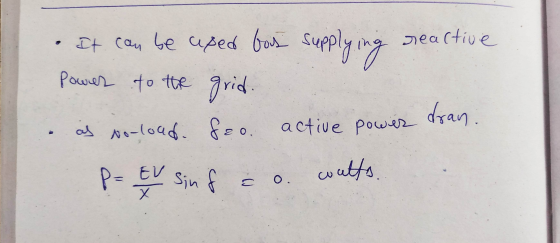

A 3-phase, 600 kVA, 600 V, 60 Hz, 16 pole, Y-connected, round rotor synchronous motor has...
(Question 1): (4pts) A three-phase, 2300-V, 60-Hz, 10-pole, A-connected cylindrical rotor synchronous motor has a synchronous...
(Question 1): (4pts) A three-phase, 2300-V, 60-Hz, 10-pole, A-connected cylindrical rotor synchronous motor has a synchronous reactance of 4.0 82/phase. The armature resistance may be neglected. It is connected to 2300-V source and drives a system with its excitation set to give a PF of 0.9-leading when the power is 500-kW. (a) Sketch the phasor diagram of this motor. (b) Calculate the armature current. (c) Calculate the excitation voltage and torque angle. (d) If the load torque is increased by...
Question 4 (10 marks) A) A 10-kVA, 415-V, three phase, Y -connected synchronous generator has a...
Question 4 (10 marks) A) A 10-kVA, 415-V, three phase, Y -connected synchronous generator has a winding resistance of 0.3 Q and a synchronous reactance of 0.6 on a per phase basis. Determine its voltage regulation at full load when the power factor is (a) 75% lagging and (b) 75% leading. B) (10 marks) A 220-V, Y-connected, three-phase, synchronous motor has a synchronous reactance of 4 O/phase and negligible armature winding resistance. At a certain load the motor takes 7.5...
Be detailed please A three-phase y-connected 2300 V, 60 Hz round-rotor synchronous motor has a synchronous...
Be detailed please
A three-phase y-connected 2300 V, 60 Hz round-rotor synchronous motor has a synchronous reactance of 2 ohms/ phase and negligible armature resistance. 2. If the motor takes a line current of 350 A operating at a leading pf of 0.8. calculate the armature voltage and the power angle. If the motor is operating on load with a load angle of-20%, and the excitation is adjusted so that the armature voltage is equal in magnitude to the terminal...
45% A 450 KVA, 2080 V, 50 Hz, 6-pole, three-phase, Y-connected, synchronous motor has a synchronous...
45% A 450 KVA, 2080 V, 50 Hz, 6-pole, three-phase, Y-connected, synchronous motor has a synchronous impedance of 0.5+ j15 Ohm/phase, and rotational loss is 18 kw 3, Determine: a. The excitation voltage (15%) b. The power angle (15%) c. The power developed when the motor is fully loaded at 0.8666 PF leading (15%)
2.3 (20 points) A separately-excited de motor is mechanically coupled to a three-phase, 4-pole, 30-kVA, 460-V, round-rotor synchronous generator. The de motor is connected to a constant 230-V de...
2.3 (20 points) A separately-excited de motor is mechanically coupled to a three-phase, 4-pole, 30-kVA, 460-V, round-rotor synchronous generator. The de motor is connected to a constant 230-V de supply The ac generator is connected to a 460 V, fixed-voltage, fixed-frequency, three-phase supply. The synchronous reactance of the synchronous generator is 513 Ω/phase. The armature resistance of the de motor is 30 m2. The 4-pole de machine is rated 30 kW at 230 V. All unspecified losses are to be...
A 480 V, 60 Hz, 470 kVA, 0.85 PF lagging, 2-pole, Y-connected synchronous generator has a...
A 480 V, 60 Hz, 470 kVA, 0.85 PF lagging, 2-pole,
Y-connected synchronous generator has a synchronous reactance of
XS=0.016 Ω and an armature resistance of RA=0.016 Ω. At rated
conditions the core losses are 7 kW. Friction losses and field
winding losses are 8 kW. Suppose the machine is connected to an
infinite bus (hence the terminal voltage is fixed) and it is
running at the rated conditions.
a) What is the rotor speed in rpm?
b) Calculate the...
3. A 480 V, 60 Hz, 470 kVA, 0.85 PF lagging, 2-pole, Y-connected synchronous generator has...
3. A 480 V, 60 Hz, 470 kVA, 0.85 PF lagging, 2-pole, Y-connected synchronous generator has a synchronous reactance of Xs=0.0162 and an armature resistance of RA=0.0.1622. At rated conditions the core losses are 7 kW. Friction losses and field winding losses are 8 kW. Suppose the machine is connected to an infinite bus (hence the terminal voltage is fixed) and it is running at the rated conditions. a) What is the rotor speed in rpm? b) Calculate the phase...
4. A 150 kVA, 460-V, four pole, 60 Hz, three phase, Y-connected synchronous motor operatingat rat...
Electric Machines - Synchronous Motors
4. A 150 kVA, 460-V, four pole, 60 Hz, three phase, Y-connected synchronous motor operatingat rated load has a synchronous reactance of 1.20 ohms/phase, determine: Excitation voltage Power angle Pull-out torque Draw a phasor diagram a. b. c. d.
4. A 150 kVA, 460-V, four pole, 60 Hz, three phase, Y-connected synchronous motor operatingat rated load has a synchronous reactance of 1.20 ohms/phase, determine: Excitation voltage Power angle Pull-out torque Draw a phasor diagram a....
1. A three-phase, 5 kVA, 208 V, four-pole, 60 Hz, wye-connected synchronous machine has...
A three-phase, 5 kVA, 208 V, four-pole, 60 Hz, wye-connected synchronous machine has negligible stator winding resistance and a synchronous reactance of 8 Wper phase. It is operated in parallel with a three-phase, 208 V, 60 Hz power supply.Determine the excitation voltage and the power angle when the machine is delivering rated kVA at 0.8 pf lagging. Draw the phasor diagram
5 Marks) A 4-pole, 3 phase, 50 Hz, 230 V induction motor. Each phase of rotor winding b) has one-fourth the number of t...
5 Marks) A 4-pole, 3 phase, 50 Hz, 230 V induction motor. Each phase of rotor winding b) has one-fourth the number of turns of each stator. The full-load speed is 1,455 rpm. The rotor resistance is 0.3 Ω and rotor standstill reactance is 1.0 Ω per phase. The rotor and stator windings are similar. Stator losses are equal to 50 Watts. Friction and windage losses are equal to 30 W. Calculate ) Blocked rotor voltage per phase. 2 Marks)...
(Question 1): (4pts) A three-phase, 2300-V, 60-Hz, 10-pole, A-connected cylindrical rotor synchronous motor has a synchronous reactance of 4.0 82/phase. The armature resistance may be neglected. It is connected to 2300-V source and drives a system with its excitation set to give a PF of 0.9-leading when the power is 500-kW. (a) Sketch the phasor diagram of this motor. (b) Calculate the armature current. (c) Calculate the excitation voltage and torque angle. (d) If the load torque is increased by...
Question 4 (10 marks) A) A 10-kVA, 415-V, three phase, Y -connected synchronous generator has a winding resistance of 0.3 Q and a synchronous reactance of 0.6 on a per phase basis. Determine its voltage regulation at full load when the power factor is (a) 75% lagging and (b) 75% leading. B) (10 marks) A 220-V, Y-connected, three-phase, synchronous motor has a synchronous reactance of 4 O/phase and negligible armature winding resistance. At a certain load the motor takes 7.5...
Be detailed please
A three-phase y-connected 2300 V, 60 Hz round-rotor synchronous motor has a synchronous reactance of 2 ohms/ phase and negligible armature resistance. 2. If the motor takes a line current of 350 A operating at a leading pf of 0.8. calculate the armature voltage and the power angle. If the motor is operating on load with a load angle of-20%, and the excitation is adjusted so that the armature voltage is equal in magnitude to the terminal...
45% A 450 KVA, 2080 V, 50 Hz, 6-pole, three-phase, Y-connected, synchronous motor has a synchronous impedance of 0.5+ j15 Ohm/phase, and rotational loss is 18 kw 3, Determine: a. The excitation voltage (15%) b. The power angle (15%) c. The power developed when the motor is fully loaded at 0.8666 PF leading (15%)
2.3 (20 points) A separately-excited de motor is mechanically coupled to a three-phase, 4-pole, 30-kVA, 460-V, round-rotor synchronous generator. The de motor is connected to a constant 230-V de supply The ac generator is connected to a 460 V, fixed-voltage, fixed-frequency, three-phase supply. The synchronous reactance of the synchronous generator is 513 Ω/phase. The armature resistance of the de motor is 30 m2. The 4-pole de machine is rated 30 kW at 230 V. All unspecified losses are to be...
A 480 V, 60 Hz, 470 kVA, 0.85 PF lagging, 2-pole,
Y-connected synchronous generator has a synchronous reactance of
XS=0.016 Ω and an armature resistance of RA=0.016 Ω. At rated
conditions the core losses are 7 kW. Friction losses and field
winding losses are 8 kW. Suppose the machine is connected to an
infinite bus (hence the terminal voltage is fixed) and it is
running at the rated conditions.
a) What is the rotor speed in rpm?
b) Calculate the...
3. A 480 V, 60 Hz, 470 kVA, 0.85 PF lagging, 2-pole, Y-connected synchronous generator has a synchronous reactance of Xs=0.0162 and an armature resistance of RA=0.0.1622. At rated conditions the core losses are 7 kW. Friction losses and field winding losses are 8 kW. Suppose the machine is connected to an infinite bus (hence the terminal voltage is fixed) and it is running at the rated conditions. a) What is the rotor speed in rpm? b) Calculate the phase...
Electric Machines - Synchronous Motors
4. A 150 kVA, 460-V, four pole, 60 Hz, three phase, Y-connected synchronous motor operatingat rated load has a synchronous reactance of 1.20 ohms/phase, determine: Excitation voltage Power angle Pull-out torque Draw a phasor diagram a. b. c. d.
4. A 150 kVA, 460-V, four pole, 60 Hz, three phase, Y-connected synchronous motor operatingat rated load has a synchronous reactance of 1.20 ohms/phase, determine: Excitation voltage Power angle Pull-out torque Draw a phasor diagram a....
5 Marks) A 4-pole, 3 phase, 50 Hz, 230 V induction motor. Each phase of rotor winding b) has one-fourth the number of turns of each stator. The full-load speed is 1,455 rpm. The rotor resistance is 0.3 Ω and rotor standstill reactance is 1.0 Ω per phase. The rotor and stator windings are similar. Stator losses are equal to 50 Watts. Friction and windage losses are equal to 30 W. Calculate ) Blocked rotor voltage per phase. 2 Marks)...
