A radial, deep grove ball bearing is specified from a manufacturer’s catalog based on a L10...
A radial, deep grove ball bearing is specified from a manufacturer’s catalog based on a L10 life of 106 cycles. The bearing has a basic load rating of 2,500 N and is to be used in an application where the design radial load is 350 N and the axial load is zero. What is the predicted life (hours of the bearing if the inner race of the bearing rotates at 1,800 rpm?
A.70
B. 3,400
C. 200,000
D. 160
Homework Answers

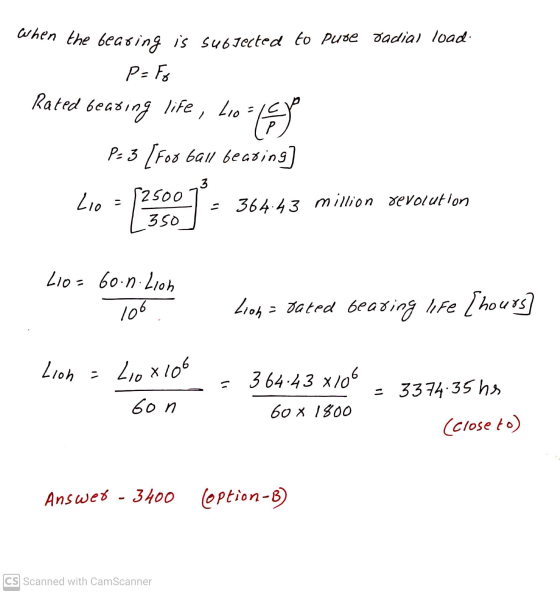

![When the bearing is subjected to puse sadial load. P=Fo Rated beading life, 100 - 2009 P= 3 [Fog ball beading] 3 Lio [2500 st](http://img.homeworklib.com/questions/7f77a130-3b6b-11ec-84de-8b1a091564b2.png?x-oss-process=image/resize,w_560)
