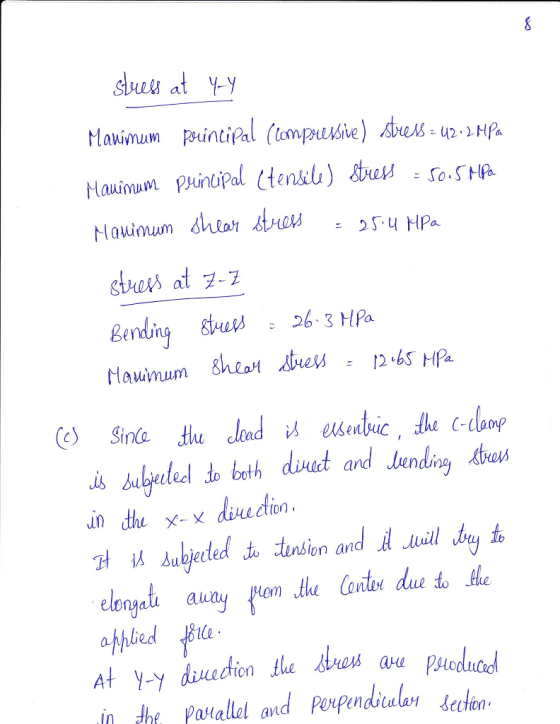

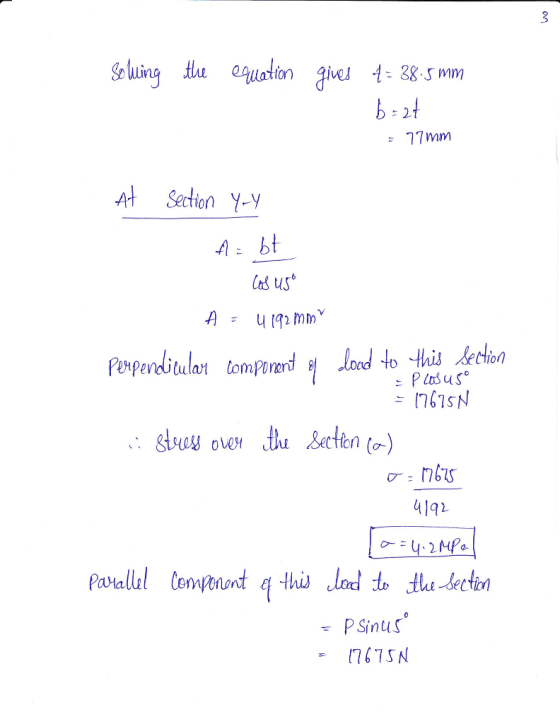

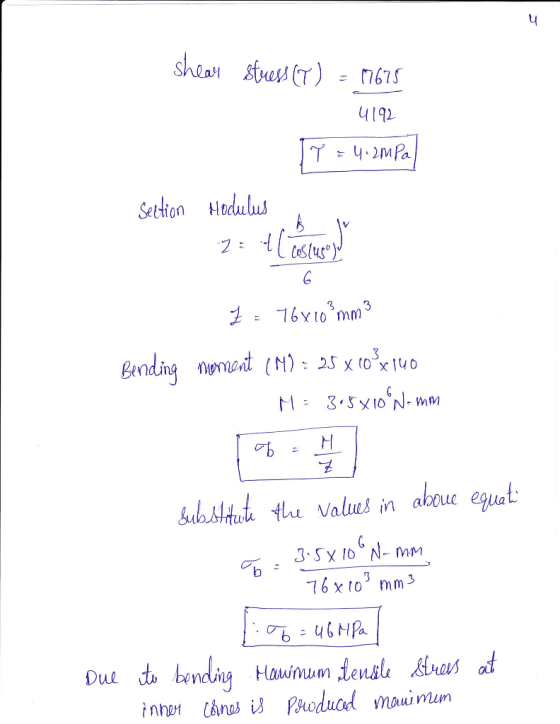

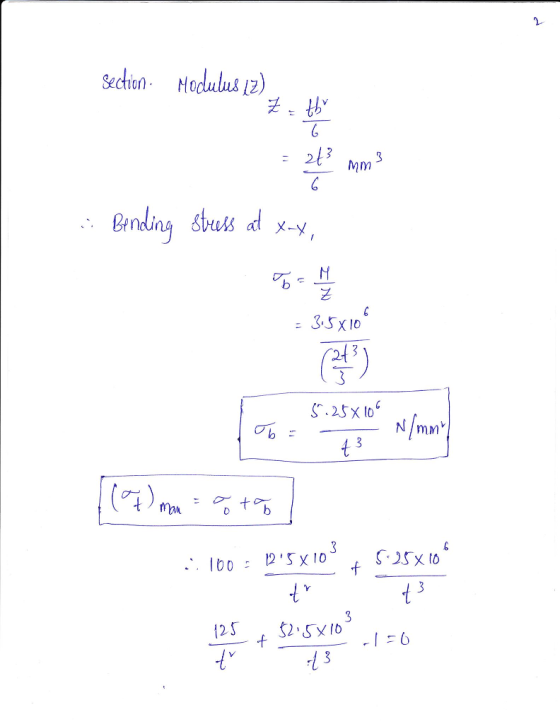

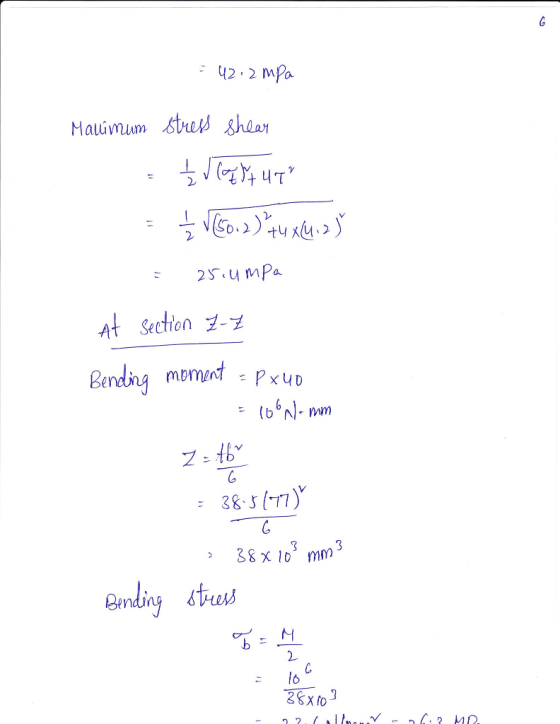

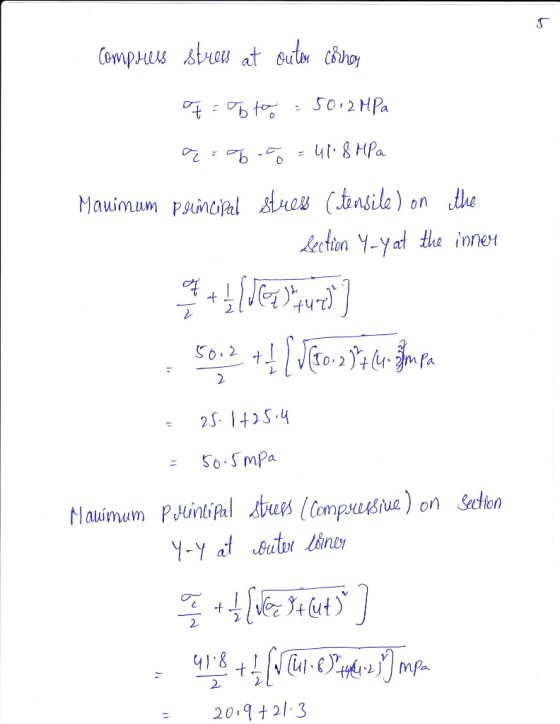

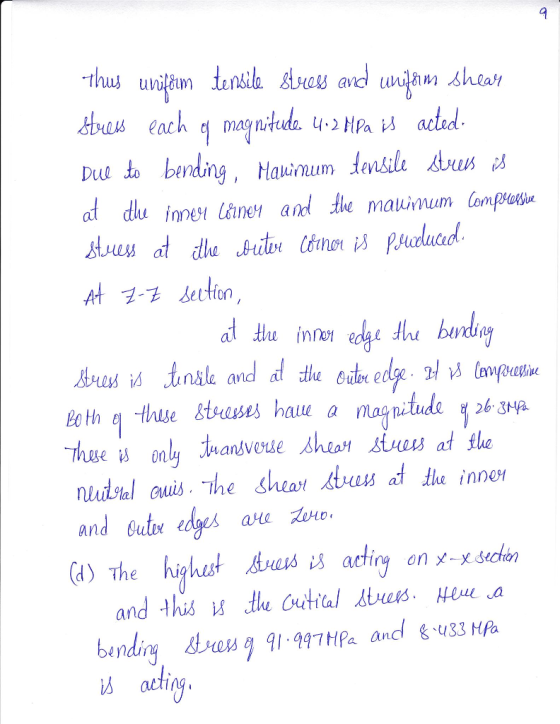

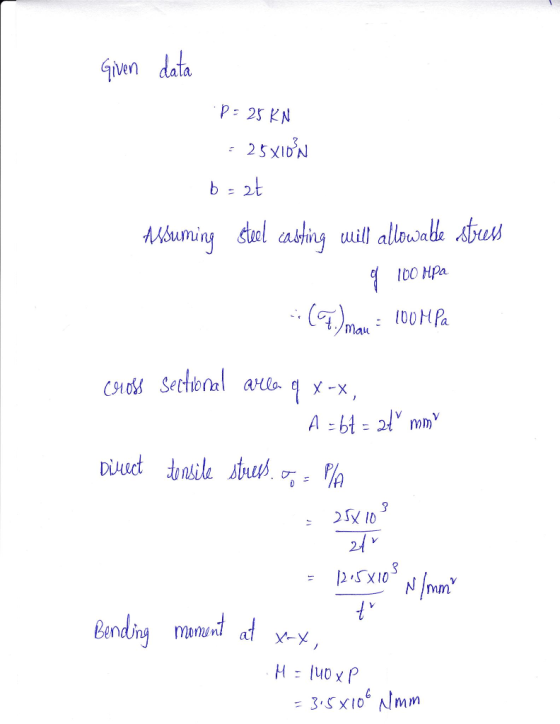

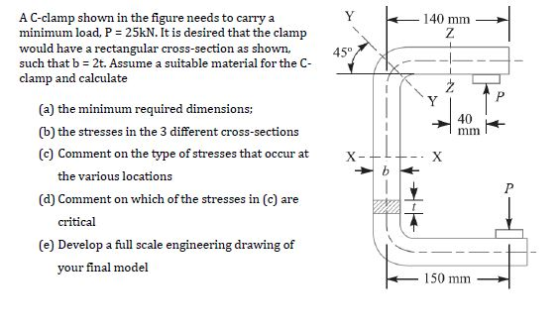

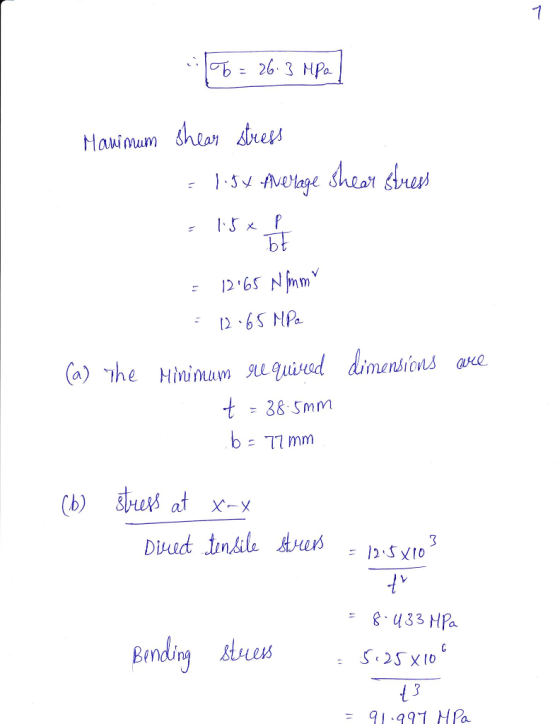

A C-clamp shown in the figure needs to carry a minimum load, P = 25kN. It...
The cantilever beam shown in the figure is subjected to a concentrated load at point B. The stresses acting at point H on the beam are to be determined. H Cross section For this analysis, use the following values: Beam and Load. a = 1.75 m b=0.30 m @= 60 degrees P = 25 KN Cross-sectional Dimensions d=250 mm bp = 125 mm ty=7 mm tw = 7 mm C= 30 mm (Note: The load P applied at Bacts in...
The cantilever beam shown in the figure is subjected to a concentrated load at point B. The stresses acting at point Hon the beam are to be determined Ques! Text- Quest Text Ent T Quest Text End Cross section Viewir Text-Ent For this analysis, use the following values Beam and Load. Questi Muitstep a. 1.75 m b-0.30 m 0.63 degrees P.49 KN Questid Text Entry Questio Text Entry Cross-sectional Dimensions d - 275 mm by - 150 mm - 13...
A gear reduction unit uses the countershaft shown in the figure. The solid steel shaft is simply supported by bearings at points O and C. Gear A receives power from another gear with the transmitted force FA applied at the 200 pressure angle as shown. The power is transmitted through the shaft and delivered through gear B through a transmitted force Fa at the pressure angle shown. 0 350 mm 225 ma Gear A 500-mm dia Gear B 200 mm...
Problem 6: Link 2, shown in the figure, is 25 mm wide, has 12-mm diameter bearings at the ends, and is cut from low-carbon steel bar stock having a minimum yield strength of 165 MPa. The end- condition constants are C-1 and C-1.2 for buckling in and out of the plane of the drawing, respectively. a. Using a design factor na 4, find a suitable thickness for the link. b. Are the bearing stresses at O and B of any...
Q1 The pin-jointed wood truss shown in Figure Q1a is subjected to a point load P 24 kN at joint B a) Show that the truss is statically determinant. Indicate zero force members. Determine the force in members BC, CF, GF of the truss [10 marks] b) The truss is made of wooden joists (Young modulus E 10 GPa) with a rectangular cross-section having dimensions of 47mm × 150mm. The vertical displacement of joint B is measured to be 10...
The point loads are placed at the fixed positions shown in the figure and they are live loads. E C (centre) f = 32 Mpa fer= 3 MPa fsv = 500 MPa E = 200 GPa E = 28600 MPa a Cross section The following values are used for the question. . l = 3 m load before cracking • 12 = 2.5 m . P = 2 KN . a = 50 mm . G-5 kN/m • b =...
please solve with details
Question#1140Marksl The shaft shown in the figure is rotating at 650 rpm and it receives 5592.75 W through a flexible coupling at its right end. The power is delivered to an adjacent shaft through a single helical gear B having a normal pressure angle of 20° and a helix angle of 15o. The pitch diameter for the gear is 105.1814 mm (4.141 in). A spacer is used to position the gear relative to bearing C. The...
As shown in Figure 8, the structural member (beam) is 7m long, carries a 2 kN point load, a 1.2 kN/m uniformly distributed load and is supported at points A and B. The beam is constructed from two pieces of steel plate (2 at 80mm x 8mm) that are welded together with 3mm welds. Section properties for the beam are also listed. Given the support reactions as RAv 5.8 kN and RBv 2.2 kN, as well as the shear force...
A proposed residential development of a single tower is to be built on a sloping site as shown in Figure 1. The site has a (W1m x 25m wide building zone. A level platform has to be created by building a permanent retaining structure outside the building zone but within the (W2m x (W2m wide site boundary. A temporary slope, which may extend outside the site boundary, has to be formed in advance for construction of the retaining structure. ---...
summatize the following info and break them into differeng key points. write them in yojr own words
