4. For a simply supported beam AB with concentrated load at C, determine step-by-step (a) the...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

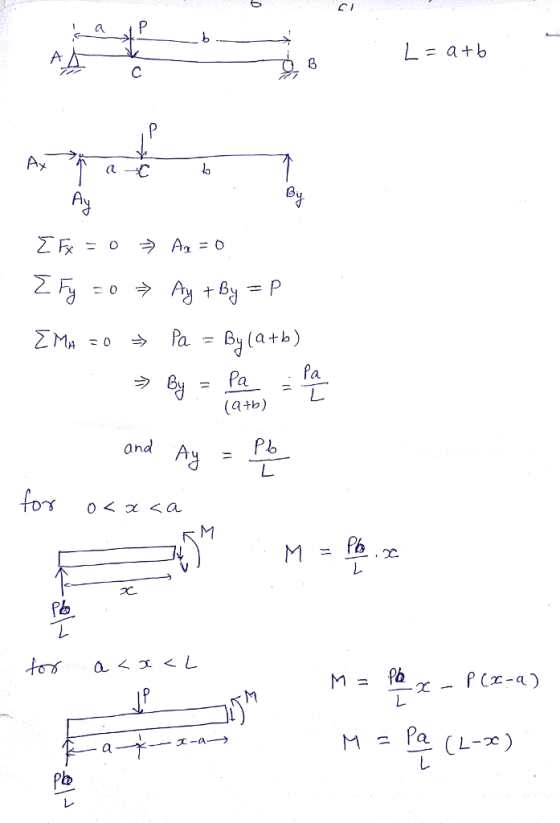

L= a+b a-c Pa (atb)

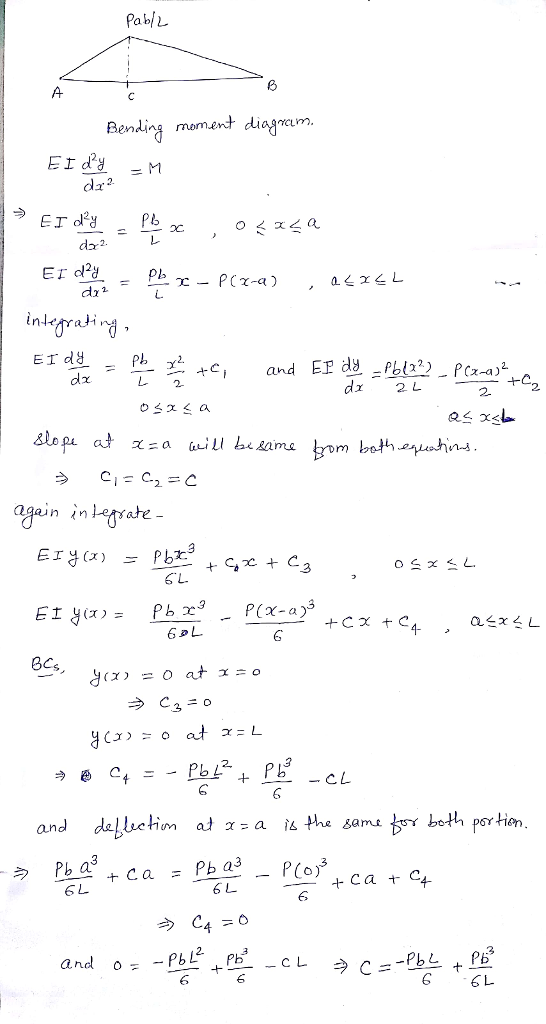

Pahl 6 Bending moment diagram dz2 EI d dx 2L again 8Cs and debuchmat: a is the samutsY both portion 6L 6L and 6 GL

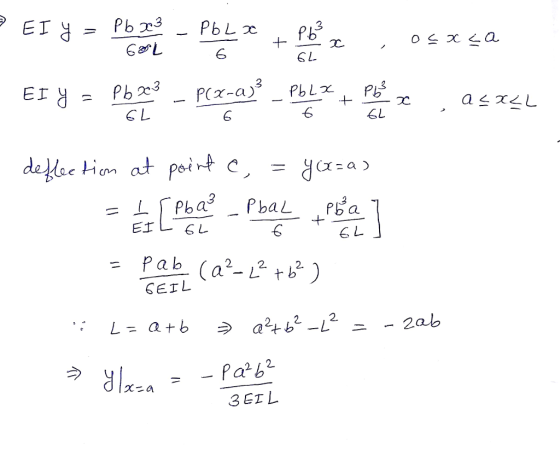

10 c 6 6 се G L GEIL 3ETL

Answer 2

Similar Homework Help Questions

Q2. A simply supported beam AB (Figure 2) supports a uniformly distributed load of q =...

Q2. A simply supported beam AB (Figure 2) supports a uniformly distributed load of q = 18kN/m and a concentrated load of P = 23kN at the centre. Consider length of the beam, L = 3m, Young's modulus, E = 200GPa and moment of inertial, I = 30 x 10 mm-. Assume the deflection of the beam can be expressed by elastic curve equations of the form: y(x) = Ax4 + Bx3 + Cx2 + Dx + E. 1) Sketch...
The simply supported beam AB in Figure 1 is subjected to a load variation given by...

The simply supported beam AB in Figure 1 is subjected to a load variation given by w(x) = -kr". ܨܝ܂ Figure 1 (a) Determine the equation of the elastic curve in terms of El, x and L. (El is constant) (15 Points) (b) The beam has a length L of 1 m. Determine, in terms of k: (1) The reaction at the roller support. (3 Points) (ii) The bending moment at the section 0.2 m from end A, (that is,...
Problem #4 (20 points): For the following simply supported beam: a) Determine equations for V(x) and...

Problem #4 (20 points): For the following simply supported beam: a) Determine equations for V(x) and M(x) for sections 0<x< 2 and 2<x< 8. Box your answers. b) Roughly sketch the shear and bending moment diagram for the beam. c) Determine the maximum bending moment (magnitude), Mmax and where it occurs, Xmax 4 kN/m XA 2m- - 6 m 3 KN

The equation of the elastic curve (deflection) for a simply supported beam under uniform load is...

The equation of the elastic curve (deflection) for a simply supported beam under uniform load is given by y= 1.7 * 10^-5 x^2 (160 - x^2 + x^3), in which, x is the distance from the left support of the beam to any point on the beam, and y is the deflection, both in meters. Find the rate of change of the deflection of the elastic curve at x m = 2
In Appendix C, see the simply supported beam with a uniformly distributed load. Be careful with...

In Appendix C, see the simply supported beam with a uniformly distributed load. Be careful with units and the sign convention. For this calculation, the overhung part of the beam from C to D can be ignored, and the beam is treated as a simply supported beam of length 2L1. Be careful with units and the sign convention. The simply supported beam consists of a W530 × 66 structural steel wide-flange shape [ E = 200 GPa; I = 351...
The W33 x221 steel simply supported beam is loaded with concentrated loads and uniform load as...

The W33 x221 steel simply supported beam is loaded with concentrated loads and uniform load as shown with the load P= 150kip and w = 10kip/ft. For this beam do the following; a) Draw the shear and bending moment diagram b) Calculate the maximum compressive and tensile stress c) Calculate the maximum shear stress P Р 3 ft 3 ft w 10 ft

Q2 The simply supported beam of length is subjected to a vertical point load at its...

Q2 The simply supported beam of length is subjected to a vertical point load at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as and. Please provide your answers in terms of letters. Self-weight of the beam is neglected. Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram [10] (b) Determine both the slope and deflection at the...
Question 29 For the following simply supported beam AB, the beam is loaded with a concentrated...

Question 29 For the following simply supported beam AB, the beam is loaded with a concentrated load and a segment of uniform load as shown below 40 KN 20 kN/m 0.5m 2 m The reaction at support B is: 25 kN 35 kN 30 kN All the choices are incorrect
A simple beam AB supports a concentrated load P acting at distances a and b from...

A simple beam AB supports a concentrated load P acting at distances a and b from the left-hand and right-hand supports, respectively (Fig. 9-12a). Determine the equations of the deflection curve, the angles of rota- tion a and at the supports, the maximum deflection 9mx, and the deflection &c at the midpoint C of the beam (Fig. 9-12b). (Note: The beam has length L and constant flexural rigidity El.) Fig. 9-12 Example 9-3: Deflections of a simple beam with a...

4. For the simply supported beam with uniformly distributed load wo, derive the equation for th...

4. For the simply supported beam with uniformly distributed load wo, derive the equation for th elastic curve. Find the maximum deflection and its location. Wo
