a rectangular crossection beam that is simply supported on both end with a point load in...

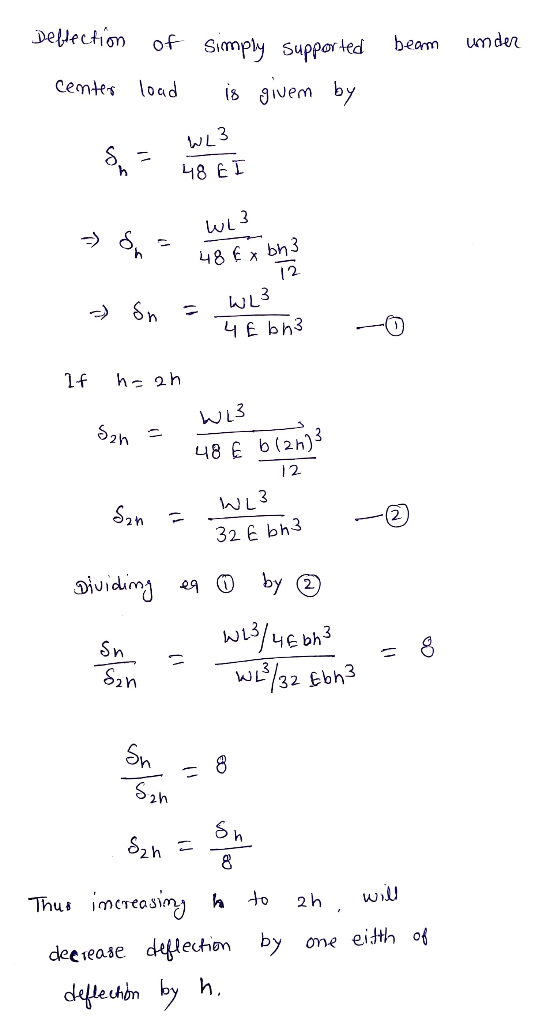

a rectangular crossection beam that is simply supported on both end with a point load in the middle has a height value of h, if the height of the beam increased from h to 2h how much will the deflection under the center load change
Homework Answers
Add Answer to:
a rectangular crossection beam that is simply supported on both
end with a point load in...
The equation of the elastic curve (deflection) for a simply supported beam under uniform load is...
The equation of the elastic curve (deflection) for a simply supported beam under uniform load is given by y= 1.7 * 10^-5 x^2 (160 - x^2 + x^3), in which, x is the distance from the left support of the beam to any point on the beam, and y is the deflection, both in meters. Find the rate of change of the deflection of the elastic curve at x m = 2
Q2 The simply supported beam of length is subjected to a vertical point load at its...
Q2 The simply supported beam of length is subjected to a vertical point load at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as and. Please provide your answers in terms of letters. Self-weight of the beam is neglected. Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram [10] (b) Determine both the slope and deflection at the...
Question 2 Simply supported beam ABC is subject to a point load and the patch loads...
Question 2 Simply supported beam ABC is subject to a point load and the patch loads as indicated in Figure Q2. Assume the beam has a uniform cross-section size. The Modulus of Elasticity E = 210x106 kN/m2, second moment of area l=5x105 m. Determine the deflection of beam ABC at the middle point using MacCaulay's Method. Total (15) marks. -30 KN -6 kN/m -3 kN/m B 3 m 4 m * Figure Q2: Simply supported beam ABC
For a beam of rectangular cross section, height b, depth d, is simply supported (by pin...
For a beam of rectangular cross section, height b, depth d, is simply supported (by pin joints at each end) over a span of length L and carries a point load W at mid span. Determine the distribution and maximum value of the normal stress.
Load: q=100lb/in BP1: Determine normal and transverse shear stress on a simply supported rectangular 5-ft beam...
Load: q=100lb/in
BP1: Determine normal and transverse shear stress on a simply supported rectangular 5-ft beam with a cross-sectional height of 5" and beam depth of 1" at a point 4' from left and one inch from the top.
(a) A simply supported beam of hollow rectangular section is to be designed for min mum...
(a) A simply supported beam of hollow rectangular section is to be designed for min mum weight to carry a vertical load Fy and an axial load P as shown in Fig. 2. The deflection of the beam in the y direction under the self-weight and Fy should not exceed 0.5 in. The beam should not buckle either in the yz or the xz plane under the axial load. Assuming the ends of the beam to be pin ended, formulate...
Q2 The simply supported beam of length L is subjected to a vertical point load P...
Q2 The simply supported beam of length L is subjected to a vertical point load P at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters P,L,1, E. Self-weight of the beam is neglected. P L/2 L/2 Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram. [10]...
Q2 The simply supported beam of length L is subjected to a vertical point load P...
Q2 The simply supported beam of length L is subjected to a vertical point load P at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters P,L,1,E. Self-weight of the beam is neglected P L/2 L/2 Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram. [10] (b)...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting th...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting the beam weight, the maximum load deflection of the beam is with a point load in.(Fill in the blank and show calculation below) Show equation(s) used and calculation(s):
A steel beam is simply supported over a span of 20 feet...
Figure Q3 shows a simply supported beam carrying a point load. The beam hasa rectangular hollow...
Figure Q3 shows a simply supported beam carrying a point load. The beam hasa rectangular hollow steel section as shown in Figure Q3. a. Calculate the second moment of area of the section about the horizontal (10 marks) centroidal axis. Calculate the maximum allowable value of the point load Wif the elastic bending (15 marks) b. stress in the beam is to be limited to 250 MPa. c. Calculate the maximum shear stress at q-q in the beam when the...
Q2 The simply supported beam of length is subjected to a vertical point load at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as and. Please provide your answers in terms of letters. Self-weight of the beam is neglected. Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram [10] (b) Determine both the slope and deflection at the...
Question 2 Simply supported beam ABC is subject to a point load and the patch loads as indicated in Figure Q2. Assume the beam has a uniform cross-section size. The Modulus of Elasticity E = 210x106 kN/m2, second moment of area l=5x105 m. Determine the deflection of beam ABC at the middle point using MacCaulay's Method. Total (15) marks. -30 KN -6 kN/m -3 kN/m B 3 m 4 m * Figure Q2: Simply supported beam ABC
For a beam of rectangular cross section, height b, depth d, is simply supported (by pin joints at each end) over a span of length L and carries a point load W at mid span. Determine the distribution and maximum value of the normal stress.
Load: q=100lb/in
BP1: Determine normal and transverse shear stress on a simply supported rectangular 5-ft beam with a cross-sectional height of 5" and beam depth of 1" at a point 4' from left and one inch from the top.
(a) A simply supported beam of hollow rectangular section is to be designed for min mum weight to carry a vertical load Fy and an axial load P as shown in Fig. 2. The deflection of the beam in the y direction under the self-weight and Fy should not exceed 0.5 in. The beam should not buckle either in the yz or the xz plane under the axial load. Assuming the ends of the beam to be pin ended, formulate...
Q2 The simply supported beam of length L is subjected to a vertical point load P at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters P,L,1, E. Self-weight of the beam is neglected. P L/2 L/2 Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram. [10]...
Q2 The simply supported beam of length L is subjected to a vertical point load P at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters P,L,1,E. Self-weight of the beam is neglected P L/2 L/2 Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram. [10] (b)...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting the beam weight, the maximum load deflection of the beam is with a point load in.(Fill in the blank and show calculation below) Show equation(s) used and calculation(s):
A steel beam is simply supported over a span of 20 feet...
Figure Q3 shows a simply supported beam carrying a point load. The beam hasa rectangular hollow steel section as shown in Figure Q3. a. Calculate the second moment of area of the section about the horizontal (10 marks) centroidal axis. Calculate the maximum allowable value of the point load Wif the elastic bending (15 marks) b. stress in the beam is to be limited to 250 MPa. c. Calculate the maximum shear stress at q-q in the beam when the...
