15. Assume that the surface of a part has a profile given by y = 1.5x10^-6...

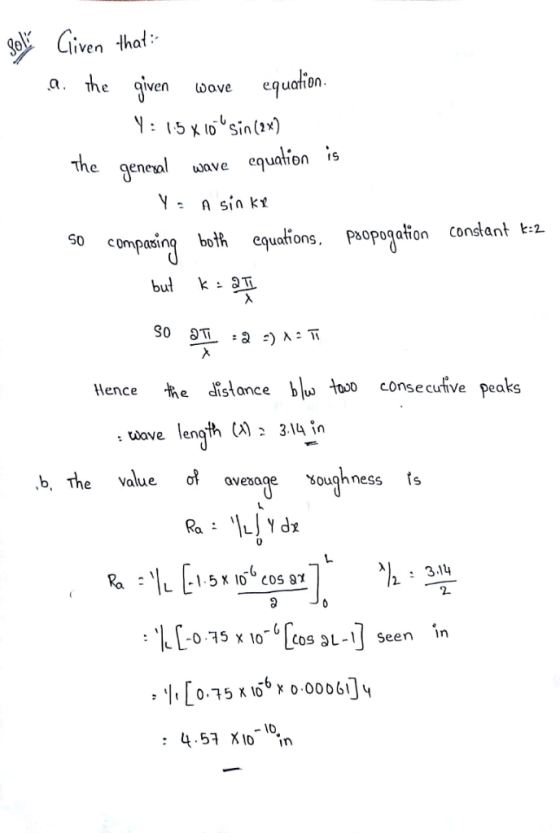

15. Assume that the surface of a part has a profile given by y = 1.5x10^-6 in sin(2x/in). Both x and y are in inches. Answer the following questions:
a. What is the distance between peaks?
b. What is the value of Ra AA over 1 inch length?

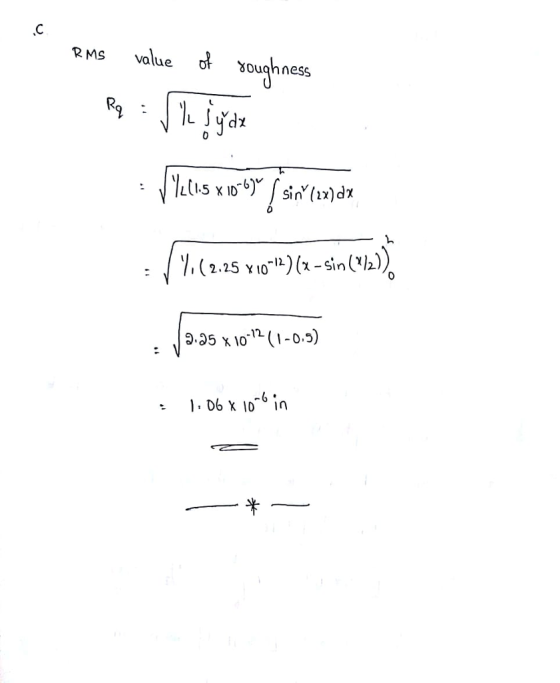

c. What is the value of Ra RMS over 1 inch length?
d. What process may have produced such surface? Use a chart from the internet or elsewhere to support your answer.
Homework Answers
