Water at 15 degrees Celcius (surface tension is 0.0742 N/m) stands in a clean glass tube...

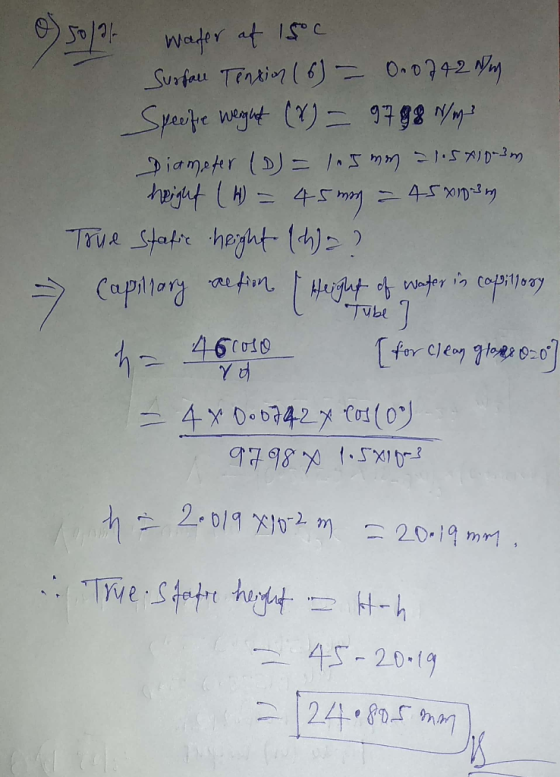

Water at 15 degrees Celcius (surface tension is 0.0742 N/m) stands in a clean glass tube of 1.5-mm diameter at a height of 45 mm. What is the true static height?
Homework Answers
