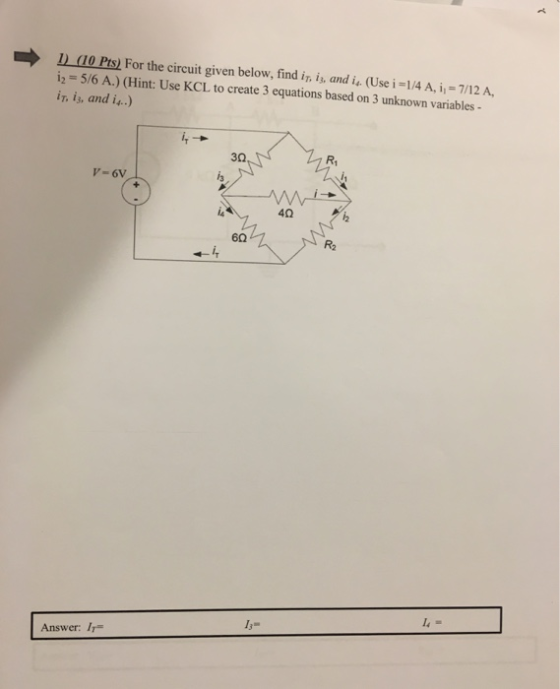

1) (10 Pts) For the circuit given below, find is, is, and is (Use i =1/4...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

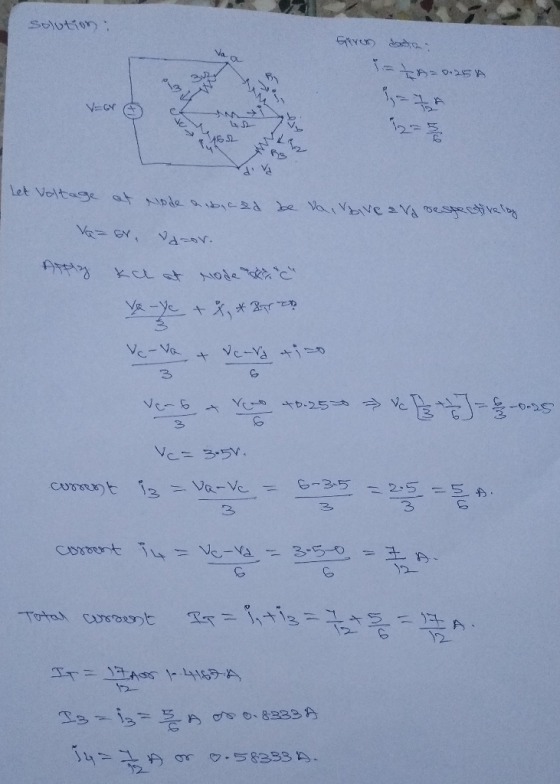

solution: Jag i to.254 Vor 162 et voltage at node a abczd be vai dive Va respectively Vazar, varor. Allg ka at rode che ve-ye

Answer 2

Similar Homework Help Questions

4. (10 points) For the circuit below, there are three currents shown. Write three equations which...

4. (10 points) For the circuit below, there are three currents shown. Write three equations which could be used to solve for the unknown currents. Do not solve them 6V 52 I V IL w 82 Iz v 'av Him 12V
4. (10 points) For the circuit below, there are three currents shown. Write three equations which...

4. (10 points) For the circuit below, there are three currents shown. Write three equations which could be used to solve for the unknown currents. Do not solve them. 6v 52 www mwiti I V اس کے I2 w 82 9v Iz V mm il 12V
1/take Question 9 10 pts In the circuit below find i3 40 iy i ww 3Q...

1/take Question 9 10 pts In the circuit below find i3 40 iy i ww 3Q i3 10 V 5 A 60 D Question 10 10 pts In the circuit below find i1 iz 3Q is 5 A 10 V 6 Q

pts) Consider the following Op Amp Circuit, use Op Amp rules to calculate vo vi and...

pts) Consider the following Op Amp Circuit, use Op Amp rules to calculate vo vi and vx vi . hint: you may need to introduce a variable Vx in your KCL equations. Use R1 = 1Ω, R2 = R3 = R4 = 2kΩ, Rf = 3kΩ. 1. (40 pts) Consider the following Op Amp Circuit, use Op Amp rules to calculated and hint: you may need to introduce a variable Vx in your KCL equations. Use R1 = 12, R2...
please solve them all 2) For the circuit shown in Figure 1. Find the following: A....

please solve them all 2) For the circuit shown in Figure 1. Find the following: A. How many independent loops are present in the circuit? B. How many nodes are present in the circuit? C. Write a KVL equation at every independent loop (mesh) in the circuit in terms of the indicated voltage and current variables. D. Write a KCL equation at every node in the circuit. Write those equations using the indicated voltage variables by incorporating Ohm's Law for...
Find the currents I1, I2, and I3 in given circuits. 1) 9V, 12V, 25 ohm, 18...

Find the currents I1, I2, and I3 in given circuits. 1) 9V, 12V, 25 ohm, 18 ohm, 35 ohm 2) 6V, 12V, 25 ohm, 10 ohm, 15 ohm 3) 6V, 3V, 2 ohm, 10 ohm, 8 ohm, 12 ohm, 6 ohm the currents I., Iz, and Iz in given Find circuits. lart 182 { 352 2532 2 Ispr 12V 22 IN

I need hepl plz Consider the circuit given below. 13 12 If/= 7 A, obtain the...

I need hepl plz Consider the circuit given below. 13 12 If/= 7 A, obtain the values for all the three mesh currents in the circuit. The value of the mesh current in is A. The value of the mesh current iz is The value of the mesh current iz is
3. Use the circuit below for the next 4 questions. 412 w izf271 vy 44 30...

3. Use the circuit below for the next 4 questions. 412 w izf271 vy 44 30 100 W 310 a. What is the minimum number of KCL equations required to find all the nodal voltages using nodal analysis? b. Which nodes can you use for KCL when solving this circuit using nodal analysis? c. Will a supernode be required? d. Using nodal analysis, find ix and vy:
Q2) (30 pts) For the circuit shown below, use Nodal analysis to determine the following (22...

Q2) (30 pts) For the circuit shown below, use Nodal analysis to determine the following (22 pts) the nodal equations " write the eqations in standard form" (6 pts) find the numerical values of all labeled voltages "vl, v2, v3, v4, vx (2 pts) find the current through R42 4 Q 12 22 ww Ref. 2 A 2v

Problem 4 Use loop analysis to set the system of equations to solve the circuit below....

Problem 4 Use loop analysis to set the system of equations to solve the circuit below. Note you don't need to solve the system of equations but you should arrange your equations and express the system in matrix format (in terms of II, 12, and 13 as the only unknown parameters in the system of equations). 20.2 w + -J16 13 6/30° v -J82 41 - 1 2000 12 ) {J6
