Homework Answers
matlab

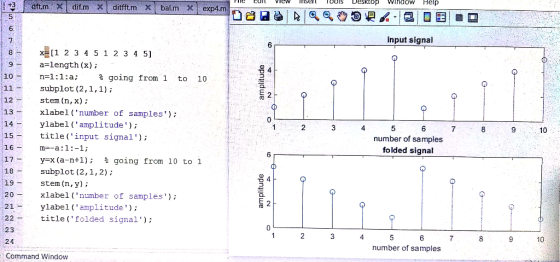

program for time folded signal
matlab

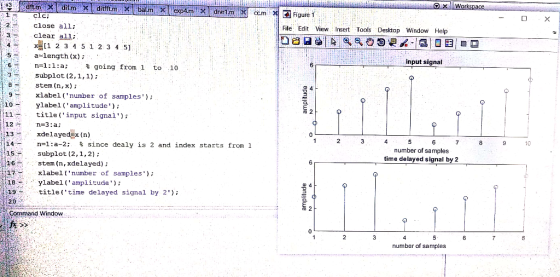

program for time shifted signal
Thumbs
up !
Add Answer to:

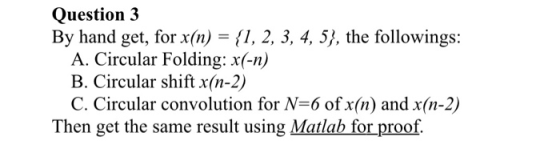

Question 3 By hand get, for x(n) = {1, 2, 3, 4, 5), the followings: A....
