Homework Answers
Add Answer to:
In the figure, M2 has more mass than M1 and M1 has more mass than M3....
Also how do you figure it out? In the figure, M2 has more mass than M1...
Also how do you figure it out?

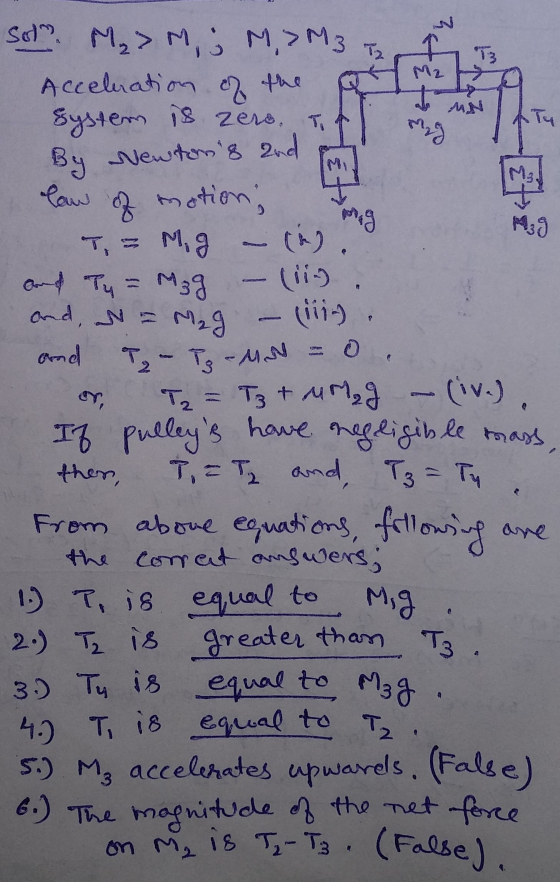

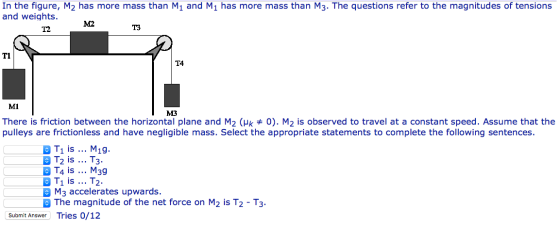

In the figure, M2 has more mass than M1 and M1 has more mass than M3. The questions refer to the magnitudes of tensions and weights M2 12 T3 T1 T4 MI M3 There is friction between the horizontal plane and M2 (μk 0). M2 is observed to travel at a constant speed. Assume that the pulleys are frictionless and have negligible mass. Select the appropriate statements to complete the following sentences Equal...
options are TRUE, FALSE, GREATER THAN, LESS THAN, EQUAL TO In the figure, M2 has more...
options are TRUE, FALSE, GREATER THAN, LESS
THAN, EQUAL TO
In the figure, M2 has more mass than My and M1 has more mass than M3. The questions refer to the magnitudes of tensions and weights. M2 T3 MI M3 There is friction between the horizontal plane and M2 (uk # 0). M2 is observed to travel at a constant speed. Assume that the pulleys are frictionless and have negligible mass. Select the appropriate statements to complete the following sentences....
In the figure to the right, M2 has more mass than M1 and M1 has more...
In the figure to the right, M2 has more mass than
M1 and M1 has more mass than M3.
The questions refer to the magnitudes of tensions and weights.
There is friction between the horizontal plane and M2
().
M2 is observed to travel at a constant speed. Assume
that the pulleys are frictionless and have negligible
mass. SEE THE PHOTO BELLOW!!!
options are True, False, Greater, Than Less, Than, or Equal
to
I need the correct answer in order to give full rating. Thanks In the figure to...
I need the correct answer in order to give full rating.
Thanks
In the figure to the right, M2 has more mass than M1 and M1 has
more mass than M3. The questions refer to the magnitudes of
tensions and weights. There
is friction between the horizontal plane and M2 (mu_k not equal to
0). M2 is observed to travel at a constant speed. Assume that the
pulleys are frictionless and have negligible mass. Select the
appropriate symbol for each...
Mass m1 = 4.50−kg is connected to mass m2 = 4.55−kg by a string that passes...
Mass m1 = 4.50−kg is connected to mass m2
= 4.55−kg by a string that passes through a massless and
frictionless pulley. Mass m2 is connected to mass
m3 = 3.00−kg by a string.
Find the tension in the strings.
T1 =
N
T2 =
N
TA T. m, m1 T2 N m
Mass m1 = 5.65−kg is connected to mass m2 = 4.35−kg by a string that passes...
Mass m1 = 5.65−kg is connected to mass m2 = 4.35−kg by a string that passes through a massless and frictionless pulley. Mass m2 is connected to mass m3 = 3.00−kg by a string. find t1 and t2 in N
Three blocks on a frictionless surface are connected by massless strings, with M1 = 1.20kg, M2...
Three blocks on a frictionless surface are connected by massless strings, with M1 = 1.20kg, M2 = 2.60kg, and M3 = 3.40kg. Due to theforce F acting on M3, the system accelerates to the right. Given that T1 is 4.70Newtons, calculate T2.
2. Atwood's Table with Two Hanging Masses You have table of width L, masses m1, m2,...
2. Atwood's Table with Two Hanging Masses You have table of width L, masses m1, m2, and m3, two frictionless pulleys, and ideal string. Placing m2 on the table, you attach a bit of string to mass m1 the left pulley, to the left side of m2. Similarly, you hang mass m3 from the right side of m2 using the pulley on the right side of the table. The coefficient of friction of the table is mu. The acceleration of...
Three blocks on a frictionless surface are connected by massless strings, with M1 = 1.70kg, M2...
Three blocks on a frictionless surface are
connected by massless strings, with M1 = 1.70kg,
M2 = 2.10kg, and M3 = 3.20kg. Due to the
force F acting on M3, as shown, the system accelerates
to the right. Given that T1 is 3.50 Newtons, calculate
T2.
Mass m1 = 5.90−kg is connected to mass m2 = 3.95−kg by a string that passes...
Mass
m1 = 5.90−kg
is connected to mass
m2 = 3.95−kg
by a string that passes through a massless and frictionless
pulley. Mass
m2
is connected to mass
m3 = 3.00−kg
by a string.
,
Find the tension in the strings.
T1 =
N
T2 =
N
3. [-720 Points] DETAILS MY NOTES ASK YOUR TEACHE Mass m, - 5.90-kg is connected to mass m2 - 3.95-kg by a string that passes through a massless and frictionless pulley. Mass m2...
Also how do you figure it out?
In the figure, M2 has more mass than M1 and M1 has more mass than M3. The questions refer to the magnitudes of tensions and weights M2 12 T3 T1 T4 MI M3 There is friction between the horizontal plane and M2 (μk 0). M2 is observed to travel at a constant speed. Assume that the pulleys are frictionless and have negligible mass. Select the appropriate statements to complete the following sentences Equal...
options are TRUE, FALSE, GREATER THAN, LESS
THAN, EQUAL TO
In the figure, M2 has more mass than My and M1 has more mass than M3. The questions refer to the magnitudes of tensions and weights. M2 T3 MI M3 There is friction between the horizontal plane and M2 (uk # 0). M2 is observed to travel at a constant speed. Assume that the pulleys are frictionless and have negligible mass. Select the appropriate statements to complete the following sentences....
In the figure to the right, M2 has more mass than
M1 and M1 has more mass than M3.
The questions refer to the magnitudes of tensions and weights.
There is friction between the horizontal plane and M2
().
M2 is observed to travel at a constant speed. Assume
that the pulleys are frictionless and have negligible
mass. SEE THE PHOTO BELLOW!!!
options are True, False, Greater, Than Less, Than, or Equal
to
I need the correct answer in order to give full rating.
Thanks
In the figure to the right, M2 has more mass than M1 and M1 has
more mass than M3. The questions refer to the magnitudes of
tensions and weights. There
is friction between the horizontal plane and M2 (mu_k not equal to
0). M2 is observed to travel at a constant speed. Assume that the
pulleys are frictionless and have negligible mass. Select the
appropriate symbol for each...
Mass m1 = 4.50−kg is connected to mass m2
= 4.55−kg by a string that passes through a massless and
frictionless pulley. Mass m2 is connected to mass
m3 = 3.00−kg by a string.
Find the tension in the strings.
T1 =
N
T2 =
N
TA T. m, m1 T2 N m
Three blocks on a frictionless surface are
connected by massless strings, with M1 = 1.70kg,
M2 = 2.10kg, and M3 = 3.20kg. Due to the
force F acting on M3, as shown, the system accelerates
to the right. Given that T1 is 3.50 Newtons, calculate
T2.
Mass
m1 = 5.90−kg
is connected to mass
m2 = 3.95−kg
by a string that passes through a massless and frictionless
pulley. Mass
m2
is connected to mass
m3 = 3.00−kg
by a string.
,
Find the tension in the strings.
T1 =
N
T2 =
N
3. [-720 Points] DETAILS MY NOTES ASK YOUR TEACHE Mass m, - 5.90-kg is connected to mass m2 - 3.95-kg by a string that passes through a massless and frictionless pulley. Mass m2...
