Homework Answers
Add Answer to:

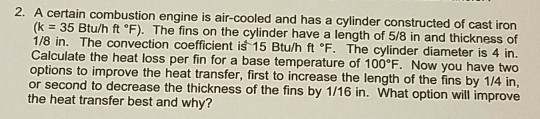

2. A certain combustion engine is air-cooled and has a cylinder constructed of cast iron (k...

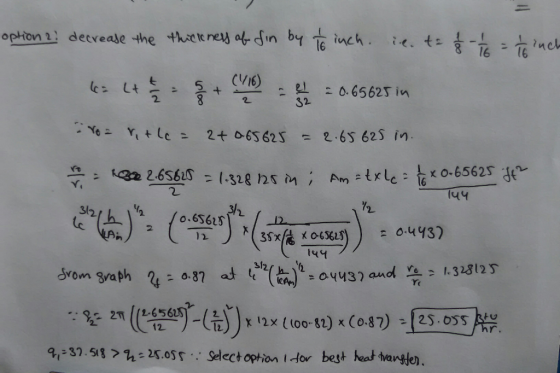

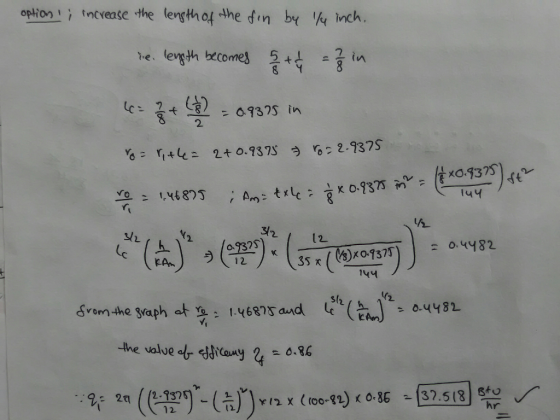

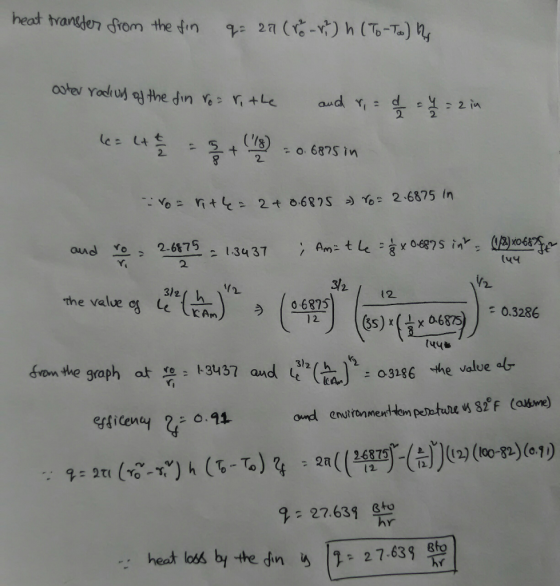

2. Straight metal fins (k = 100 W/m°C) with rectangular profile protrude from a l m...
2. Straight metal fins (k = 100 W/m°C) with rectangular profile protrude from a l m high wall. The wall is maintained at 200 °C and exposed to a convection environment at 25°C with h = 20 W/m² °C. The fins have a length (L) of 8 cm and a thickness (1) of 3 mm. The space between two adjacent fins is 2 mm. Calculate the following for per unit depth of wall: (a) the fin efficiency, (8 points) (b)...
please show work use chart to get correct length and fin efficiency 4. Straight metal fins...
please show work
use chart to get correct length and fin efficiency
4. Straight metal fins (k = 45 W/m °C) of triangular profile installed on a l m 1 m wall. The wall is maintained at 200 °C and are exposed to a convection environment at 25 °C with h = 204 W/m² °C. The fins have a length of 8 mm and a thickness of 2 mm. The space between two adjacent fins is 3 mm. Calculate (a)...
hw FinFan fin efficiency Score: 0/5 0/1 answered Work saved Submit and End VO Question 1...
hw FinFan fin efficiency Score: 0/5 0/1 answered Work saved Submit and End VO Question 1 < > 0/5 pts 3 Details <p A horizontal tube-bundle air-cooled exchanger is used to condense steam at 255 F and has the following specifications: Tube Bundle: Steam is flowing inside the tubes tube od 1 in ; tube id 0.834 in ; tube pitch = 2 in (square pitch); k = 26 btu/ft-hr-F There are 18 tube rows with each row containing 72...
blem 4 (20 pts) A square chip that is 12.7mm on a side has a maximum allowable chip operating temperature -75°C. To dissipate heat produced in the chip, a 4 x 4 array of copper (k-400 W/m.K) pin fins...
blem 4 (20 pts) A square chip that is 12.7mm on a side has a maximum allowable chip operating temperature -75°C. To dissipate heat produced in the chip, a 4 x 4 array of copper (k-400 W/m.K) pin fins is proposed to be etallurgically joined to the outer surface of the chip. The convection coefficient is h-250 W/m'K and ambient air mperature isTo-20°C. The pin fin dimeter is D,-1.5mm and length is L,-16mm. Assuming steady-state uniform chip temperature Te-75°C and...
A 5-cm-diameter shaft rotates at 4500 rpm in a 15-cm long, 8-cm-outer-diameter cast iron bearing (k...
A 5-cm-diameter shaft rotates at 4500 rpm in a 15-cm long, 8-cm-outer-diameter cast iron bearing (k =70 W/m.K) with a uniform clearance of 0.6 mm filled wwith tubricating oil (u 0.03 N.s/m2 and k 0.14 W/m.K). The bearing is cooled externally by a liquid, and its outer surface is maintained at 40°C. Disregarding heat conduction through the shaft and assuming one- dimensional heat transfer, determine (a) the rate of heat transfer to the coolant, (b) the sutacs temperature of the...
INTERNAL COMBUSTION ENGINES Practice Problems ME 436 A 3 cylinder, 2.7 liter SI engine operates on...
INTERNAL COMBUSTION ENGINES Practice Problems ME 436 A 3 cylinder, 2.7 liter SI engine operates on a 4 stroke cycle at 3300 RPM with a compression ratio of 8.6:1. At the start of the compression stroke, the temperature is 47°C and the pressure is 82kPa. Assume 3% residual gases. The mechanical efficiency is 81%, combustion efficiency is 96%, and the air-fuel ratio is 16.3, and the fuel heating value is 43,000 kJ/kg. The combustion process starts at TDC and is...
2. An aluminum cylinder has a radius (ra) of 3 cm and al n cylinder has...
2. An aluminum cylinder has a radius (ra) of 3 cm and al n cylinder has a radius (11) of 3 cm and a length (L) of 10 cm. The cylinder is covered with an additional insulation laver which has the critical insulation thickness The insulation surface is exposed to ambient air with the convection heat trans coefficient of h = 5 W/m2.°C. The surface temperature (T1) of aluminum cylinder is 100 The ambient air temperature (T..) is 25 °C....
Problem 3 (30): Steam at Too,1 340 °C flows in a cast iron pipe [k- 80 W/m.°C] whose inner and outer diameter are Di 6 cm and D2 -8 cm, respectively. The pipe is covered with a 4-cm thick glass wool...
Problem 3 (30): Steam at Too,1 340 °C flows in a cast iron pipe [k- 80 W/m.°C] whose inner and outer diameter are Di 6 cm and D2 -8 cm, respectively. The pipe is covered with a 4-cm thick glass wool insulation [k-0.05 W/ m°C]. Heat is lost to the surroundings at Too,2 - 21°C by natural convection and radiation, with a combined heat transfer coefficient of h- 18 W/m2 °C. Taking the heat transfer coefficient inside the pipe to...
1-1. List five differences between SI engines and CI engines. 1-2. A four-stroke cycle engine mayor...
1-1. List five differences between SI engines and CI engines. 1-2. A four-stroke cycle engine mayor may not have a pressure boost (supercharger, tur in the intake system. Why must a two-stroke cycle engine always have an intake 1-3. List two advantages of a two-stroke cycle engine over a four-stroke cycle engine. List two advantages of a four-stroke cycle engine over a two-stroke cycle engine. 1-4. (a) Why do most very small engines operate on a two-stroke cycle? (b) Why...
03 Multipart Questions Conferences It is proposed to air-cool the cylinders of a combustion chamber by...
03 Multipart Questions Conferences It is proposed to air-cool the cylinders of a combustion chamber by joining an aluminum casing with annular fins ( k= WileyPLUS Sup- port 215 W/m-K) to the cylinder wall k = Collaborations 50 W/m K). The air is at 320 K and the corresponding convection coefficient is 100 W/m2-K. Although heating at the inner surface is periodic, it is reasonable to assume steady-state conditions with a time-averaged heat flux of Chat Browse NBC 1 x...
2. Straight metal fins (k = 100 W/m°C) with rectangular profile protrude from a l m high wall. The wall is maintained at 200 °C and exposed to a convection environment at 25°C with h = 20 W/m² °C. The fins have a length (L) of 8 cm and a thickness (1) of 3 mm. The space between two adjacent fins is 2 mm. Calculate the following for per unit depth of wall: (a) the fin efficiency, (8 points) (b)...
please show work
use chart to get correct length and fin efficiency
4. Straight metal fins (k = 45 W/m °C) of triangular profile installed on a l m 1 m wall. The wall is maintained at 200 °C and are exposed to a convection environment at 25 °C with h = 204 W/m² °C. The fins have a length of 8 mm and a thickness of 2 mm. The space between two adjacent fins is 3 mm. Calculate (a)...
hw FinFan fin efficiency Score: 0/5 0/1 answered Work saved Submit and End VO Question 1 < > 0/5 pts 3 Details <p A horizontal tube-bundle air-cooled exchanger is used to condense steam at 255 F and has the following specifications: Tube Bundle: Steam is flowing inside the tubes tube od 1 in ; tube id 0.834 in ; tube pitch = 2 in (square pitch); k = 26 btu/ft-hr-F There are 18 tube rows with each row containing 72...
blem 4 (20 pts) A square chip that is 12.7mm on a side has a maximum allowable chip operating temperature -75°C. To dissipate heat produced in the chip, a 4 x 4 array of copper (k-400 W/m.K) pin fins is proposed to be etallurgically joined to the outer surface of the chip. The convection coefficient is h-250 W/m'K and ambient air mperature isTo-20°C. The pin fin dimeter is D,-1.5mm and length is L,-16mm. Assuming steady-state uniform chip temperature Te-75°C and...
A 5-cm-diameter shaft rotates at 4500 rpm in a 15-cm long, 8-cm-outer-diameter cast iron bearing (k =70 W/m.K) with a uniform clearance of 0.6 mm filled wwith tubricating oil (u 0.03 N.s/m2 and k 0.14 W/m.K). The bearing is cooled externally by a liquid, and its outer surface is maintained at 40°C. Disregarding heat conduction through the shaft and assuming one- dimensional heat transfer, determine (a) the rate of heat transfer to the coolant, (b) the sutacs temperature of the...
INTERNAL COMBUSTION ENGINES Practice Problems ME 436 A 3 cylinder, 2.7 liter SI engine operates on a 4 stroke cycle at 3300 RPM with a compression ratio of 8.6:1. At the start of the compression stroke, the temperature is 47°C and the pressure is 82kPa. Assume 3% residual gases. The mechanical efficiency is 81%, combustion efficiency is 96%, and the air-fuel ratio is 16.3, and the fuel heating value is 43,000 kJ/kg. The combustion process starts at TDC and is...
2. An aluminum cylinder has a radius (ra) of 3 cm and al n cylinder has a radius (11) of 3 cm and a length (L) of 10 cm. The cylinder is covered with an additional insulation laver which has the critical insulation thickness The insulation surface is exposed to ambient air with the convection heat trans coefficient of h = 5 W/m2.°C. The surface temperature (T1) of aluminum cylinder is 100 The ambient air temperature (T..) is 25 °C....
Problem 3 (30): Steam at Too,1 340 °C flows in a cast iron pipe [k- 80 W/m.°C] whose inner and outer diameter are Di 6 cm and D2 -8 cm, respectively. The pipe is covered with a 4-cm thick glass wool insulation [k-0.05 W/ m°C]. Heat is lost to the surroundings at Too,2 - 21°C by natural convection and radiation, with a combined heat transfer coefficient of h- 18 W/m2 °C. Taking the heat transfer coefficient inside the pipe to...
1-1. List five differences between SI engines and CI engines. 1-2. A four-stroke cycle engine mayor may not have a pressure boost (supercharger, tur in the intake system. Why must a two-stroke cycle engine always have an intake 1-3. List two advantages of a two-stroke cycle engine over a four-stroke cycle engine. List two advantages of a four-stroke cycle engine over a two-stroke cycle engine. 1-4. (a) Why do most very small engines operate on a two-stroke cycle? (b) Why...
03 Multipart Questions Conferences It is proposed to air-cool the cylinders of a combustion chamber by joining an aluminum casing with annular fins ( k= WileyPLUS Sup- port 215 W/m-K) to the cylinder wall k = Collaborations 50 W/m K). The air is at 320 K and the corresponding convection coefficient is 100 W/m2-K. Although heating at the inner surface is periodic, it is reasonable to assume steady-state conditions with a time-averaged heat flux of Chat Browse NBC 1 x...
