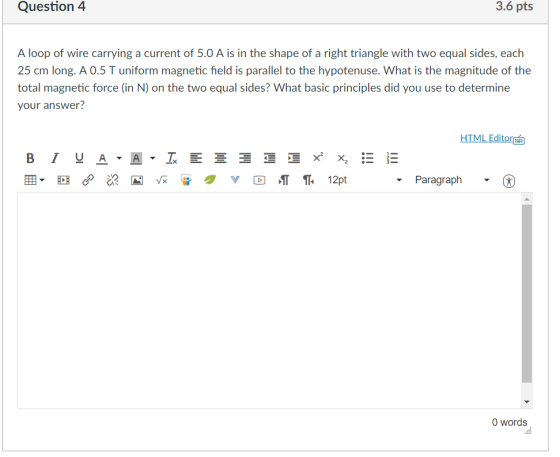

Question 4 3.6 pts A loop of wire carrying a current of 5.0 A is in the shape of a right triangle with two equal sides, each 25 cm long. A 0.5 T uniform magnetic field is parallel to the hypotenuse. What is the magnitude of the total magnetic force (in N) on the two equal sides? What basic principles did you use to determine your answer? HTMLEditor Paragraph ? 0 wordsplease show work

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

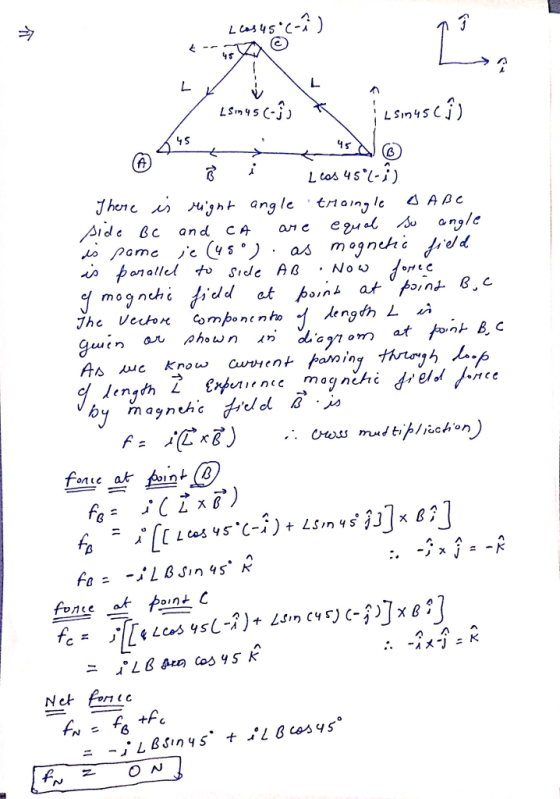

45 LSmisCj) 4S 4s i n Net e

0 0
