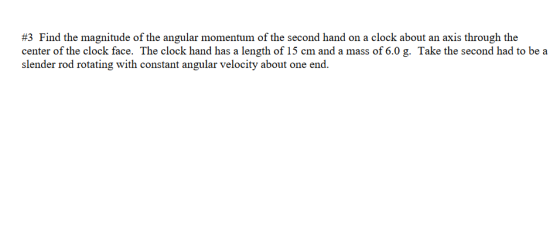

#3 Find the magnitude of the angular momentum of the second hand on a clock about an axis through the center of the clock face. The clock hand has a length of 15 cm and a mass of 6.0 g. Take the second had to bea slender rod rotating with constant angular velocity about one end.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Arr second hand. CRod)ot clock. ω︸.9F Anqular momentam To

timeperiod of second hand of clock is T = 60 s

moment of inertia of second hand about axis passing through center and perpendicular to the face of clock is I = 1/3(M.L2)
