A capacitor of capacitance C1 = 5µF is charged to a potential difference of 100 V....
A capacitor of capacitance C1 = 5µF is charged to a
potential difference of 100 V. The terminals of the charged
capacitorare then disconnected from the voltage source and
connected to the terminals of an uncharged 2 µF capacitor
(C2).
(a) Compute the original charge on capacitor C1.
(b) Compute the final potential difference across the two-capacitor system.
(c) Compute the final energy of the system.
(d) Compute the decrease in energy when the capacitors are connected.

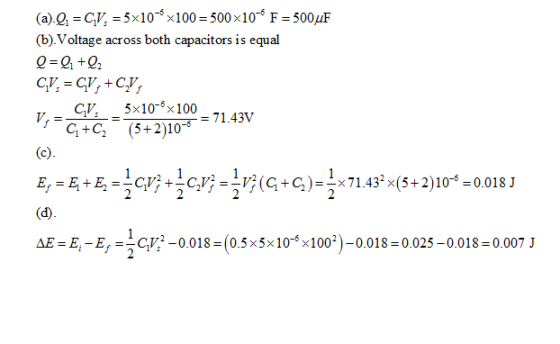

Homework Answers
Add Answer to:
A capacitor of capacitance C1 = 5µF is charged to a
potential difference of 100 V....
A 25.0 μF capacitor is charged to a potential difference of 900 V . The terminals...
A 25.0 μF capacitor is charged to a potential difference of 900 V . The terminals of the charged capacitor are then connected to those of an uncharged 8.00 μF capacitor. *Please write down all steps in your calculations, including a diagram. Please be sure to explain what happens to both the charge and the voltage when the capacitors are connected. A) Compute the original charge of the system. B) Compute the final potential difference across capacitor C) Compute the...
A 25.0 μF capacitor is charged to a potential difference of 850 V . The terminals...
A 25.0 μF capacitor is charged to a potential difference of 850 V . The terminals of the charged capacitor are then connected to those of an uncharged 11.0 μF capacitor. A) Compute the original charge of the system. B) Compute the final potential difference across capacitor. C) Compute the final energy of the system. D) Compute the decrease in energy when the capacitors are connected.
A 14-µF capacitor and a capacitor of unknown capacitance are both charged to 3.25 kV. After...
A 14-µF capacitor and a capacitor of unknown capacitance are both charged to 3.25 kV. After charging, the two capacitors are disconnected from the voltage source. The capacitors are then connected to each other--positive plate to negative plate and negative plate to positive plate. The final voltage across the terminals of the 14-µF capacitor is 1.00 kV. a)What is the capacitance of the second capacitor? b)How much energy is dissipated when the connection was made?
S the wire? 28-5. A 20-uf capacitor is charged to a potential difference of 1000 volts....
S the wire? 28-5. A 20-uf capacitor is charged to a potential difference of 1000 volts. The terminals of the charged capacitor are then connected to those of an un- charged 5-uf capacitor. Compute (a) the original charge of the system, (b) the final potential difference across each capacitor, (C) the final energy of the system, (d) the decrease in energy when the capacitors are connected.
16.14 Two capacitors are connected in series with an 30 V battery. The capacitance of capacitor...
16.14 Two capacitors are connected in series with an 30 V battery. The capacitance of capacitor C1 is 12 µF and the capacitor C2 is unknown. The charge on capacitor C2 is 140 µC. a) What is the equivalent capacitance? b) What is the capacitance of capacitor C2? c) What is the voltage of each capacitor?
Two capacitors, one that has a capacitance of 4 µF and one that has a capacitance...
Two capacitors, one that has a capacitance of 4 µF and one that has a capacitance of 12 µF are first discharged and then are connected in series. The series combination is then connected across the terminals of a 14-V battery. Next, they are carefully disconnected so that they are not discharged and they are then reconnected to each other--positive plate to positive plate and negative plate to negative plate. (a) Find the potential difference across each capacitor after they...
Capacitors C1=10μF and C2=20μF are each charged to 14 V , then disconnected from the battery...
Capacitors C1=10μF and C2=20μF are each charged to 14 V , then disconnected from the battery without changing the charge on the capacitor plates. The two capacitors are then connected in parallel, with the positive plate of C1connected to the negative plate of C2 and vice versa. (a) Afterward, what is the charge on each capacitor? (b) What is the potential difference across each capacitor?
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the...
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the capacitor is charged, the battery is disconnected. The capacitor is then connected in parallel with a second capacitor with capacitance C2 8uF. The second capacitor is initially uncharged. Determine the charge on each capacitor after they have been connected
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the...
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the capacitor is charged, the battery is disconnected. The capacitor is then connected in parallel with a second capacitor with capacitance C2 8pF. The second capacitor is initially uncharged. Determine the charge on each capacitor after they have been connected
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the...
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the capacitor is charged, the battery is disconnected. The capacitor is then connected in parallel with a second capacitor with capacitance C2 8uF. The second capacitor is initially uncharged. Determine the charge on each capacitor after they have been connected
S the wire? 28-5. A 20-uf capacitor is charged to a potential difference of 1000 volts. The terminals of the charged capacitor are then connected to those of an un- charged 5-uf capacitor. Compute (a) the original charge of the system, (b) the final potential difference across each capacitor, (C) the final energy of the system, (d) the decrease in energy when the capacitors are connected.
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the capacitor is charged, the battery is disconnected. The capacitor is then connected in parallel with a second capacitor with capacitance C2 8uF. The second capacitor is initially uncharged. Determine the charge on each capacitor after they have been connected
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the capacitor is charged, the battery is disconnected. The capacitor is then connected in parallel with a second capacitor with capacitance C2 8pF. The second capacitor is initially uncharged. Determine the charge on each capacitor after they have been connected
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the capacitor is charged, the battery is disconnected. The capacitor is then connected in parallel with a second capacitor with capacitance C2 8uF. The second capacitor is initially uncharged. Determine the charge on each capacitor after they have been connected
