Two coils of 1000 turns and 2000 turns are tightly wound over the wooden ring which...

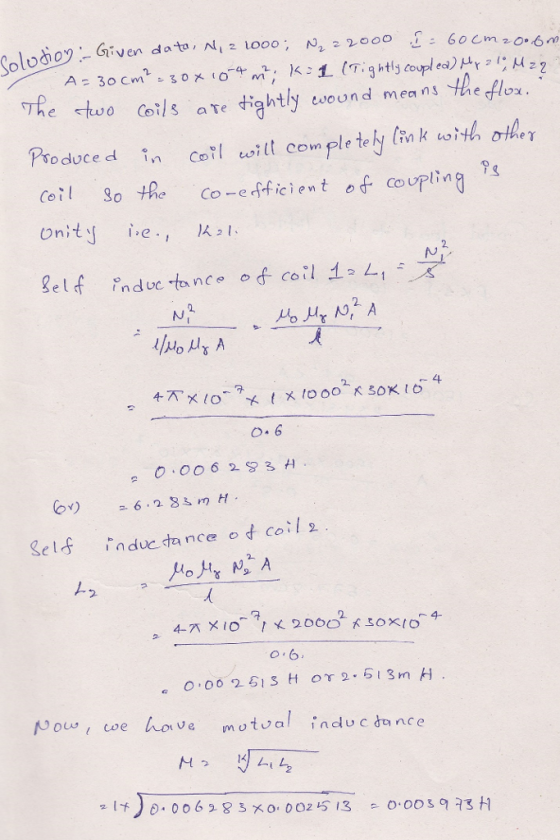

Two coils of 1000 turns and 2000 turns are tightly wound over the wooden ring which has a mean length of 60cm and a cross sectional area of 30cm2. Find the mutual inductance between two coils.
Homework Answers
Add Answer to:
Two coils of 1000 turns and 2000 turns are tightly wound over
the wooden ring which...
The two coils A and B wound coaxially on an insulating cylinder. It will be evident...
The two coils A and B wound coaxially on an insulating cylinder. It will be evident that the fluxes produced by a current i through the two coils are in the same direction, and the coils are said to be cumulatively coupled. If the direction of the current in B relative to that in A is reverse, then coils are said to be differential coupling. Suppose A and B to have self- inductances LA and LB henrys respectively and a...
6) Figure Q4(b) shows a coils of 200 turns. The coil is uniformly wound around a...
6) Figure Q4(b) shows a coils of 200 turns. The coil is uniformly wound around a wooden ring with a mean circumference of 600mm and cross-section area of 500mm%. The current flowing into the call is 4A. (Permeability of free space fle = 4ex 10' Hm'. Calculate: L. the magnetic field strength (2 marks) flux density (1 marks) total flux (1 marks) turn I meter Figure Q4 (b) A magnetic circuit made of cast steel is arranged as in Figure...
1. a. One solenoid is centered inside another. The outer one has a length of 47.0...
1. a. One solenoid is centered inside another. The outer one has a length of 47.0 cm and contains 6700 coils, while the coaxial inner solenoid is 5.00 cm long and 0.170 cm in diameter and contains 17.0 coils. What is the mutual inductance of these solenoids? The current in the outer solenoid is changing at 38.0 A/s. b. Find the emf induced in the inner solenoid. c. A toroidal solenoid has a mean radius of 18.0 cm and a...
a. A coil of wire with 209 circular turns of radius 3.10 cm is in a...
a. A coil of wire with 209 circular turns of radius 3.10 cm is in a uniform magnetic field along the axis of the coil. The coil has R = 41.5 Ω . At what rate, in teslas per second, must the magnetic field be changing to induce a current of 0.149 A in the coil? b. A closely wound rectangular coil of 90.0 turns has dimensions of 30.0 cm by 47.0 cm . The plane of the coil is...
Ex 5 Assume that N turns of wire are tightly wound on a toroidal frame of a rectangular cross section with dimensions as shown in Figure. Then, assuming the permeability of the medium to be Ho, find...
Ex 5 Assume that N turns of wire are tightly wound on a toroidal frame of a rectangular cross section with dimensions as shown in Figure. Then, assuming the permeability of the medium to be Ho, find the self-inductance of the toroidal coil. FIGURE 6-23 A closely wound toroidal coil
Ex 5 Assume that N turns of wire are tightly wound on a toroidal frame of a rectangular cross section with dimensions as shown in Figure. Then, assuming the permeability...
A solenoidal coil with 30 turns of wire is wound tightly around another coil with 300...
A solenoidal coil with 30 turns of wire is wound tightly around another coil with 300 turns. The inner solenoid is 24.0 cm long and has a diameter of 2.30 cm . At a certain time, the current in the inner solenoid is 0.150 A and is increasing at a rate of 1600 A/s . For this time, calculate the average magnetic flux through each turn of the inner solenoid.For this time, calculate the mutual inductance of the two solenoids;For...
A solenoidal coil with 29 turns of wire is wound tightly around another coil with 310...
A solenoidal coil with 29 turns of wire is wound tightly around another coil with 310 turns. The inner solenoid is 24.0 cm long and has a diameter of 2.00 cm . At a certain time, the current in the inner solenoid is 0.130 A and is increasing at a rate of 1800 A/s . A) For this time, calculate the average magnetic flux through each turn of the inner solenoid. B) For this time, calculate the mutual inductance of...
A wooden ring whose mean diameter is 14.5cm is wound with a closely spaced toroidal winding...
A wooden ring whose mean diameter is 14.5cm is wound with a closely spaced toroidal winding of 595 turns. Part A Compute the magnitude of the magnetic field at the center of the cross section of the windings when the current in the windings is 0.635A .
Helmholtz coils are two circular coils with radius R, each wound with N turns of wire...
Helmholtz coils are two circular coils with radius R, each wound with N turns of wire carrying a current I, circulating in the same direction in both coils. The coils are placed distance R apart. The Helmholtz coil produce a very uniform magnetic field in the region between them. Obtain an expression for the magnitude of the magnetic field at point P, which is midway between the coils.
Two air-cored coils are disposed relatively to each other so that 60% of the flux in...
Two air-cored coils are disposed relatively to each other so that 60% of the flux in one coil links all the turns of the other coil. Each coil has a mean diameter of 2cm and a length of 50 cm. If there are 2000 turns of wire on one coil, calculate the number of turns required on the other coil to give a mutual inductance of 20 mH
The two coils A and B wound coaxially on an insulating cylinder. It will be evident that the fluxes produced by a current i through the two coils are in the same direction, and the coils are said to be cumulatively coupled. If the direction of the current in B relative to that in A is reverse, then coils are said to be differential coupling. Suppose A and B to have self- inductances LA and LB henrys respectively and a...
6) Figure Q4(b) shows a coils of 200 turns. The coil is uniformly wound around a wooden ring with a mean circumference of 600mm and cross-section area of 500mm%. The current flowing into the call is 4A. (Permeability of free space fle = 4ex 10' Hm'. Calculate: L. the magnetic field strength (2 marks) flux density (1 marks) total flux (1 marks) turn I meter Figure Q4 (b) A magnetic circuit made of cast steel is arranged as in Figure...
Ex 5 Assume that N turns of wire are tightly wound on a toroidal frame of a rectangular cross section with dimensions as shown in Figure. Then, assuming the permeability of the medium to be Ho, find the self-inductance of the toroidal coil. FIGURE 6-23 A closely wound toroidal coil
Ex 5 Assume that N turns of wire are tightly wound on a toroidal frame of a rectangular cross section with dimensions as shown in Figure. Then, assuming the permeability...
