A 2.2kg metal spanner of length 0.40m (Is = 0.3ML2) is used to remove a bolt...

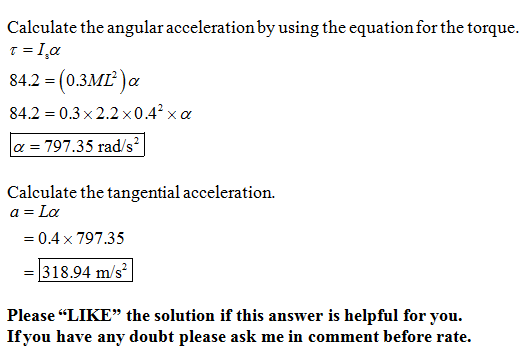

A 2.2kg metal spanner of length 0.40m (Is = 0.3ML2) is used to remove a bolt that suddenly becomes free to rotate. If the net torque caused by the hand pushing the spanner at that point is 84.2 N-m, find the angular acceleration and tangential acceleration
Homework Answers
....
Add Answer to:
A 2.2kg metal spanner of length 0.40m (Is =
0.3ML2) is used to remove a bolt...
