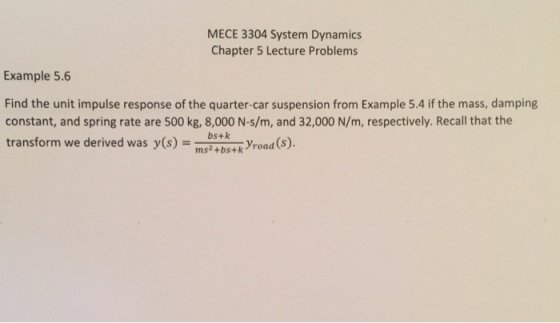

MECE 3304 System Dynamics Chapter 5 Lecture Problems Example 5.6 Find the unit impulse response of the quarter-car suspension from Example 5.4 if the mass, damping constant, and spring rate are 500 kg, 8,000 N-s/m, and 32,000 N/m, respectively. Recall that the transform we derived wasy(s)road (s) bs+k ms2+bs+k
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

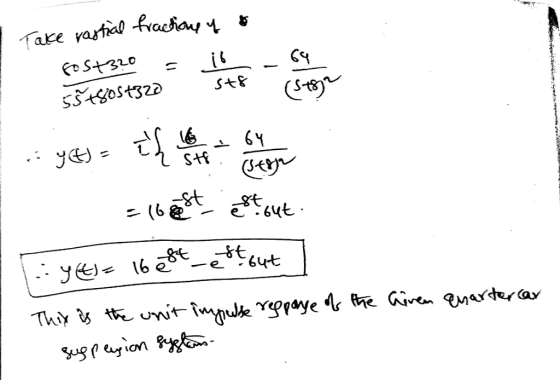

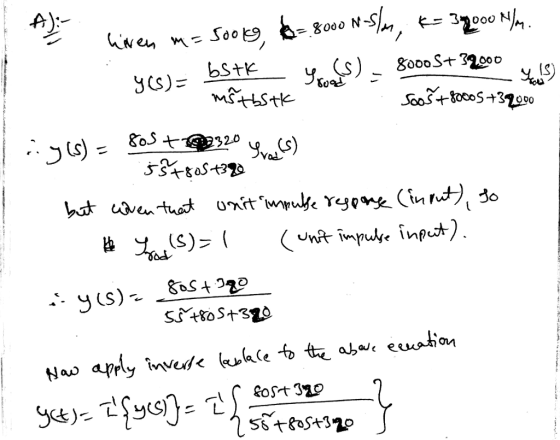

Answer #1

SAC

0 0
Add a comment
