A point source of light is located 6.6 m below the surface of a large pool...

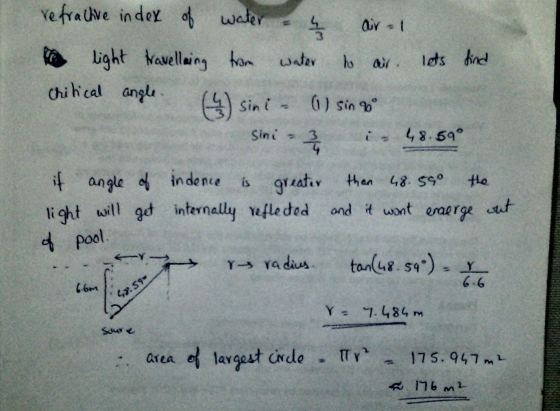

A point source of light is located 6.6 m below the surface of a large pool of water. Find the area of the largest circle on the pool's surface through which light coming directly from the source can emerge.
a-
Homework Answers
Add Answer to:
A point source of light is located 6.6 m below the surface of a
large pool...
A point source of light is submerged 2.1 m below the surface of a lake and...
A point source of light is submerged 2.1 m below the surface of a lake and emits rays in all directions. On the surface of the lake, directly above the source, the area illuminated is a circle. What is the maximum radius that this circle could have? Take the refraction index of water to be 1.333.
A point source of light is submerged 2.90 m below the surface of a lake and...
A point source of light is submerged 2.90 m below the surface of a lake and emits rays in all directions. On the surface of the lake, directly above the source, the area illuminated is a circle. What is the maximum radius that this circle could have?
A point source of light is 115 cm below the surface of a body of water....
A point source of light is 115 cm below the surface of a body of water. Find the diameter of the circle at the surface through which light emerges from the water. Water has an index of refraction of 1.33.
A small source of light at the bottom of a pool filled to a 1 m...
A small source of light at the bottom of a pool filled to a 1 m
height is viewed from air above. Rays of light reflected at the top
surface outline a circle 4 m in diameter on the
bottom surface. (side view above) What is the
refractive index of the fluid?
height Light diameter of reflected light A small source of light at the bottom of a pool filled to a 1 m height is viewed from air above....
A rover lands on Titan and drops a point source of light into a lake of...
A rover lands on Titan and drops a point source of light into a lake of benzene (n = 1.8). The light source lands 80 cm below the surface. What is the diameter (in cm) of the circle at the surface through which light emerges from the water? Please explain.
A light source at the bottom of a 4.7-m-deep water pool sends a light ray up...
A light source at the bottom of a 4.7-m-deep water pool sends a light ray up at an angle so that the ray strikes the surface 1.6 m from the point straight above the light source. What is the emerging ray's angle (in degrees) with the normal in air? °
A small source of light at the bottom of a pool filled to a 1 m...
A small source of light at the bottom of a pool filled to a 1 m height is viewed from air above. Rays of light reflected at the top surface outline a circle 4 m in diameter on the bottom surface. What is the refractive index of the fluid?
An expensive spotlight is located at the bottom of a gold-plated swimming pool of depth d = 1.00 m (see Figure). Determine the diameter of the circle from which light emerges from the tranquil surface of the pool.
An expensive spotlight is located at the bottom of a gold-plated swimming pool of depth d = 1.00 m (see Figure). Determine the diameter of the circle from which light emerges from the tranquil surface of the pool.
9) A small light fixture is on the bottom of a swimming pool,0.75 m below the...
9) A small light fixture is on the bottom of a swimming pool,0.75 m below the surface. The lightemerging from the water forms a circle on the still water surface.What is the diameter of this circle? m
PRINTER VERSION 4 Аск Chapter 26, Problem 028 A point source of light is submerged 3.0...
PRINTER VERSION 4 Аск Chapter 26, Problem 028 A point source of light is submerged 3.0 m below the surface of a lake and emits rays in all directions. On the surface of the lake, directly above the source, the area illuminated circle. What is the maximum radius that this cirde could have? Take the refraction index of water to be 1.333. Number Units the tolerance is +/-5% SHOW HINT
A small source of light at the bottom of a pool filled to a 1 m
height is viewed from air above. Rays of light reflected at the top
surface outline a circle 4 m in diameter on the
bottom surface. (side view above) What is the
refractive index of the fluid?
height Light diameter of reflected light A small source of light at the bottom of a pool filled to a 1 m height is viewed from air above....
PRINTER VERSION 4 Аск Chapter 26, Problem 028 A point source of light is submerged 3.0 m below the surface of a lake and emits rays in all directions. On the surface of the lake, directly above the source, the area illuminated circle. What is the maximum radius that this cirde could have? Take the refraction index of water to be 1.333. Number Units the tolerance is +/-5% SHOW HINT
