Air is compressed steadily and adiabatically from 17 C and 97 kPa to 276 C and...

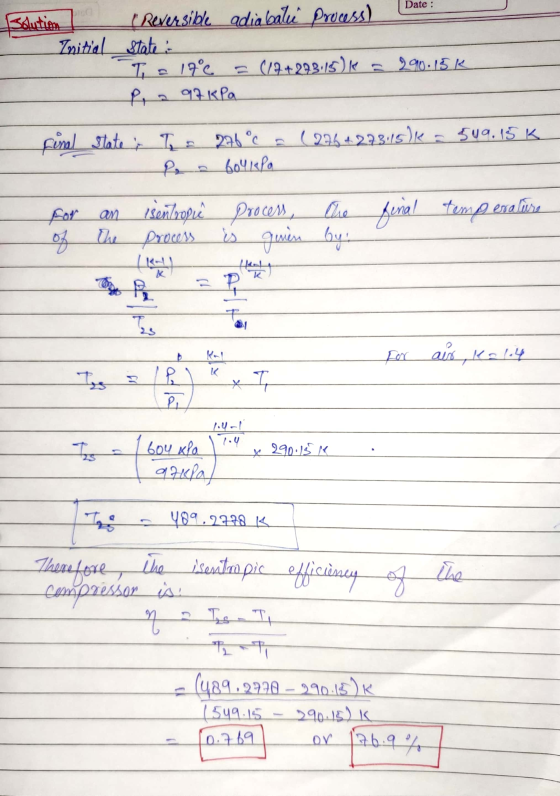

Air is compressed steadily and adiabatically from 17 C and 97 kPa to 276 C and 604 kPa. Assuming constant specific heats for air at room temperature, what is the isentropic efficiency of the compressor?
Homework Answers
Add Answer to:
Air is compressed steadily and adiabatically from 17 C and 97
kPa to 276 C and...
Air is compressed by an adiabatic compressor from 95 kPa and 27°C to 600 kPa and...
Air is compressed by an adiabatic compressor from 95 kPa and 27°C to 600 kPa and 277°C. Assuming variable specific heats and neglecting the changes in kinetic and potential energies, determine (a) the isentropic efficiency of the compressor and (b) the exit temperature of air if the process were reversible. b) Texit
Air is compressed steadily by a reversible compressor from 100 kPa and 300 K to 900...
Air is compressed steadily by a reversible compressor from 100
kPa and 300 K to 900 kPa by a 10-kW motor. Assume air is both ideal
and has constant specific heat capacity values determined at room
temperature from Table A-2 at room temperature (300 K).
a) Determine the mass flow rate through the compressor if the
process is isentropic. ( find and identify the work per unit
mass)
b) polytropic with n = 1.2
c) isothermal
d) ideal two-stage polytropic...
Air is compressed steadily by a reversible compressor from an inlet state of 100 kPa and...
Air is compressed steadily by a reversible compressor from an inlet state of 100 kPa and 300 K to an exit pressure of 900 kPa. Determine the compressor work per unit mass for (a) isentropic compression with k 1.4, (b) a compressor with 85% isentropic efficiency, (c) two-stage compression (100 kPa to 300 kPa, and 300 kPa to 900 kPa) with intercooling with an isentropic efficiency of 85% for both compressors. (50 points) 2.
Air enters an adiabatic compressor at 17 Cand 90 KPa with a mass flow rate of...
Air enters an adiabatic compressor at 17 Cand 90 KPa with a mass flow rate of 0.2 Kg/s and exits at 400 KPa. The compressor has an isentropic effeciency of 88 % assuming constant specific heats at room temperature determine: A) The power input to the compressor B) The total rate of exergy destroyed during the process C) The second law efficiency of the compressor D) Draw the actual and isentropic process on T-5 diagram
Air is compressed by an adiabatic compressor from P2=100 kPa to P2=500 kPa. T2=380 K and...
Air is compressed by an adiabatic compressor from P2=100 kPa to P2=500 kPa. T2=380 K and T2=650 K. Air is an ideal gas with variable specific heats. Determine a) The exit temperature of the air for the isentropic case. Each of the above temperatures and pressures are given as actual. b) The efficiency of the compressor.
Consider a closed Brayton cycle heat-engine. Air is compressed from 300K, 100 kPa to 580K, 700...
Consider a closed Brayton cycle heat-engine. Air is compressed from 300K, 100 kPa to 580K, 700 kPa. The air is heated at the rate of 950 kJ/kg before it enters the turbine. The isentropic efficiency of the turbine is 86%. Determine: a) the fraction of the turbine shaft power used to drive the compressor, and b) the thermal efficiency of the engine. Sketch the prooess on a T-s diagram. Do the calculation first with variable specific heats and then repeat...
Air, initially at 300 K and 100 kPa, is compressed adiabatically in a steady flow compressor...
Air, initially at 300 K and 100 kPa, is compressed adiabatically in a steady flow compressor to 600 K and 500 kPa. a) Perform the necessary calculations to show that the process is irreversible b) Compare the change in energy carried by the air due to the process. Briefly comment. c)How would the comparison in part (b) look like if the process were reversible? TO answer this question, you can either use equations or briefly explain. d) Calculate the isentropic...
Humid air at 101 kPa, 25°C, 90% relative humidity is compressed in a steady-flow, isentropic compressor...
Humid air at 101 kPa, 25°C, 90% relative humidity is compressed in a steady-flow, isentropic compressor to 800 kPa. (a) What is specific humidity of the air? (b) What is the relative humidity of the air exiting the compressor? (c) What is the change in enthalpy of the dry air during this process? (d) What is the change in enthalpy of the water vapor, per unit dry air, during this process? Express your answer in kilojoules per kilogram of dry...
7.35. Methane is compressed adiabatically in a pipeline pumping station from 3500 kPa and 35°C to...
7.35. Methane is compressed adiabatically in a pipeline pumping station from 3500 kPa and 35°C to 5500 kPa at a rate of 1.5 kg mol⋅s−1. If the compressor efficiency is 0.78, what is the power requirement of the compressor and what is the discharge temperature of the methane?
Air is compressed steadily by a reversible compressor from an inlet state of 100 kPa and...
Air is compressed steadily by a reversible compressor from an inlet state of 100 kPa and 300 K to an exit pressure of 900 kPa. if the volume flow rate = 1 m/sec Determine: the compressor power (kW) for isentropic compression with k = 1.4 Choose... the compressor power (kW) for polytropic compression with n = 1.3 Choose.. the compressor power (kW) for ideal two stage compression with intercooling with a polytropic exponent of 1.3 Choose... the compressor power (kW)...
Air is compressed by an adiabatic compressor from 95 kPa and 27°C to 600 kPa and 277°C. Assuming variable specific heats and neglecting the changes in kinetic and potential energies, determine (a) the isentropic efficiency of the compressor and (b) the exit temperature of air if the process were reversible. b) Texit
Air is compressed steadily by a reversible compressor from 100
kPa and 300 K to 900 kPa by a 10-kW motor. Assume air is both ideal
and has constant specific heat capacity values determined at room
temperature from Table A-2 at room temperature (300 K).
a) Determine the mass flow rate through the compressor if the
process is isentropic. ( find and identify the work per unit
mass)
b) polytropic with n = 1.2
c) isothermal
d) ideal two-stage polytropic...
Air is compressed steadily by a reversible compressor from an inlet state of 100 kPa and 300 K to an exit pressure of 900 kPa. Determine the compressor work per unit mass for (a) isentropic compression with k 1.4, (b) a compressor with 85% isentropic efficiency, (c) two-stage compression (100 kPa to 300 kPa, and 300 kPa to 900 kPa) with intercooling with an isentropic efficiency of 85% for both compressors. (50 points) 2.
Air enters an adiabatic compressor at 17 Cand 90 KPa with a mass flow rate of 0.2 Kg/s and exits at 400 KPa. The compressor has an isentropic effeciency of 88 % assuming constant specific heats at room temperature determine: A) The power input to the compressor B) The total rate of exergy destroyed during the process C) The second law efficiency of the compressor D) Draw the actual and isentropic process on T-5 diagram
Air is compressed by an adiabatic compressor from P2=100 kPa to P2=500 kPa. T2=380 K and T2=650 K. Air is an ideal gas with variable specific heats. Determine a) The exit temperature of the air for the isentropic case. Each of the above temperatures and pressures are given as actual. b) The efficiency of the compressor.
Consider a closed Brayton cycle heat-engine. Air is compressed from 300K, 100 kPa to 580K, 700 kPa. The air is heated at the rate of 950 kJ/kg before it enters the turbine. The isentropic efficiency of the turbine is 86%. Determine: a) the fraction of the turbine shaft power used to drive the compressor, and b) the thermal efficiency of the engine. Sketch the prooess on a T-s diagram. Do the calculation first with variable specific heats and then repeat...
Air is compressed steadily by a reversible compressor from an inlet state of 100 kPa and 300 K to an exit pressure of 900 kPa. if the volume flow rate = 1 m/sec Determine: the compressor power (kW) for isentropic compression with k = 1.4 Choose... the compressor power (kW) for polytropic compression with n = 1.3 Choose.. the compressor power (kW) for ideal two stage compression with intercooling with a polytropic exponent of 1.3 Choose... the compressor power (kW)...
