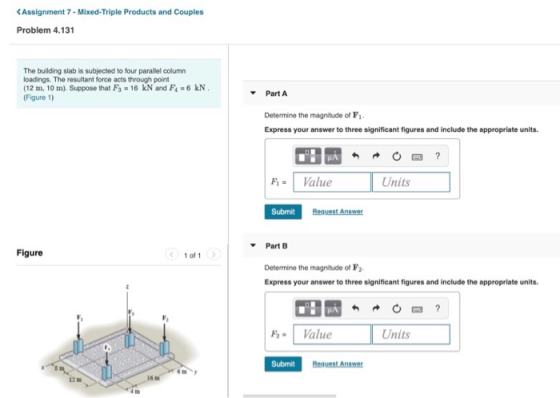

Assignment 7 - Mixed-Triple Products and Couples Problem 4.131 The building slab is subjected to four...
Part A The building slab is subjected to four parallel column loadings. The resultant force acts...
Part A The building slab is subjected to four parallel column loadings. The resultant force acts through point (12 m, 10 m). Suppose that F3 16 kN and F4-6 kN (Figure 1) Determine the magnitude of F1 Express your answer to three significant figures and include the appropriate units IR: I Value Units Figure 1 of 1 Submit Request Answer Part B Determine the magnitude of F2 Express your answer to three significant figures and include the appropriate units Value...
