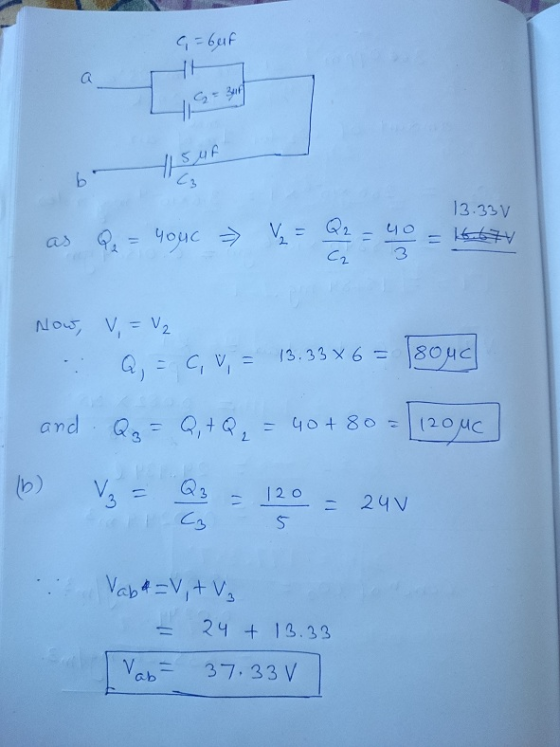

Homework Answers
Q2 = C2*V2
==> V2 = Q2/C2 = 40/3 = 13.33 volts
here V2 = V1
a)
so, Q1 = C1*V1 = 6*10^-6*13.33 = 80 micro C
Q3 = Q1+Q2 = 120 micro C
b) Vab = V1 + V3
= 13.3 + Q3/C3
= 13.33 + 120/5
= 37.33 volts
Add Answer to:
Please explain all calculation

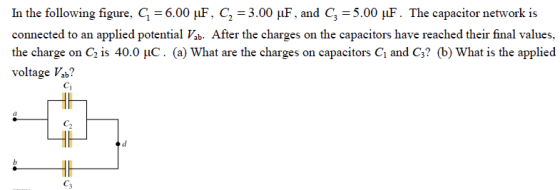

In the following figure, C1 = 6.00 mu F, C2 = 3.00...
In (Figure 1) , C1 = 6.00 μF, C2 = 3.00 μF, andC3 = 5.00 μF....
In (Figure 1) , C1 = 6.00 μF, C2 =
3.00 μF, andC3 = 5.00 μF. The capacitor
network is connected to an applied potential
Vab. After the charges on the capacitors
have reached their final values, the charge on C2 is
30.0μC.
Figure 1 of 1
A)What is the charge on capacitor C1?
B) What is the charge on capacitor C3?
C) What is the applied voltage
Vab?
