Nodal Voltage Analysis

Question

Question

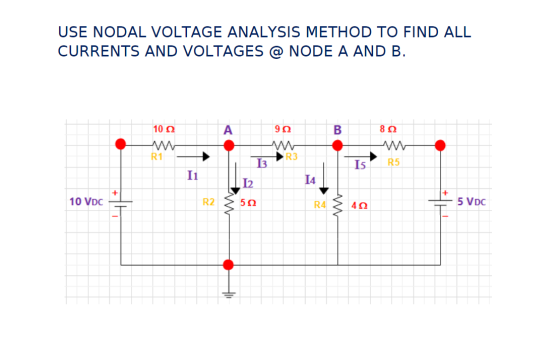

I know that Vb is supposed to be greater than 5V. Why is it that I keep getting 1.96V? Please help..

Screenshot (477).png

Nodal-Voltage Kirchoff-s-Laww Electrical
