Homework Answers
ccheck the answer below and do share your review.
Add Answer to:

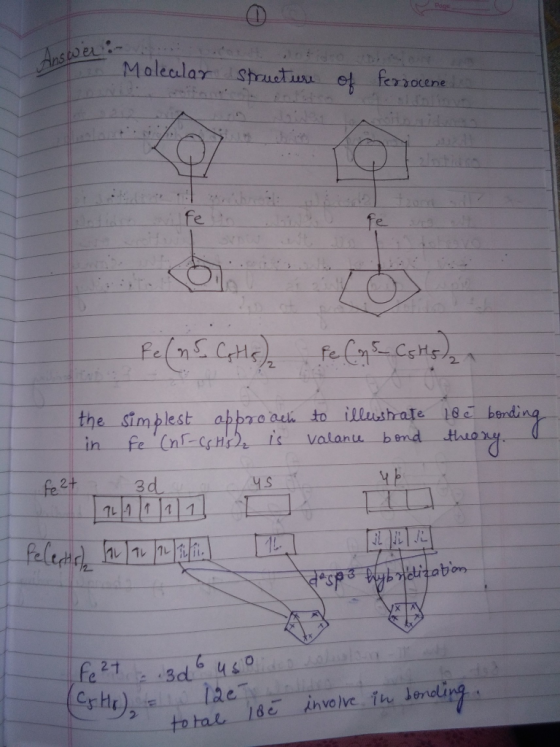

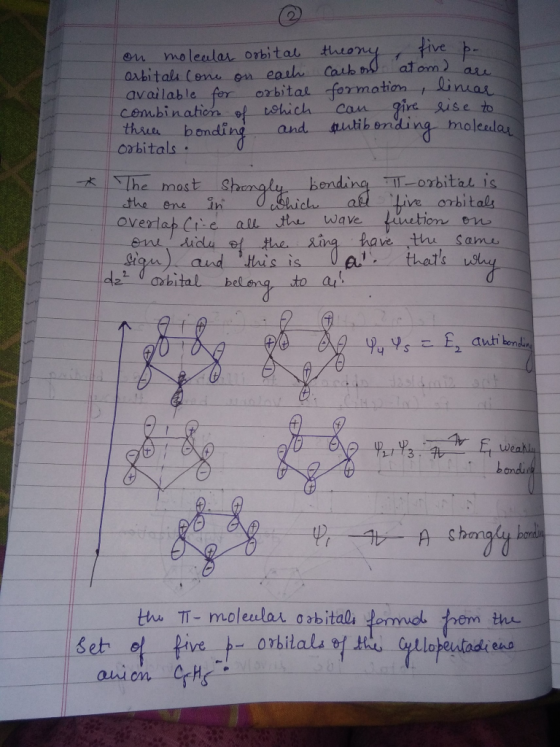

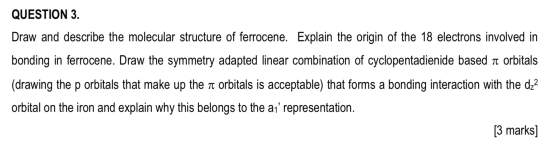

QUESTION 3. Draw and describe the molecular structure of ferrocene. Explain the origin of the 18...
2.) Draw a molecular orbital diagram for PH3 using the following orbitals. For P use the...
2.) Draw a molecular orbital diagram for PH3 using the following orbitals. For P use the 3s, 3px, 3py, 3pz orbitals and for the protons use the following symmetry adapted linear combinations (SALCS). This problem is essentially the same as #3. Again, in addition to the MO diagram draw any orbitals you create, determine the symmetry of all orbitals, and label them as either sigma-bonding or sigma*. Don’t forget the electrons and show in your diagram the lone pair of...
8) Assume the gaseous mercury(II) hydroxide molecular has a planar structure, with a linear O-Hg-...
numbers 8 and 9
8) Assume the gaseous mercury(II) hydroxide molecular has a planar structure, with a linear O-Hg-O angle, but bent at both ends. Assume the O-Hg-O bonds are on the z-axis. This molecule belongs to the C2h point group. Using the character table for C2h, determine which irreducible representation the following Hg atomic orbitals belong to: a) an s orbital b) a p: orbital c) a px orbital d) a d-y? Orbital 9) Draw the three p orbitals...
Draw the structure of 1,3-pentadiene. Use valence-bond and molecular orbital pictures to describe the bonding for...
Draw the structure of 1,3-pentadiene. Use valence-bond and molecular orbital pictures to describe the bonding for the s–framework and p–orbitals, respectively.
b) Is CO paramagnetic or diamagnetic? What is the bond order of CO? c) Draw a Lewis structure...
Draw an energy-level diagram for the valence molecular orbitals of CO. Include the relevant atomic orbitals in your diagram. Clearly label each molecular orbital (e.gs2s, p2p, etc.) and fill in the appropriate number of electrons. Use the same energy order as the neutral O2 molecule.b) Is CO paramagnetic or diamagnetic? What is the bond order of CO? c) Draw a Lewis structure for CO. Does this match the predicted bond order? d) CO can react withOH– to form the formate...
a) Briefly explain the practical importance of the Born-Openheimer approximation in the theory of molecular structure....
a) Briefly explain the practical importance of the Born-Openheimer approximation in the theory of molecular structure. [4] b) For the B2 molecule in its ground state, determine i. The molecular orbital electron configuration [2] ii. The bond order [1] i. The term symbol [3] c) Use the electron configurations of NO and N, which is likely to have a shorter bond length [6] El (s+v2p) d) Show that the sp2 hybrid orbital normalized and orthogonal. is normalized if s and...
Question 3 79 marks (a) Complete the following table (24) Draw BEST Lewis structure(s) and orbital...
Question 3 79 marks (a) Complete the following table (24) Draw BEST Lewis structure(s) and orbital shape Molecular Shape DRAWING and NAME Draw molecular shape Draw Lewis structure Draw orbital shapes PE VSEPR Formula: Name of orbital shape: Name of molecular shape Draw Lewis structure: Draw orbital shape: Draw molecular shape: SOBr2 VSEPR formula: Name of orbital shape: Name of molecular shape: Draw Lewis structure: Draw orbital shape: Draw molecular shape: BrF3 Name of molecular shape: Name of orbital shape:...
Question #4 & #5? 3) Using Early and Late Molecular Orbitals, draw the two M.O. diagrams...
Question #4 & #5?
3) Using Early and Late Molecular Orbitals, draw the two M.O. diagrams for NO , determine which is most stable; calculate and state bond order of each, state diamagnetic or paramagnetioc d if paramagnetic and by how many electrons. an 4) If four hydrogens, each with its 1s orbital, and two carbons, each with its one 2s and three 2p orbitals, form a molecule, then how many molecular orbitals will there be? How many bonding orbitals,...
hi there I need to solve this question 3. Consider the molecule CCl,0. (25 points) a. Draw the Lewis structure of th...
hi there I need to solve this question
3. Consider the molecule CCl,0. (25 points) a. Draw the Lewis structure of the molecule. Determine the Valence Bond Theorry hybridization of the carbon atom. 4+20)+6-2 +2 sp-spty S24 b daHon Based on the hybridization predicted in part "a", draw a hybridization scheme for the orbitals of b. the carbon atom. lank Draw orbital diagrams for chlorine and oxygen, showing the valence electrons only AC. 2s 2P 2 5 Draw the Valence...
De Senevi Samar CHEM DEPT O SCIENCE CHEMISTRY) LINCOLN UNIVERSITY PROBLEM SET COMEWORK) Structure and Bonding...
De Senevi Samar CHEM DEPT O SCIENCE CHEMISTRY) LINCOLN UNIVERSITY PROBLEM SET COMEWORK) Structure and Bonding Chapter 1) You must show your work on all questions to recen t (10 points) Give the ground-state electron configuration for turime si nu 2. (15 points) Consider the structure of re, shown below, to answer the following questions HN-C-NI (a). Fill in any non-bonding valence electrons that are missing from the line-bond structure (b). What is the hybridization of carbon atom in urea...
this is for part b 30 points total) Potassium ferrocyanide is the inorganic compound with formula...
this is for part b
30 points total) Potassium ferrocyanide is the inorganic compound with formula Fe(CN) 3.0. This salt forms lemon-yellow monoclinic crystals. Potassium ferrocyanide finds many niche applications in industry. It and the related sodium salt are widely used as anticaking agents for both road salt and table salt. Potassium ferrocyanide is used in the production of wine and citric acid. Potassium ferrocyanide is nontoxic, and is not decomposed to cyanide in the body. The toxicity in rats...
numbers 8 and 9
8) Assume the gaseous mercury(II) hydroxide molecular has a planar structure, with a linear O-Hg-O angle, but bent at both ends. Assume the O-Hg-O bonds are on the z-axis. This molecule belongs to the C2h point group. Using the character table for C2h, determine which irreducible representation the following Hg atomic orbitals belong to: a) an s orbital b) a p: orbital c) a px orbital d) a d-y? Orbital 9) Draw the three p orbitals...
a) Briefly explain the practical importance of the Born-Openheimer approximation in the theory of molecular structure. [4] b) For the B2 molecule in its ground state, determine i. The molecular orbital electron configuration [2] ii. The bond order [1] i. The term symbol [3] c) Use the electron configurations of NO and N, which is likely to have a shorter bond length [6] El (s+v2p) d) Show that the sp2 hybrid orbital normalized and orthogonal. is normalized if s and...
Question 3 79 marks (a) Complete the following table (24) Draw BEST Lewis structure(s) and orbital shape Molecular Shape DRAWING and NAME Draw molecular shape Draw Lewis structure Draw orbital shapes PE VSEPR Formula: Name of orbital shape: Name of molecular shape Draw Lewis structure: Draw orbital shape: Draw molecular shape: SOBr2 VSEPR formula: Name of orbital shape: Name of molecular shape: Draw Lewis structure: Draw orbital shape: Draw molecular shape: BrF3 Name of molecular shape: Name of orbital shape:...
Question #4 & #5?
3) Using Early and Late Molecular Orbitals, draw the two M.O. diagrams for NO , determine which is most stable; calculate and state bond order of each, state diamagnetic or paramagnetioc d if paramagnetic and by how many electrons. an 4) If four hydrogens, each with its 1s orbital, and two carbons, each with its one 2s and three 2p orbitals, form a molecule, then how many molecular orbitals will there be? How many bonding orbitals,...
hi there I need to solve this question
3. Consider the molecule CCl,0. (25 points) a. Draw the Lewis structure of the molecule. Determine the Valence Bond Theorry hybridization of the carbon atom. 4+20)+6-2 +2 sp-spty S24 b daHon Based on the hybridization predicted in part "a", draw a hybridization scheme for the orbitals of b. the carbon atom. lank Draw orbital diagrams for chlorine and oxygen, showing the valence electrons only AC. 2s 2P 2 5 Draw the Valence...
De Senevi Samar CHEM DEPT O SCIENCE CHEMISTRY) LINCOLN UNIVERSITY PROBLEM SET COMEWORK) Structure and Bonding Chapter 1) You must show your work on all questions to recen t (10 points) Give the ground-state electron configuration for turime si nu 2. (15 points) Consider the structure of re, shown below, to answer the following questions HN-C-NI (a). Fill in any non-bonding valence electrons that are missing from the line-bond structure (b). What is the hybridization of carbon atom in urea...
this is for part b
30 points total) Potassium ferrocyanide is the inorganic compound with formula Fe(CN) 3.0. This salt forms lemon-yellow monoclinic crystals. Potassium ferrocyanide finds many niche applications in industry. It and the related sodium salt are widely used as anticaking agents for both road salt and table salt. Potassium ferrocyanide is used in the production of wine and citric acid. Potassium ferrocyanide is nontoxic, and is not decomposed to cyanide in the body. The toxicity in rats...
