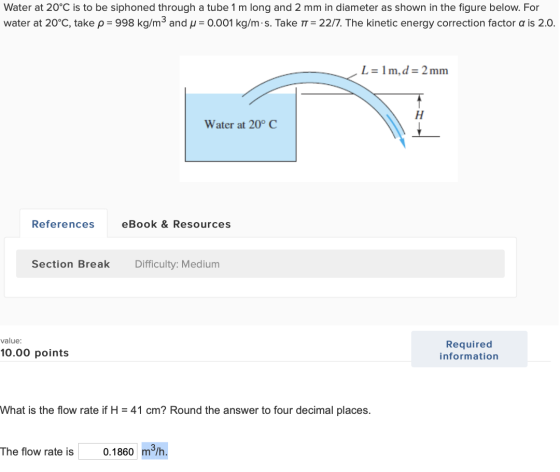

Water at 20°C is to be siphoned through a tube 1 m long and 2 mm
in diameter as shown in the figure below. For water at 20°C, take
ρ = 998 kg/m3 and μ = 0.001 kg/m⋅s.
Take π = 22/7. The kinetic energy correction factor
α is 2.0. What is the flow rate if H = 41 cm? Round the
answer to four decimal places.

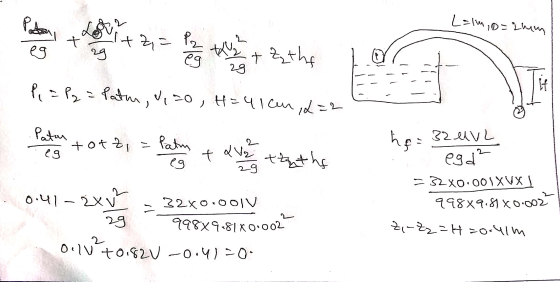

Homework Answers
Problem 3: The following data were obtained for flow of 20°C water at 20 m/hr through a badly corroded 5-cm-diameter pipe which slopes downward at an angle of 8°: pı -420 kPa, zi -12 m, p2- 250 kPa,...
Problem 3: The following data were obtained for flow of 20°C water at 20 m/hr through a badly corroded 5-cm-diameter pipe which slopes downward at an angle of 8°: pı -420 kPa, zi -12 m, p2- 250 kPa, z2- 3 m. Estimate (a) the roughness ratio of the pipe; and (b) the percent change in head loss if the pipe were smooth and the flow rate the same. For water at 20°C, take ρ-998 kg/m3 and μ-0.001 kg/m s
Problem...
2. Tutorial 3, Q13] Water at 20°C is siphoned through a tube as shown below. The...
2. Tutorial 3, Q13] Water at 20°C is siphoned through a tube as shown below. The tube has a a) What is the maximum distance the end of the tube can be lowered below the water level in the reservoir for the flow to remain laminar? How long will it take to fill a 10L tank whilst maintaining laminar flow? b)
a) compute the total pressure drop if the fluid is water. b) computer the total pressure drop if the fluid is ethylene g...
a) compute the total pressure
drop if the fluid is water.
b) computer the total pressure drop if the fluid is ethylene
glycol.
Consider a 20°C flow at 2.5 m/s through a smooth 3-mm diameter microtube which consists of a straight run of 10 cm, a long radius bend, and another straight run of 10 cm. For water, take p 998 kg/m3, kg/m3 glycol, take Kjam 0.5. and u 0.0010 kg/m s. For ethylene glycol, take p = 1117 0.0214...
1. For water at 20 C flowing through a straight smooth pipe at 0.06 m/h, the...
1. For water at 20 C flowing through a straight smooth pipe at 0.06 m/h, the pipe diameter for which transition to turbulence will occur is approximately a. 1.0 cm b. 1.5 cm c.2.0 cm d. 2.5 cm e. 3.0 cm 2. Find the Reynold number, the roughness parameter, the friction factor f and the pressure drop for flow of water at 20 C through a 5 cm diameter pipe of roughness height E=0.5 mm if the flow rate is...
Water at 20°C flows at 0.08 m3/s through a pipe and is metered by a 12...
Water at 20°C flows at 0.08 m3/s through a pipe and is metered by a 12 cm diameter long-radius flow nozzle (d = 12 cm). If the pressure drop across the nozzle is 25 kPa, what is the diameter of the pipe (D)? Use: Pwater = 998 kg/m3; Hwater = 0.001 kg/m-s. Express your answer in centimeters (cm). D
Water is siphoned from a large tank and discharges into the atmosphere through a 2-in.-diameter tube...
Water is siphoned from a large tank and discharges into the
atmosphere through a 2-in.-diameter tube as shown in the figure
below. The end of the tube is 3 ft below the tank bottom, and
viscous effects are negligible. Determine the volume flowrate from
the tank. Determine the maximum height, H, over which the water can
be siphoned without cavitation occurring. Atmospheric pressure is
14.7 psia, and the water vapor pressure is 0.26 psia
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m....
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m. Both the tank free surface and jet exit are exposed to the atmosphere. Take the density of water p = 1000 kg/m3, dynamic viscosity of water u = 0.001 kg/m.s, atmospheric pressure = 100 kPa, and gravity = 9.8 m/s2. Calculate the volumetric flow rate through the pipe. Neglect entrance losses to the pipe. Hint: Consider the inlet and outlet sections of the pipe...
A centrifugal pump test yields the following data: Pump Head Flow (m)(L/min) 30 25 20 40 The pump...
A centrifugal pump test yields the following data: Pump Head Flow (m)(L/min) 30 25 20 40 The pump curve can be approximated by a parabola. This pump draws water from a large reservoir. The discharge of the pump feeds 150 m of 1.5 cm inside diameter pipe and then 225 m of 3 cm inside diameter pipe.. The two pipes both have a roughness of 0.5 mm The 3 cm pipe discharges to atmosphere a distance 40 m below the...
2) In the Figure below, the pipe entrance is sharp-edged. If the flow rate is 0.004...
2) In the Figure below, the pipe entrance is sharp-edged. If the flow rate is 0.004 m3/s, what power, in W, is extracted by the turbine? (For water at 20°C, take ρ-998 kg/m3 and μ 0.001 kg/ms. For cast iron, take ε ~ 0.26 mm) Open globe valve Turbine 40 m Water Cast iron: L 125 m, D 5 cm
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m....
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m. Both the tank free surface and jet exit are exposed to the atmosphere. Take the density of water p = 1000 kg/m3, dynamic viscosity of water j = 0.001 kg/m.s, atmospheric pressure = 100 kPa, and gravity = 9.8 m/s2. Calculate the volumetric flow rate through the pipe. Neglect entrance losses to the pipe. Hint: Consider the inlet and outlet sections of the pipe...
Problem 3: The following data were obtained for flow of 20°C water at 20 m/hr through a badly corroded 5-cm-diameter pipe which slopes downward at an angle of 8°: pı -420 kPa, zi -12 m, p2- 250 kPa, z2- 3 m. Estimate (a) the roughness ratio of the pipe; and (b) the percent change in head loss if the pipe were smooth and the flow rate the same. For water at 20°C, take ρ-998 kg/m3 and μ-0.001 kg/m s
Problem...
2. Tutorial 3, Q13] Water at 20°C is siphoned through a tube as shown below. The tube has a a) What is the maximum distance the end of the tube can be lowered below the water level in the reservoir for the flow to remain laminar? How long will it take to fill a 10L tank whilst maintaining laminar flow? b)
a) compute the total pressure
drop if the fluid is water.
b) computer the total pressure drop if the fluid is ethylene
glycol.
Consider a 20°C flow at 2.5 m/s through a smooth 3-mm diameter microtube which consists of a straight run of 10 cm, a long radius bend, and another straight run of 10 cm. For water, take p 998 kg/m3, kg/m3 glycol, take Kjam 0.5. and u 0.0010 kg/m s. For ethylene glycol, take p = 1117 0.0214...
1. For water at 20 C flowing through a straight smooth pipe at 0.06 m/h, the pipe diameter for which transition to turbulence will occur is approximately a. 1.0 cm b. 1.5 cm c.2.0 cm d. 2.5 cm e. 3.0 cm 2. Find the Reynold number, the roughness parameter, the friction factor f and the pressure drop for flow of water at 20 C through a 5 cm diameter pipe of roughness height E=0.5 mm if the flow rate is...
Water at 20°C flows at 0.08 m3/s through a pipe and is metered by a 12 cm diameter long-radius flow nozzle (d = 12 cm). If the pressure drop across the nozzle is 25 kPa, what is the diameter of the pipe (D)? Use: Pwater = 998 kg/m3; Hwater = 0.001 kg/m-s. Express your answer in centimeters (cm). D
Water is siphoned from a large tank and discharges into the
atmosphere through a 2-in.-diameter tube as shown in the figure
below. The end of the tube is 3 ft below the tank bottom, and
viscous effects are negligible. Determine the volume flowrate from
the tank. Determine the maximum height, H, over which the water can
be siphoned without cavitation occurring. Atmospheric pressure is
14.7 psia, and the water vapor pressure is 0.26 psia
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m. Both the tank free surface and jet exit are exposed to the atmosphere. Take the density of water p = 1000 kg/m3, dynamic viscosity of water u = 0.001 kg/m.s, atmospheric pressure = 100 kPa, and gravity = 9.8 m/s2. Calculate the volumetric flow rate through the pipe. Neglect entrance losses to the pipe. Hint: Consider the inlet and outlet sections of the pipe...
A centrifugal pump test yields the following data: Pump Head Flow (m)(L/min) 30 25 20 40 The pump curve can be approximated by a parabola. This pump draws water from a large reservoir. The discharge of the pump feeds 150 m of 1.5 cm inside diameter pipe and then 225 m of 3 cm inside diameter pipe.. The two pipes both have a roughness of 0.5 mm The 3 cm pipe discharges to atmosphere a distance 40 m below the...
2) In the Figure below, the pipe entrance is sharp-edged. If the flow rate is 0.004 m3/s, what power, in W, is extracted by the turbine? (For water at 20°C, take ρ-998 kg/m3 and μ 0.001 kg/ms. For cast iron, take ε ~ 0.26 mm) Open globe valve Turbine 40 m Water Cast iron: L 125 m, D 5 cm
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m. Both the tank free surface and jet exit are exposed to the atmosphere. Take the density of water p = 1000 kg/m3, dynamic viscosity of water j = 0.001 kg/m.s, atmospheric pressure = 100 kPa, and gravity = 9.8 m/s2. Calculate the volumetric flow rate through the pipe. Neglect entrance losses to the pipe. Hint: Consider the inlet and outlet sections of the pipe...
