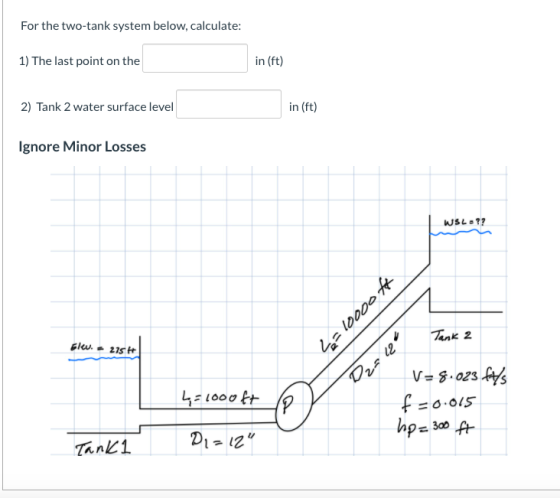

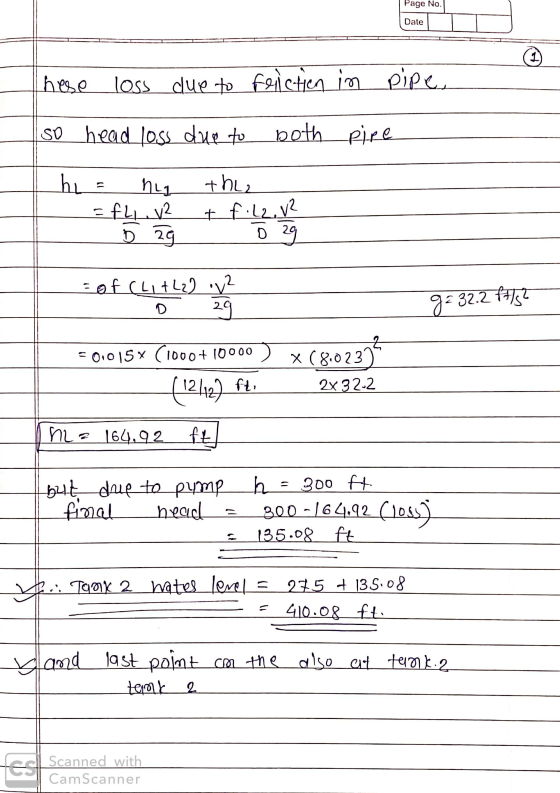

For the two-tank system below, calculate: 1) The last point on the in (ft) 2) Tank...
1.(4 pts) A rectangular tank, shown in Figure A, is 4 ft long, 2 ft wide, and 3 ft high. Initiall...
1.(4 pts) A rectangular tank, shown in Figure A, is 4 ft long, 2 ft wide, and 3 ft high. Initially there is 4 fts of water in the tank and water starts flowing into the tank at the time t Let V (t) denote the volume of the water in the tank at the time t. The graph of V', the derivative of V, o ft3 is given in figure B, where t is in minutes, and V'in min...
The tank shown in the figure below contains air at atmospheric pressure above the water surface....
The tank shown in the figure below contains air at atmospheric pressure above the water surface. The velocity of the water flowing from the tank is22.5 ft./sec. Determine the water level (h). D-12 in. Ait p- 14.7 psia → V:" 22.5 ft/sec
2. For the following pipe system find the discharge in each pipe if the difference in...
2. For the following pipe system find the discharge in each pipe if the difference in water surface elevation Az between the two tanks A and B is 40 m. Neglect minor losses. Pi friction 0.012 0.025 0.015 0.02 Length (m) 200 400 150 300 Diameter (cm 30 15 25 20 4 4
For the system sketched below obtain the net volume ow rate of uid into tank 2....
For the system sketched below obtain the net volume ow rate of
uid into tank 2. All pipes have an internal diameter D=0.05m and a
friction coecient of f = 0:025. Pipe 3 discharges directly to the
atmosphere. Pipe 1 is 20m long, Pipe 2 is 10m long, Pipe 3 is 30m
long and Pipe 4 is 15m long. Ignore all minor losses.
Tank 1 10m be ? Pipe 2m 4m Tank 2
Question 6 - Minor Losses A tank and piping system is shown. The galvanized pipe diameter is 1.5 cm, and the total length of pipe is 10 m. The two 90° elbows are threaded fittings. The vertical dista...
Question 6 - Minor Losses A tank and piping system is shown. The galvanized pipe diameter is 1.5 cm, and the total length of pipe is 10 m. The two 90° elbows are threaded fittings. The vertical distance from the water surface to the pipe outlet is 5 m. The velocity of the water in the tank is negligible. Find (a) the exit velocity of the water and (b) the height (h) the water jet would rise on exiting the...
A water tank has the shape of an inverted circular cone with radius 2 ft and...
A water tank has the shape of an inverted circular cone with radius 2 ft and depth 8 ft. Water is leaking out of the tank at a rate of 1.5 ft/min. a. Compare the rate of change in the depth of the water when h=6 ft to the rate of change in the depth of the water when h-3 ft. Would these rates be the same or different? If different, describe how they would be different and why. Be...
answer: elev. tank 2=1426.6 ft, Q=4.96cfs Q4. For the system below calculate the elevation in tank...
answer: elev. tank 2=1426.6 ft, Q=4.96cfs
Q4. For the system below calculate the elevation in tank 2. The pump delivers a head of 200 ft. The Pipes are made of new cast iron with (f-0.018) (25 points) Energy line Exit loss Hydraulic grade line Elevation ??? ft Pumped head Entrance loss Energy line Elevation 1230 Hydraulic grade line ft K 0.5 L-1200 ft D 3ft L-245 ft D 1ft K 1
A pump transports water from Tank 1 to Tank 2 through a constant-diameter piping system as...
A pump transports water from Tank 1 to Tank 2 through a constant-diameter piping system as shown below (not to scale). The flow rate is controlled by two gate valves, the gate valve I controls the main pipeline, while the gate valve II controls the loop line from T-joint A to T-joint B. All pipes are galvanized steel pipe of diameter D = 4 in. It has a total length of Li2= 620 ft from tank 1 to tank 2....
The following figure depicts a pipe system connecting two reservoirs. No minor losses should be considered...
The following figure depicts a pipe system connecting two reservoirs. No minor losses should be considered in this problem. Assume that y=62.4 lb/ft. The water surface elevation at Reservoir A is 24 feet, and at Reservoir Dthe water surface elevation is 100 feet. The pump supplies a head of He=100 feet. The pipe system consists of pipes in series with the following characteristics: Pipe ABBCCD Diameter (in) 18 18 Length (ft) 4,000 1,000 2,000 Darcyf 0.015 0.020 0.015 la) Calculate...
A turbo pump transfers water from tank 1 to tank to tank 2 as shown in...
A turbo pump transfers water from tank 1 to tank to tank 2 as
shown in the picture below. The diameter of the piping system is D=
4in and the total length of pipes is L=620 ft. the elevation
difference is Z1-Z2= 30ft. Use the chart for KL values.
a) determine the flow rate (Q)
b) power of the pump in HP
Note that you can write out both mass balance equation and energy equation of the head form for...
1.(4 pts) A rectangular tank, shown in Figure A, is 4 ft long, 2 ft wide, and 3 ft high. Initially there is 4 fts of water in the tank and water starts flowing into the tank at the time t Let V (t) denote the volume of the water in the tank at the time t. The graph of V', the derivative of V, o ft3 is given in figure B, where t is in minutes, and V'in min...
The tank shown in the figure below contains air at atmospheric pressure above the water surface. The velocity of the water flowing from the tank is22.5 ft./sec. Determine the water level (h). D-12 in. Ait p- 14.7 psia → V:" 22.5 ft/sec
2. For the following pipe system find the discharge in each pipe if the difference in water surface elevation Az between the two tanks A and B is 40 m. Neglect minor losses. Pi friction 0.012 0.025 0.015 0.02 Length (m) 200 400 150 300 Diameter (cm 30 15 25 20 4 4
For the system sketched below obtain the net volume ow rate of
uid into tank 2. All pipes have an internal diameter D=0.05m and a
friction coecient of f = 0:025. Pipe 3 discharges directly to the
atmosphere. Pipe 1 is 20m long, Pipe 2 is 10m long, Pipe 3 is 30m
long and Pipe 4 is 15m long. Ignore all minor losses.
Tank 1 10m be ? Pipe 2m 4m Tank 2
Question 6 - Minor Losses A tank and piping system is shown. The galvanized pipe diameter is 1.5 cm, and the total length of pipe is 10 m. The two 90° elbows are threaded fittings. The vertical distance from the water surface to the pipe outlet is 5 m. The velocity of the water in the tank is negligible. Find (a) the exit velocity of the water and (b) the height (h) the water jet would rise on exiting the...
A water tank has the shape of an inverted circular cone with radius 2 ft and depth 8 ft. Water is leaking out of the tank at a rate of 1.5 ft/min. a. Compare the rate of change in the depth of the water when h=6 ft to the rate of change in the depth of the water when h-3 ft. Would these rates be the same or different? If different, describe how they would be different and why. Be...
answer: elev. tank 2=1426.6 ft, Q=4.96cfs
Q4. For the system below calculate the elevation in tank 2. The pump delivers a head of 200 ft. The Pipes are made of new cast iron with (f-0.018) (25 points) Energy line Exit loss Hydraulic grade line Elevation ??? ft Pumped head Entrance loss Energy line Elevation 1230 Hydraulic grade line ft K 0.5 L-1200 ft D 3ft L-245 ft D 1ft K 1
A pump transports water from Tank 1 to Tank 2 through a constant-diameter piping system as shown below (not to scale). The flow rate is controlled by two gate valves, the gate valve I controls the main pipeline, while the gate valve II controls the loop line from T-joint A to T-joint B. All pipes are galvanized steel pipe of diameter D = 4 in. It has a total length of Li2= 620 ft from tank 1 to tank 2....
The following figure depicts a pipe system connecting two reservoirs. No minor losses should be considered in this problem. Assume that y=62.4 lb/ft. The water surface elevation at Reservoir A is 24 feet, and at Reservoir Dthe water surface elevation is 100 feet. The pump supplies a head of He=100 feet. The pipe system consists of pipes in series with the following characteristics: Pipe ABBCCD Diameter (in) 18 18 Length (ft) 4,000 1,000 2,000 Darcyf 0.015 0.020 0.015 la) Calculate...
A turbo pump transfers water from tank 1 to tank to tank 2 as
shown in the picture below. The diameter of the piping system is D=
4in and the total length of pipes is L=620 ft. the elevation
difference is Z1-Z2= 30ft. Use the chart for KL values.
a) determine the flow rate (Q)
b) power of the pump in HP
Note that you can write out both mass balance equation and energy equation of the head form for...
