Homework Answers
Add Answer to:

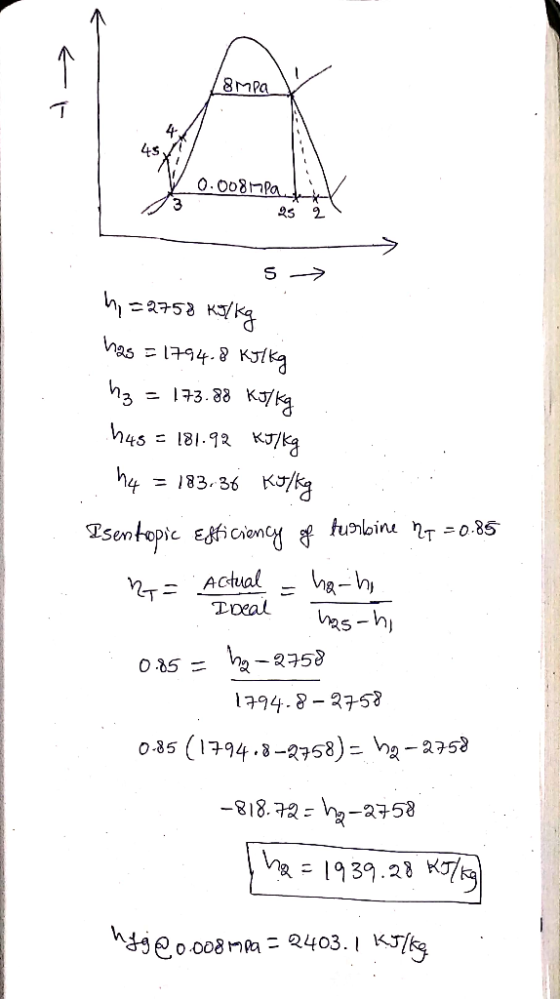

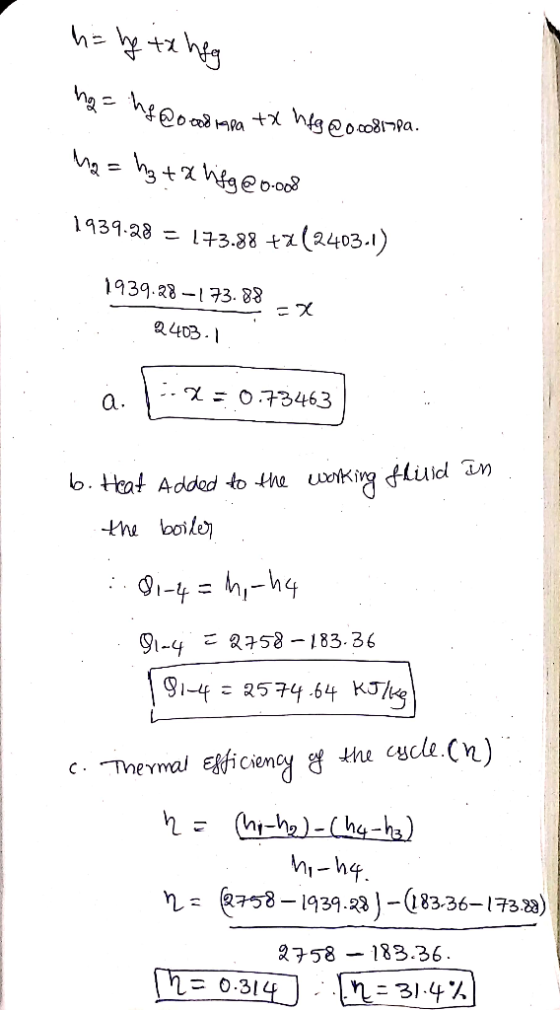

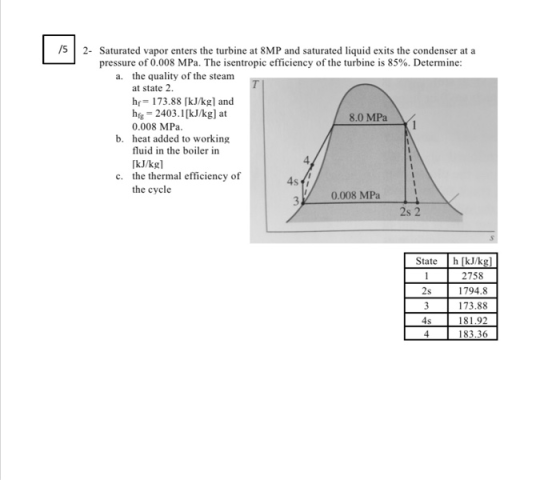

/5 2- Saturated vapor enters the turbine at 8MP and saturated liquid exits the condenser at...
Water is the working fluid in a Rankine cycle. Superheated vapor enters the turbine at 10...
Water is the working fluid in a Rankine cycle. Superheated vapor enters the turbine at 10 Mpa, 560 C with a mass flow rate of 7.8kg/s and exits at 8 kPa. Saturated liquid enters the pump at 8 kPa. The isentropic turbine efficiency is 85%, and the isentropic pump efficiency is 85%. Cooling water enters the adiabatic condenser at 18 C and exits at 36 C with no significant change in pressure and assuming the specific heat of the cooling...
Problem 2: (50 points) Steam is the work Saturated vapor enters the turbine at (50 points)...
Problem 2: (50 points) Steam is the work Saturated vapor enters the turbine at (50 points) Steam is the working fluid in an ideal Rankine cycle. ated vapor enters the turbine at BO MPa and saturated liquid exits the ser at a pressure of 0.006 MPa. The not power output of the cycle is 500 MW.Also he = 1812.2 kJ/kg and he 157.56 kJ/kg a. Thermal Efficiency (30 points) b. Mass flow rate in kg/h (20 points) c. Bonus: Qin...
Steam is the working fluid in a simple, ideal Rankine cycle. Saturated vapor enters the turbine...
Steam is the working fluid in a simple, ideal Rankine cycle. Saturated vapor enters the turbine at 8 MPa and saturated liquid exits the condenser at a pressure of 8 kPa. The net power output of the cycle is 100 MW. Determine for the cycle: i. Thermal efficiency ii. Back work ratio iii. Mass flow-rate of the steam in kg/h iv. Rate of heat transfer to the working fluid as it passes through the boiler in MW v. Rate of...
1). A simple Rankine cycle uses water as the working fluid. Saturated vapor enters the turbine...
1). A simple Rankine cycle uses water as the working fluid. Saturated vapor enters the turbine at 8.0 MPa and saturated liquid water exists the condenser at a pressure of 8.0 kPa. The net power output of the cycle is 100MW Determine: a. The thermal efficiency b. The work ratio c. The mass flow rate of the steam in kg/min d. The rates of heat transfer into/from the working fluid as it passes through the boiler and condenser, respectively, in...
4. Water is the working fluid in a Carnot vapor power cycle. Saturated liquid enters the...
4. Water is the working fluid in a Carnot vapor power cycle. Saturated liquid enters the boiler at 16 MPa, and saturated vapor enters the turbine. The condenser pressure is 8 kPa. The mass flow rate of steam entering the turbine is 120 kg/s. Determine (a) the thermal efficiency. (b) the back work ratio. (c) the net power developed, in kW. (d) the rate of heat transfer from the working fluid passing through the condenser, in kW.
Water is the working fluid in a Carnot vapor power cycle. Saturated liquid enters the boiler...
Water is the working fluid in a Carnot vapor power cycle.
Saturated liquid enters the boiler at a pressure of 160 bar, and
saturated vapor enters the turbine. The condenser pressure is 0.08
bar. Determine
(a) the thermal efficiency.
(b) the back work ratio.
(c) the heat transfer to the working fluid per
unit mass passing through boiler, in kJ/kg.
(d) the heat transfer from the working fluid per
unit mass passing through the condenser, in kJ/kg.
Problem 8.03 Water...
Superheated steam at 20 MPa, 560oC enters the turbine of a vapor power plant. The pressure...
Superheated steam at 20 MPa, 560oC enters the turbine of a vapor power plant. The pressure at the exit of the turbine is 0.7 bar, and liquid leaves the condenser at 0.4 bar at 75oC. The pressure is increased to 20.1 MPa across the pump and the specific enthalpy is 338.14 kJ/kg. The turbine isentropic efficiency is 81%. Cooling water enters the condenser at 20oC with a mass flow rate of 70.7 kg/s and exits the condenser at 38oC. For...
Tutorial Questions 1 1. Water is the working fluid in an ideal Rankine cycle. The condenser...
Tutorial Questions 1.1. Water is the working fluid in an ideal Rankine cycle. The condenser pressure is kPa, and saturated vapor enters the turbine at 10 MPa. Determine the heat transfer rates, in kJ per kg of steam flowing, for the working fluid passing through the boiler and condenser and calculate the thermal efficiency.2. Water is the working fluid in an ideal Rankine cycle. Saturated vapor enters the turbine at 16 MPa, and the condenser pressure is 8 kPa ....
Water is the working fluid in a Rankine cycle. Superheated vapor enters the turbine at 8...
Water is the working fluid in a Rankine cycle. Superheated vapor enters the turbine at 8 MPa, 700°C and the turbine exit pressure is 8 kPa. Saturated liquid enters the pump at 8 kPa. The heat transfer rate to the working fluid in the steam generator is 24 MW. The isentropic turbine efficiency is 88%, and the isentropic pump efficiency is 82%. Cooling water enters the condenser at 18°C and exits at 36°C with no significant change in pressure. Determine...
Problem 4 In the vapor power cycle shown below, steam (H20) is the working fluid. Saturated...
Problem 4 In the vapor power cycle shown below, steam (H20) is the working fluid. Saturated vapor enters the turbine at 100 bar and saturated liquid exits the condenser at a pressure of 0.1 bar. The net power output of the cycle, Weycle, is 150 MW. Isentropic efficiency of the turbine and the pump (n (hi-h2)/(h1-h2s), np=(h25-h1)/(h2-h1)) are both 80%. Determine the followings. [30 pts] (a) Thermal efficiency, n (b) Mass flow rate of the steam, m, in kg/s (c)...
Problem 2: (50 points) Steam is the work Saturated vapor enters the turbine at (50 points) Steam is the working fluid in an ideal Rankine cycle. ated vapor enters the turbine at BO MPa and saturated liquid exits the ser at a pressure of 0.006 MPa. The not power output of the cycle is 500 MW.Also he = 1812.2 kJ/kg and he 157.56 kJ/kg a. Thermal Efficiency (30 points) b. Mass flow rate in kg/h (20 points) c. Bonus: Qin...
1). A simple Rankine cycle uses water as the working fluid. Saturated vapor enters the turbine at 8.0 MPa and saturated liquid water exists the condenser at a pressure of 8.0 kPa. The net power output of the cycle is 100MW Determine: a. The thermal efficiency b. The work ratio c. The mass flow rate of the steam in kg/min d. The rates of heat transfer into/from the working fluid as it passes through the boiler and condenser, respectively, in...
4. Water is the working fluid in a Carnot vapor power cycle. Saturated liquid enters the boiler at 16 MPa, and saturated vapor enters the turbine. The condenser pressure is 8 kPa. The mass flow rate of steam entering the turbine is 120 kg/s. Determine (a) the thermal efficiency. (b) the back work ratio. (c) the net power developed, in kW. (d) the rate of heat transfer from the working fluid passing through the condenser, in kW.
Water is the working fluid in a Carnot vapor power cycle.
Saturated liquid enters the boiler at a pressure of 160 bar, and
saturated vapor enters the turbine. The condenser pressure is 0.08
bar. Determine
(a) the thermal efficiency.
(b) the back work ratio.
(c) the heat transfer to the working fluid per
unit mass passing through boiler, in kJ/kg.
(d) the heat transfer from the working fluid per
unit mass passing through the condenser, in kJ/kg.
Problem 8.03 Water...
Problem 4 In the vapor power cycle shown below, steam (H20) is the working fluid. Saturated vapor enters the turbine at 100 bar and saturated liquid exits the condenser at a pressure of 0.1 bar. The net power output of the cycle, Weycle, is 150 MW. Isentropic efficiency of the turbine and the pump (n (hi-h2)/(h1-h2s), np=(h25-h1)/(h2-h1)) are both 80%. Determine the followings. [30 pts] (a) Thermal efficiency, n (b) Mass flow rate of the steam, m, in kg/s (c)...
