Add Answer to:

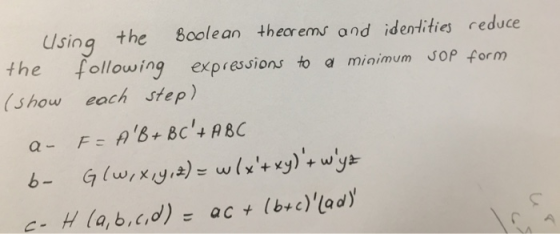

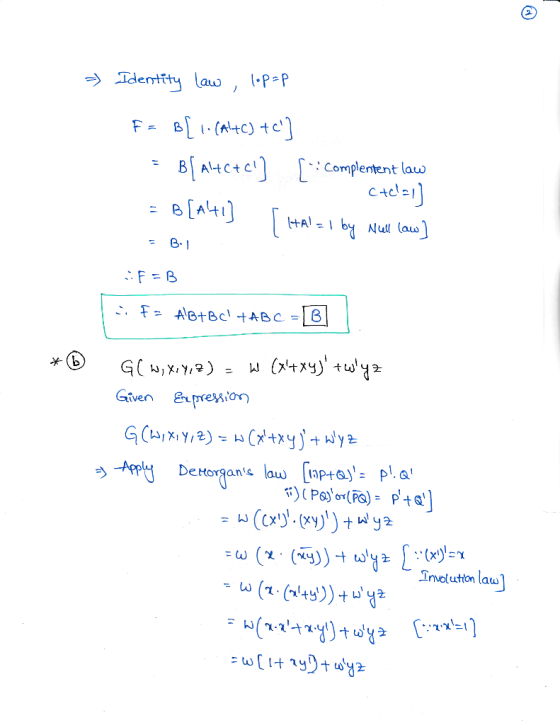

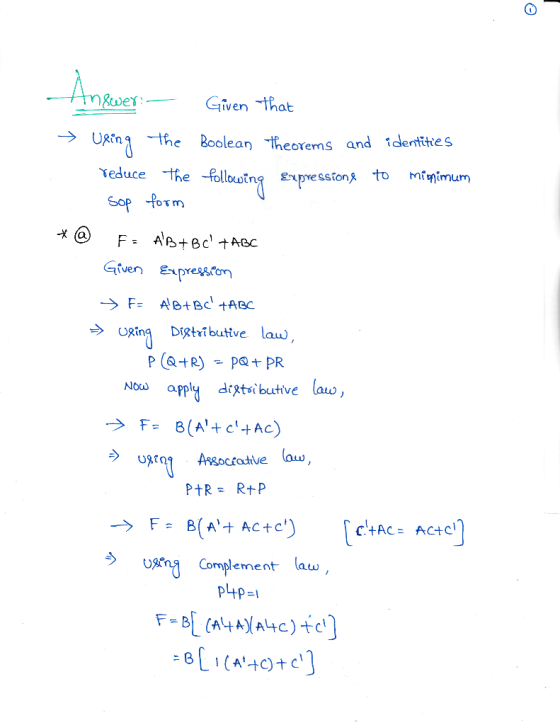

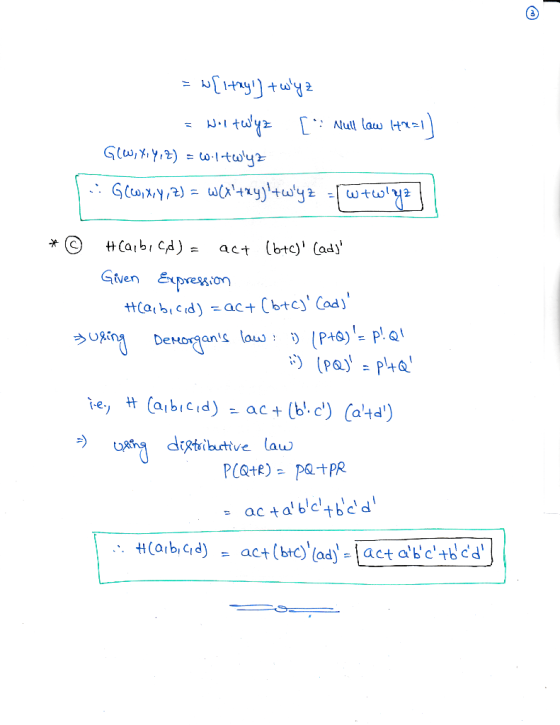

ulsing the 8oolean theorems and identities reduce the following expressions to a minimum Jop form (show...
answer asap and show work: 1) Using Boolean Algebraic Properties, reduce the following expressions to a...
answer asap and show work: 1) Using Boolean Algebraic Properties, reduce the following expressions to a minimum SOP form. Show each step. a) ? = ?’?’?’ + ?’?’? + ?’?? + ??? + ???’: b) ? = ?’?’?’ + ?’?’? + ??? + ??’? : c)? = ?? + ?’?’? + ?’??’ + ????’ + ?’?? + ??: d) ? = ??? + ??? + ?’?’:
Use Boolean identities to reduce these expressions to simplest form. 1.) ~(A*B) * (~A+B)* (~B+B) answer...
Use Boolean identities to reduce these expressions to simplest form. 1.) ~(A*B) * (~A+B)* (~B+B) answer choices a.) ~A b.) A + ~B c.) ~A (B+~B) d.) ~A*B 1b.) ~A + (~(A+B))* C + B a.) ~A + ~A + ~ B * C + B b.) ~B c.) ~A + B d.) ~A (~B + C) +B e.) ~A please answer the questions with detailed steps and explanation on which boolean identities were used. I know the answer, but...
. Simplify the following functional expressions using Boolean algebra and its identities. List the identity used...
. Simplify the following functional expressions using Boolean algebra and its identities. List the identity used at each step. y'(x'z' + xz) + z (x + y)'
Using the theorems of switching algebra to rewrite the following expressions using as few inversions as...
Using the theorems of switching algebra to rewrite the following expressions using as few inversions as possible (complemented parentheses are allowed): B'*C + A*C*D' +A'*C +D*B' + E*(A+C)*(A'+D')
1. (9 points, 3 points each) Using the Boolean identities, simplify the following expressions: a. (x7)Zi)(2+...
1. (9 points, 3 points each) Using the Boolean identities, simplify the following expressions: a. (x7)Zi)(2+ y) b. 7(xyz) + y(ż + (7 +z)) C. (xz + ✓x) + y(x+y)(7+ y)
Simplify the following Boolean expression using identities. Only need part C 2. Simplify the following expressions:...
Simplify the following Boolean expression using identities. Only
need part C
2. Simplify the following expressions: a. AB AB +AB b. АВС + АВС + АВС + АВС + АВС c. ABC ABC+ABC ABC+ABC
1. Use K-maps to reduce each of the following to a minimized SOP form: (a) A...
1. Use K-maps to reduce each of the following to a minimized SOP form: (a) A + BC + CD (b) ABCD + ABCD + ABCD + ABCD (c) ABCD + CD) + ABCD + CD) + ABCD (d) (AB + ABXCD + CD) (e) AB + AB + CD + CD 2. Use K-maps to find the minimum SOP expression for the logic function shown in the table to the right. Implement the circuit using NAND gates only. Inputs...
(c) Use a Karnaugh map to reduce the following 4-variable expression to a minimum SOP form....
(c) Use a Karnaugh map to reduce the following 4-variable expression to a minimum SOP form. CD(AB+AB)+CD(AB+AB)+CD(AB+ AB)+ ABCD+ABCD+ACD+ACD (5 marks)
11. Simplify the following Boolean expressions to a minimum number of literals: c) abcd + abc...
11. Simplify the following Boolean expressions to a minimum number of literals: c) abcd + abc 'd + a'bd btain the truth table for the following functions and express each function in sum-of minterms and product-of-maxterms form: a) (x y')y'+2) c) (xy +yz+xz(x 2)
Simplify the following Boolean expressions to the minimum number of terms using the properties of Boolean algebra (show...
Simplify the following Boolean expressions to the minimum number of terms using the properties of Boolean algebra (show your work and write the property you are applying). State if they cannot be simplified A. X’Y + XY B. (X + Y)(X + Y’) C. (A’ + B’) (A + B)’ D. ABC + A’B + A’BC’ E. XY + X(WZ + WZ’)
1. (9 points, 3 points each) Using the Boolean identities, simplify the following expressions: a. (x7)Zi)(2+ y) b. 7(xyz) + y(ż + (7 +z)) C. (xz + ✓x) + y(x+y)(7+ y)
Simplify the following Boolean expression using identities. Only
need part C
2. Simplify the following expressions: a. AB AB +AB b. АВС + АВС + АВС + АВС + АВС c. ABC ABC+ABC ABC+ABC
1. Use K-maps to reduce each of the following to a minimized SOP form: (a) A + BC + CD (b) ABCD + ABCD + ABCD + ABCD (c) ABCD + CD) + ABCD + CD) + ABCD (d) (AB + ABXCD + CD) (e) AB + AB + CD + CD 2. Use K-maps to find the minimum SOP expression for the logic function shown in the table to the right. Implement the circuit using NAND gates only. Inputs...
(c) Use a Karnaugh map to reduce the following 4-variable expression to a minimum SOP form. CD(AB+AB)+CD(AB+AB)+CD(AB+ AB)+ ABCD+ABCD+ACD+ACD (5 marks)
11. Simplify the following Boolean expressions to a minimum number of literals: c) abcd + abc 'd + a'bd btain the truth table for the following functions and express each function in sum-of minterms and product-of-maxterms form: a) (x y')y'+2) c) (xy +yz+xz(x 2)
