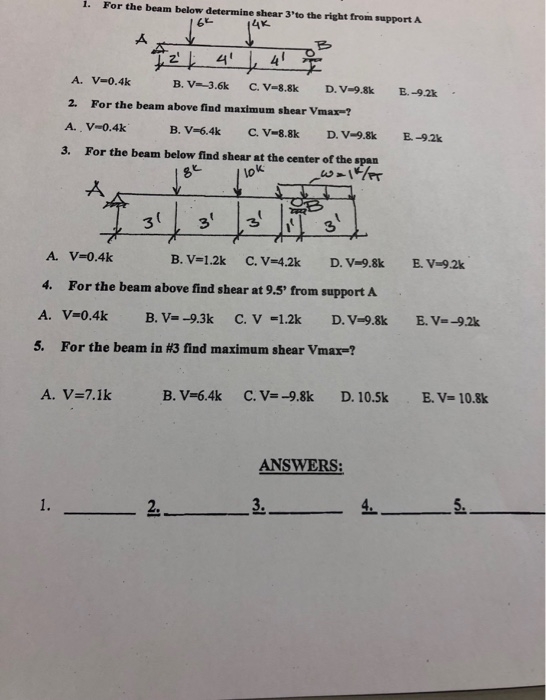

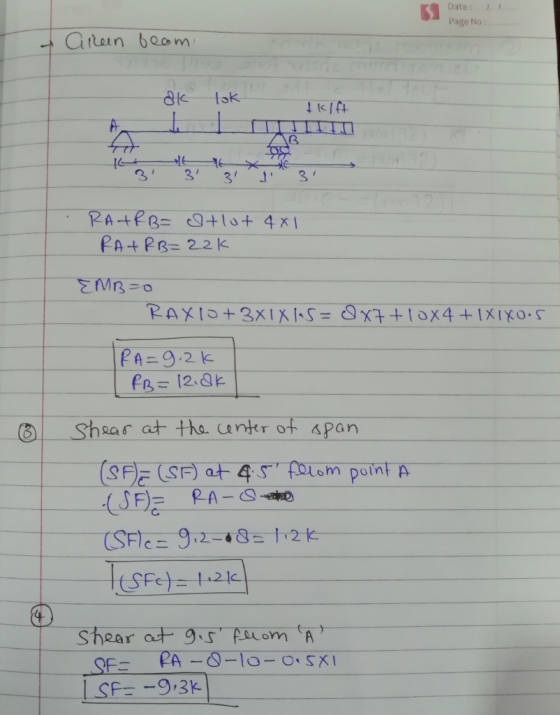

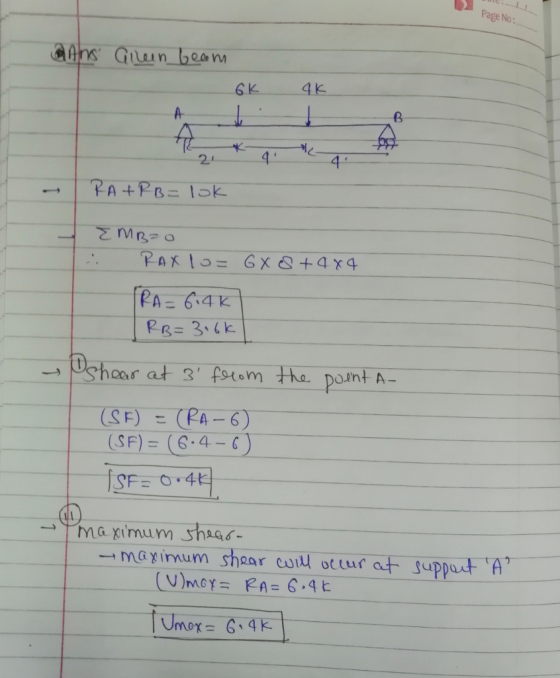

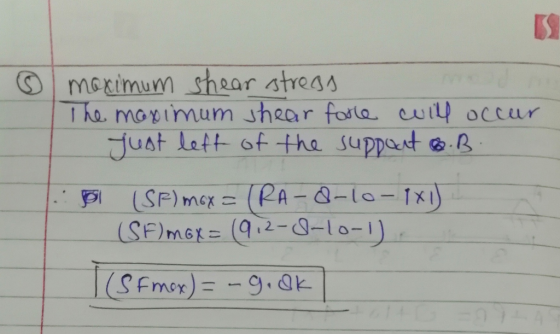

1. For the beam below determine shear 3'to the right from support A 4x. 62 A....
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
a 16' span beam is loaded as shown. determine:
support reactions at b & c
Shear diagram & peak points
Momet diagram
Max bending stress
6k (1) 3k/ft Ab C 4 4
A beam is loaded by a shear force V. The beam cross-section is
shown below. The moment of inertia of the cross-section is 347.1
in4. The centroid of the cross-section is 6.25 inches
from the base. Determine:
a) the shear stress at point A.
b) the shear stress at point B.
c) the maximum shear stress in the cross-section.
V = 50 (kips)
The maximum shear stress at point A is _____(ksi)
The maximum shear stress at point B is...
Leaming Goal: To determine the shear stresses at specific locations in a beam due to an external loading. Beam ABC is subjected to the loading shown, where PB = 40.0 kN. The measurement corresponding to the half-length of the beam is a = 2.50 m. For the cross section shown, b = 50.0 mm, c= 125.0 mm, d = 125.0 mm, and e = 65.0 mm Point Dis located at the centroid of the cross section and point E is...
1. Draw influence lines for shear and moment at 15, 25, and 30 feet from the left support for a simply supported beam with a span of 60 feet. Show values of maxima. 2. Using the influence lines in part 1, determine the shear and moment at 15, 25, and 30 feet for a uniformly distributed load of 50 k/ft applied over the length of the beam required to produce the maximum shear and moment at each point. 3. Using...
2) The beam shown below is part of a floor system and must support a 4-in reinforced concrete slab, terrazzo flooring (1-in), and a channel suspended ceiling system with acoustical fiber tiles. The beam has a tributary width of 6 ft and must also support an 80 psf construction live load. 27"-0" a) Draw the total load diagram b) find the reactions at the supports A and B c) Draw the shear and moment diagrams d) If during construction an...
Q3
(25 pts) 3. For the cantilever beam shown below and to the left, Determine the reactions at the wall at C. Draw the shear (V) and moment (M) diagram for the beam and label the appropriate values. For the given cross section, determine the magnitude of the maximum COMPRESSIVE bending stress and state where this occurs along the length of the beam and along the height of the beam (top or bottom). Sketch the NORMAL stress distribution (profile) for...
a. Draw a free-body diagram for the beam shown above and derive
expressions for the support reactions at A and B
b. Draw internal force (shear and bending moment) diagrams.
c. If a = 10 ft and M0 = 200 ft-lb, use the dimensions of the
beam cross-section, provided on the previous page, to compute the
maximum flexural and shear stresses on the beam cross-section.
d. If the allowable bending stress is 925 psi and the allowable
shear stress is...
Review An engineered wood beam (Figure 1) will replace a portion of a structural wall as part of a house renovation. The beam can be modeled as a simply supported beam with a span L = 18 ft and an uniform distributed load w = 810 lb/ft . The beam is to be constructed as an I-beam with nails securing the flanges to the web. The flanges are 6 in wide and 1 in thick. The web has depth 18...
