![.text main . la $50, x #get base address of x la $s1, y #get base address of y lw $to, 12 ($50)#get data from memory of x[3]](http://img.homeworklib.com/questions/e086bba0-4ef3-11ec-bf75-59208be8325e.png?x-oss-process=image/resize,w_560)
![[0x00400024] 3c011001 lui $1. 4097 [x] [0x00400028] 034300000 ori $16. $1. 0 [x] Ox0040002c1 Ox3c011001 lui $1, 4097 yl [0x00](http://img.homeworklib.com/questions/e13a9160-4ef3-11ec-8edf-7557a940e69d.png?x-oss-process=image/resize,w_560)
I want to calculate Y[2]=X[3]+X[4]
I'm not sure that I wrote right codes.
Homework Answers
Your code is perfect.
From your code, x[3] = -4 and x[4] = 6, so y[2] should be 2 after executing the code.
I have shown you 2 screenshots to confirm that it works. The first screen is just after assembling the code before execution. 2nd screen is after execution. Before execution you can see the data segment that y[2] = 0 and after execution y[2] = 2

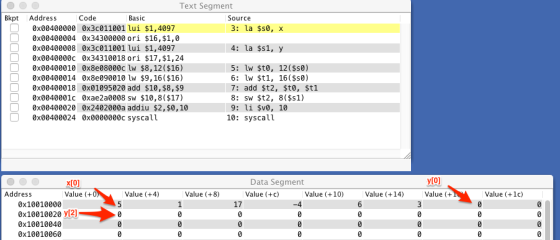

Screen 1 (After assembling , before execution)
=======

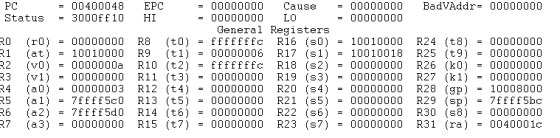

Screen2 (After execution)
======
