Homework Answers
Add Answer to:

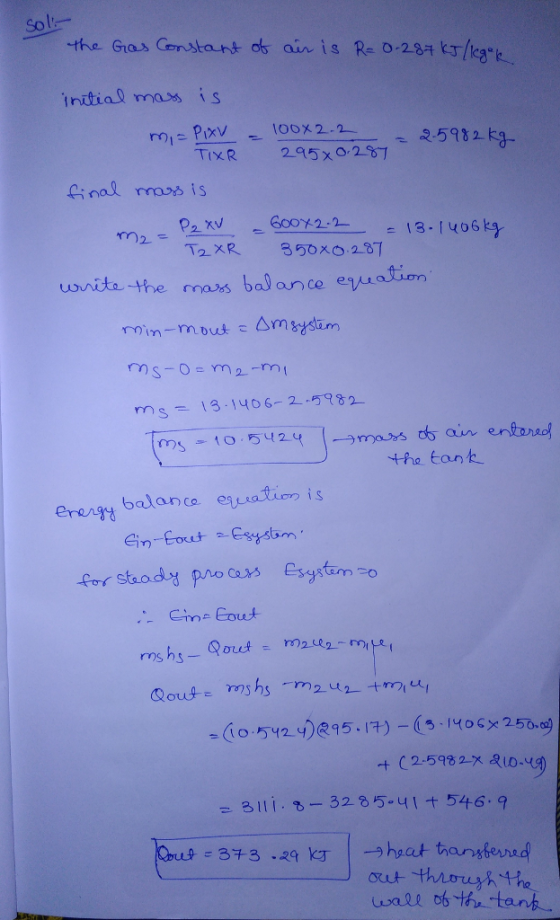

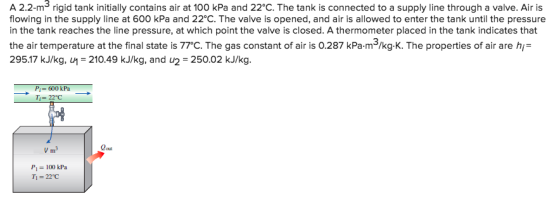

A 2.2-m3 rigid tank initially contains air at 100 kPa and 22°C. The tank is connected...
4) Volume 2.5 m^3 air in a rigid tank with initial pressure 100 kPa and temperature...
4) Volume 2.5 m^3 air in a rigid tank with initial pressure 100 kPa and temperature 25°C There. It is applied to the tank feed line by a valve. Pressure of air flowing through the supply line 600 kPa and temperature is 25°C. By opening the valve, the pressure of the air in the tank is air entering the tank until it is equal to the pressure of the air It is closed. A thermometer placed in the tank lasts...
An insulated 1.7 m3 rigid tank contains air at 500 kPa and 50oC. A valve connected...
An insulated 1.7 m3 rigid tank contains air at 500 kPa and 50oC. A valve connected to the tank is now opened and air is allowed to escape until the pressure inside drops to 200 kPa. The air temperature during this process is maintained constant by an electric resistance heater placed in the tank. a. Determine the mass of air initially, m1 in kg. b. How much air escaped from the tank, mout in kg. c. Determine the electrical work...
NEED HELP A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a...
NEED HELP
A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated water vapor (quality of 1.0) at a pressure of 3 bars (300 kPa). The tank is connected to a supply line valve is opened and 2.0 kg of steam enters the rigid tank, after which the valve is closed. The pressure is measured after the valve is closed and it is found that p2-5 bars (500 kPa). Find (a) the state of the...
SP04 A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated...
SP04 A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated water vapor (quality of 1.0) at a pressure of 3 bars (300 kPa). The tank is connected to a supply line containing steam at a pressure of pL- 10 bars (1000 kPa) and a temperature of TL 500°C. The valve is opened and 2.0 kg of steam enters the rigid tank, after which the valve is closed. The pressure is measured after the valve...
1. A rigid (constant volume) tank sealed by a valve initially contains 100 kg of air...
1. A rigid (constant volume) tank sealed by a valve initially contains 100 kg of air at a pressure of 100 kPa and 300 K. At time t = 0, the valve for the air tank is opened in a controlled manner and air leaks out isothermally (constant temperature) of the tank at a constant mass flow rate of 1 kg/s. The valve is closed after 75 seconds. Answer the following questions: Assuming air is an ideal gas, what is...
A rigid tank that contains 2.4 kg of N2 at 25°C and 550 kPa is connected...
A rigid tank that contains 2.4 kg of N2 at 25°C and 550 kPa is connected to another rigid tank that contains 4.4 kg of O2 at 25°C and 150 kPa. The valve connecting the two tanks is opened, and the two gases are allowed to mix. If the final mixture temperature is 25°C, determine the volume of each tank and the final mixture pressure. The gas constants of N2 and O2 are 0.2968 and 0.2598 kPa.m3/kg.K, respectively. The universal...
An insulated, rigid tank that is initially evacuated is connected by a valve to a nitrogen...
An insulated, rigid tank that is initially evacuated is connected by a valve to a nitrogen supply line. The nitrogen in the line flows at 30°C and 80 kPa. The valve is then opened and nitrogen flows into the tank until the pressure reaches 80 kPa; at which point the valve is closed. Using constant specific heats at room temperature (Cp = 1.039 kJ/kgK, Cv = 0.743 kJ/kgK, k. = 1.3984), determine the final temperature of the nitrogen in the...
A rigid copper tank, initially containing 1 m^3 of air at 295K, 5 bar, is connected...
A rigid copper tank, initially containing 1 m^3 of air at 295K, 5 bar, is connected by a valve to a large supply line carrying air at 295K, 15 bar. The valve is opened only as long as required to fill the tank with air to a pressure of 15 bar. Finally, the air in the tank is at 310 K. The copper tank, which has a mass of 20 kg, is at the same temperature as the air in...
Two rigid tanks are connected by a valve.The left tank with a volume of 1.8m3 contains...
Two rigid tanks are connected by a valve.The left tank with a volume of 1.8m3 contains air at 28.1 C and 575 kPa while the right tank contains 4.2 kg of air at 33.3C and 410 kPa. Now the valve is opened and the air is allowed to mix until the system reaches thermal equilibrium with the surroundings at 13.8C. Determine the volume of the right tank and the final air pressure.
A rigid tank, whose volume is 0.5 m3, initially containing ammonia at 20oC, 1.5 bar, is...
A rigid tank, whose volume is 0.5 m3, initially
containing ammonia at 20oC, 1.5 bar, is connected by a
valve to a large supply line carrying ammonia at 12 bar,
60oC. The valve is opened only long enough to fill the
tank with additional ammonia, bringing the total mass of ammonia in
the tank to 143.36 kg. Finally, the tank holds a two-phase
liquid-vapor mixture at 20oC. Ignoring kinetic and
potential energy effects, determine the heat transfer between the
tank...
4) Volume 2.5 m^3 air in a rigid tank with initial pressure 100 kPa and temperature 25°C There. It is applied to the tank feed line by a valve. Pressure of air flowing through the supply line 600 kPa and temperature is 25°C. By opening the valve, the pressure of the air in the tank is air entering the tank until it is equal to the pressure of the air It is closed. A thermometer placed in the tank lasts...
NEED HELP
A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated water vapor (quality of 1.0) at a pressure of 3 bars (300 kPa). The tank is connected to a supply line valve is opened and 2.0 kg of steam enters the rigid tank, after which the valve is closed. The pressure is measured after the valve is closed and it is found that p2-5 bars (500 kPa). Find (a) the state of the...
SP04 A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated water vapor (quality of 1.0) at a pressure of 3 bars (300 kPa). The tank is connected to a supply line containing steam at a pressure of pL- 10 bars (1000 kPa) and a temperature of TL 500°C. The valve is opened and 2.0 kg of steam enters the rigid tank, after which the valve is closed. The pressure is measured after the valve...
1. A rigid (constant volume) tank sealed by a valve initially contains 100 kg of air at a pressure of 100 kPa and 300 K. At time t = 0, the valve for the air tank is opened in a controlled manner and air leaks out isothermally (constant temperature) of the tank at a constant mass flow rate of 1 kg/s. The valve is closed after 75 seconds. Answer the following questions: Assuming air is an ideal gas, what is...
A rigid tank that contains 2.4 kg of N2 at 25°C and 550 kPa is connected to another rigid tank that contains 4.4 kg of O2 at 25°C and 150 kPa. The valve connecting the two tanks is opened, and the two gases are allowed to mix. If the final mixture temperature is 25°C, determine the volume of each tank and the final mixture pressure. The gas constants of N2 and O2 are 0.2968 and 0.2598 kPa.m3/kg.K, respectively. The universal...
An insulated, rigid tank that is initially evacuated is connected by a valve to a nitrogen supply line. The nitrogen in the line flows at 30°C and 80 kPa. The valve is then opened and nitrogen flows into the tank until the pressure reaches 80 kPa; at which point the valve is closed. Using constant specific heats at room temperature (Cp = 1.039 kJ/kgK, Cv = 0.743 kJ/kgK, k. = 1.3984), determine the final temperature of the nitrogen in the...
A rigid tank, whose volume is 0.5 m3, initially
containing ammonia at 20oC, 1.5 bar, is connected by a
valve to a large supply line carrying ammonia at 12 bar,
60oC. The valve is opened only long enough to fill the
tank with additional ammonia, bringing the total mass of ammonia in
the tank to 143.36 kg. Finally, the tank holds a two-phase
liquid-vapor mixture at 20oC. Ignoring kinetic and
potential energy effects, determine the heat transfer between the
tank...
