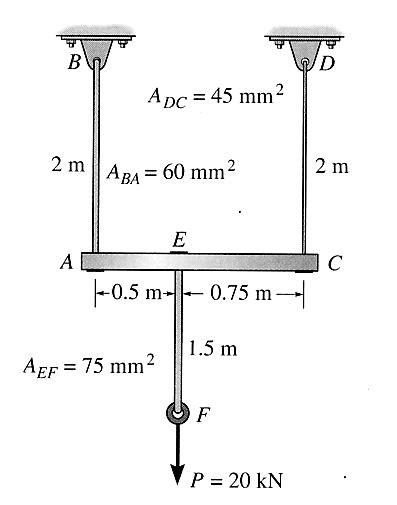

The assembly, shown below in Figure Q5, consists of three titanium rods and a rigid bar AC, which is horizontal prior to application of the load.

The cross-sectional area of each rod is given in Figure Q5.

A vertical force, P = 20 kN, is applied to the ring, F, as shown.

Given: Eti = 350 GPa.

Determine the vertical displacement of point F.

Answer 1
