Question

draw oblique projection, cabinet (half depth)

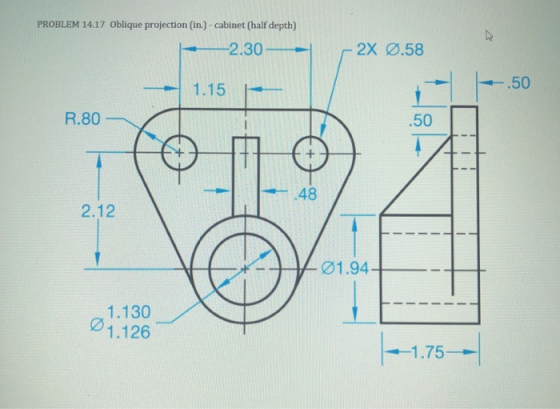

PROBLEM 14.17 Oblique projection (in.) - cabinet (half depth) -2.30– 2x 0.58 1.15 2.50 R.80 50 2.12 01.94 01.126 1.130

Answer 1

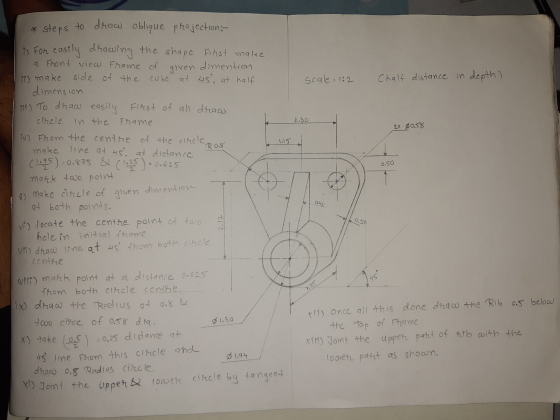

scale=1:2 Chalt distance in depth) 2. 30 2x 90.58 .15 0.50 948 * steps to draw oblique projection:- i For easily drawing the shape First make I a Front view Frame of given dimention i make side of the cube at 45. at half I dimension opp) To draw easily First of all draw circle in the Frame. iv) From the centre of the cliecle of make line at 45. at distance (1075)=0.875 & (1.25) = 0.625 mark two point & make circle of given dimention at both points. vig docate the centre point of two hole in initial frame. vii) draw line at 45 from both circle. centre visi mark point at a distance 0.625 from both circle centre. ix draw the Radius of 0.8 & two circe of 0.58 dia. X) take (os) = 0,25 distance at 45 line from this circle and Ø 1.94 draw 0,8 Radius circle the XD Joint upper & lower circle by tangent O. SO 2.12 0.5 below 01.30 +995 once all this done draw the Rib the top of Frame. Xill) Joint the upper part of rib with lower part as shown. the
