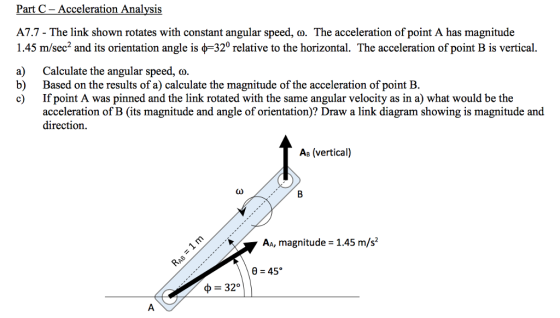

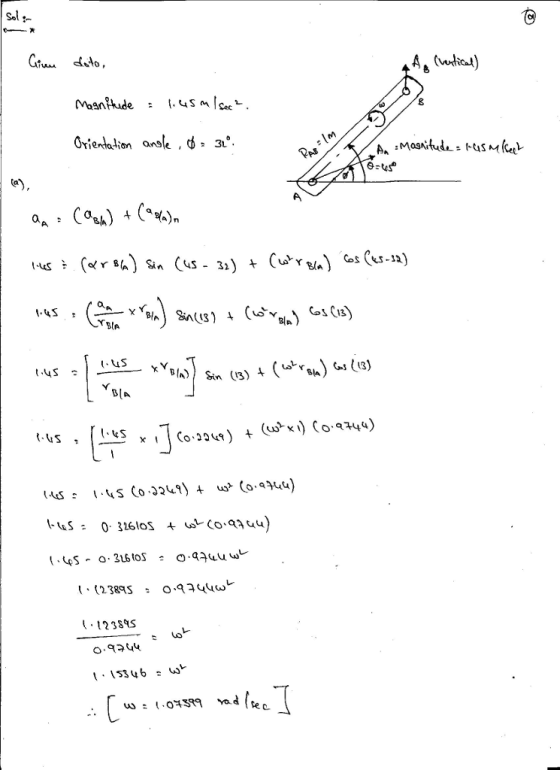

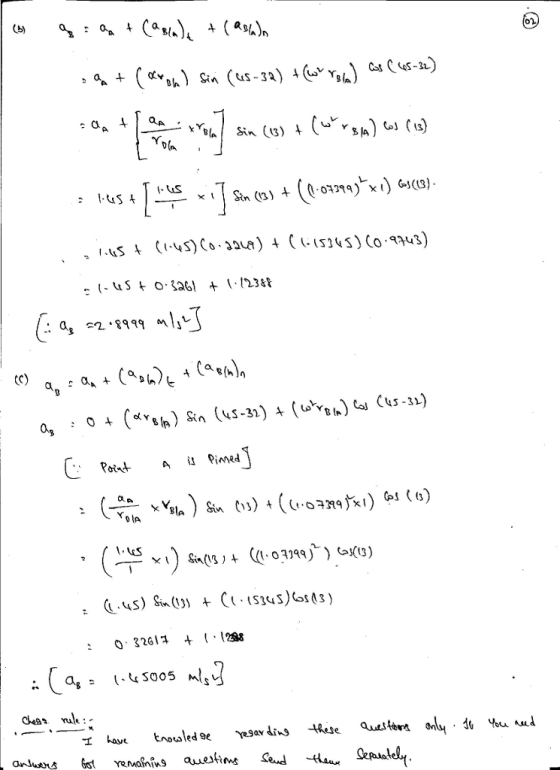

Part C- Acceleration Analysis A7.7 - The link shown rotates with constant angular speed, co. The...
A wheel 2.50 m in diameter lies in a vertical plane and rotates about its central axis with a constant angular acceleration of 3.55 rad/s2
A wheel 2.50 m in diameter lies in a vertical plane and rotates about its central axis with a constant angular acceleration of 3.55 rad/s2. The wheel starts at rest at t = 0, and the radius vector of a certain point P on the rim makes an angle of 57.3° with the horizontal at this time. At t = 2.00 s, find the following. (a) the angular speed of the wheel 7.1 rad/s (b) the tangential speed of the point P (c)...
A wheel starts from rest and rotates with constant angular acceleration to reach an angular speed...
A wheel starts from rest and rotates with constant angular acceleration to reach an angular speed of 12 rad/s in 3.0 s. Find (a) the magnitude of the angular acceleration of the wheel and (b) the angle in radians through which it rotates in this time interval.
An electric drill starts from rest and rotates with a constant angular acceleration. After the drill...
An electric drill starts from rest and rotates with a constant angular acceleration. After the drill has rotated through a certain angle, the magnitude of the centripetal acceleration of a point on the drill is 7.8 times the magnitude of the tangential acceleration. What is the angle?
a) The rotor of a helicopter is gaining angular speed with constant angular acceleration. At t...
a) The rotor of a helicopter is gaining angular speed with constant angular acceleration. At t = 0 it is rotating at 1.25 rad/s. From t = 0 to t = 2.00 s, the rotor rotates through 8.00 rad. What is the angular acceleration of the rotor? b) Through what angle (in radians) does the rotor rotate from t = 0 to t = 4.00 s? in radians c) Shortly after a vinyl record (radius 0.152 m) starts rotating on...
A disk rotates with constant angular acceleration. The initial angular speed of the disk is 2.1π...
A disk rotates with constant angular acceleration. The initial angular speed of the disk is 2.1π rad/s. After the disk rotates through 13.6π radians, the angular speed is 6.2π rad/s. (a) What is the magnitude of the angular acceleration? (b) How much time did it take for the disk to rotate through 13.6π radians? (c) What is the tangential acceleration of a point located at a distance of 9.9 cm from the center of the disk?
The cylinder rotates about the fixed z-axis in the direction indicated. If the speed of point...
The cylinder rotates about the fixed z-axis in the
direction indicated. If the speed of point A is
vA = 3.3 ft/sec and the magnitude of its
acceleration is aA = 50.6 ft/sec2,
determine the magnitudes of the angular velocity and angular
acceleration of the cylinder. Is knowledge of the angle θ
necessary?
y -- TO 4" А * Incorrect Find the magnitude of the angular acceleration of the disk. 235.34 Answer: a = rad/sec the tolerance is +/-2%
RSES/ph222/W1 HW.pdf WI An electric drill starts from rest and rotates with a constant angular acceleration....
RSES/ph222/W1 HW.pdf WI An electric drill starts from rest and rotates with a constant angular acceleration. After the drill has rotated through a certain angle, the magnitude of the centripetal acceleration of a point on the drill is twice the magnitude of the tangential acceleration. What is the angle?
A machine part rotates at an angular speed of 0.69 rad/s; its speed is then increased...
A machine part rotates at an angular speed of 0.69 rad/s; its speed is then increased to 3.3 rad/s at an angular acceleration of 0.56 rad/s2. Find the angle through which the part rotates before reaching this final speed.
A machine part rotates at an angular speed of 0.32 rad/s; its speed is then increased...
A machine part rotates at an angular speed of 0.32 rad/s; its speed is then increased to 2.8 rad/s at an angular acceleration of 0.54 rad/s2. Find the angle through which the part rotates before reaching this final speed.
A machine part rotates at an angular speed of 0.70 rad/s;
A machine part rotates at an angular speed of 0.70 rad/s; its speed is the increased to 2.6 rad/s at an angular acceleration of 0.51 rad/s2. Find the angle through which the part rotates before reaching this final speed.A rotating wheel requires 9.00 s to rotate 30.0 revolutions. Its angular velocity at the end of the 9.00 s interval is 97.0 rad/s. What is the consta angular acceleration of the wheel?
The cylinder rotates about the fixed z-axis in the
direction indicated. If the speed of point A is
vA = 3.3 ft/sec and the magnitude of its
acceleration is aA = 50.6 ft/sec2,
determine the magnitudes of the angular velocity and angular
acceleration of the cylinder. Is knowledge of the angle θ
necessary?
y -- TO 4" А * Incorrect Find the magnitude of the angular acceleration of the disk. 235.34 Answer: a = rad/sec the tolerance is +/-2%
RSES/ph222/W1 HW.pdf WI An electric drill starts from rest and rotates with a constant angular acceleration. After the drill has rotated through a certain angle, the magnitude of the centripetal acceleration of a point on the drill is twice the magnitude of the tangential acceleration. What is the angle?
