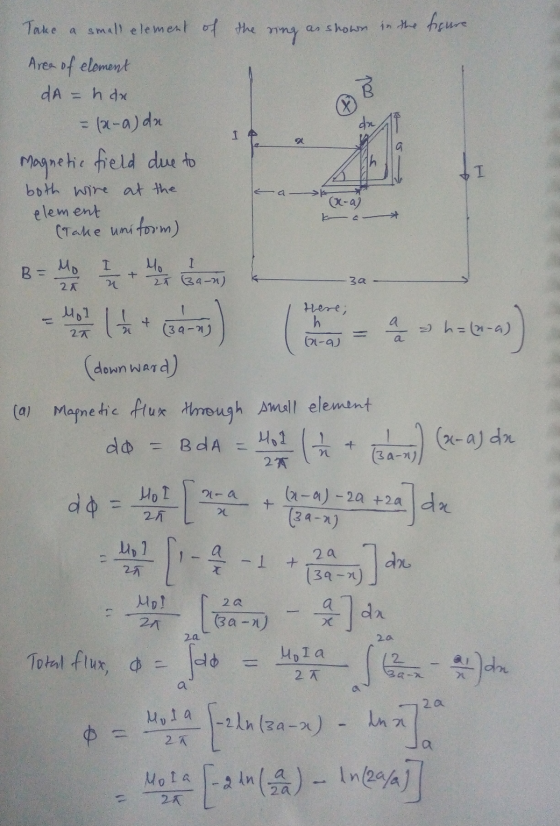

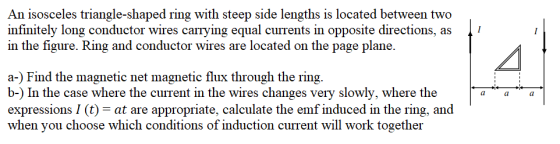

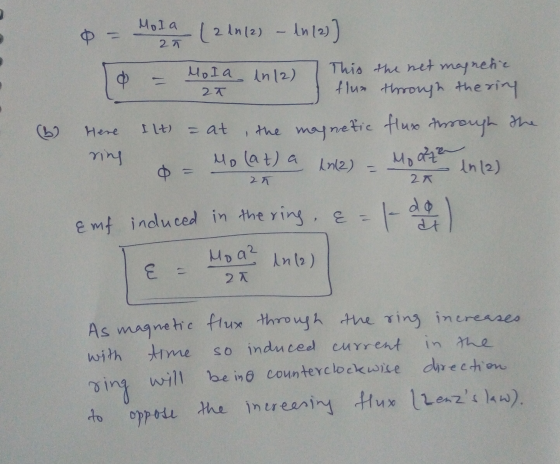

An isosceles triangle-shaped ring with steep side lengths is located between two infinitely long conductor wires...
Two long, parallel wires carry currents of I1 = 4.80 A and I2 = 1.80 A...
Two long, parallel wires carry currents of I1 = 4.80
A and I2 = 1.80 A in opposite directions (see figure
below). The wire 1 is placed at y = + 2.80 cm and wire 2 is at y =
- 2.80 cm. Find the location on y-axis where the net magnetic field
due to these two current carrying wires is zero. ** my answer was
wrong and I can't figure out how to correctly solve this**
Two long, parallel...
. In the figure, two long and straight conductors are parallel to the z-axis and carry currents of 1 -20.0A and 1 15.0 A in opposite directions. Conductor 1 passes through (0, 0) while conductor...
. In the figure, two long and straight conductors are parallel to the z-axis and carry currents of 1 -20.0A and 1 15.0 A in opposite directions. Conductor 1 passes through (0, 0) while conductor 2 passes through 3.00 m, 0). (a) Find the location of the point where the net magnetic field due to the conductors is zero. (b) Suppose a third parallel conductor carrying a current of I,-10.0 A (same direction as Is) is placed where it passes...
A. Two long wires are carrying equal, but opposite-direction current I are located a distance d...
A. Two long wires are carrying equal, but opposite-direction current I are located a distance d apart along the y-axis. Write an expression for the magnetic field B, produced by each wire, at point P, which is equidistant from the wires and a distance R from the plane which contains them. i. ii. 2u, Id Show that the net magnetic field at point P is given by B=- -î . T(4R+d?)
Two long, parallel wires carry currents of I1 = 2.85 A and I2 = 5.45 A...
Two long, parallel wires carry currents of I1 = 2.85 A and I2 =
5.45 A in the directions indicated in the figure below, where d =
19.5 cm. (Take the positive x direction to be to the right.)
(a) Find the magnitude and direction of the magnetic field at a
point midway between the wires.
magnitude______ μT
direction________ ° counterclockwise from the +x axis
(b) Find the magnitude and direction of the magnetic field at
point P, located d =...
(a) (4 marks) Two long, parallel, straight wires spaced d = 0.06 m apart carry currents 4 A and 7 A in opposite directi...
(a) (4 marks) Two long, parallel, straight wires spaced d = 0.06 m apart carry currents 4 A and 7 A in opposite directions. Copy the diagram at right showing the two wires and indicating the direction of the currents in each. (i) Draw a vector indicating the direction of the magnetic field caused by the first wire at the position of the second wire. (ii) Indicate the direction of the force experienced by the second wire due to this...
Two long, parallel wires carry currents of I, = 3.45 A and 1, = 4.55 A...
Two long, parallel wires carry currents of I, = 3.45 A and 1, = 4.55 A in the directions indicated in the figure below, where d = 25.0 cm. (Take the positive x direction to be to the right.) PLEASE COMPLETE ONLY PART (b) FOR CREDIT. PART (a) CAN BE LEFT UNDONE. 10-----1--12 bed (a) PLEASE SKIP THIS PART. PART (a) IS WORTH ZERO POINTS! Find the magnitude and direction of the magnetic field at a point midway between the...
Two infinitely long wires are arranged side by side. The current I, is pointing out of the page.
Problem 6. Two infinitely long wires are arranged side by side. The current I, is pointing out of the page. The current I1 is pointing into the page. The distance between the wires is d. Let the magnitude of the currents be equal. I = I) Find the direction of the total magnetic field at the following coordinates. Give the answer as a positive or negative unit vector i, j, or k.23. At (2d, 0) (A) rightward (B) up (C) out (D)...
TA) Q4: Time (30 minutes) A. The current flowing in a solenoid, of 400 turns, 20...
TA) Q4: Time (30 minutes) A. The current flowing in a solenoid, of 400 turns, 20 cm length & 4 cm diameter, changes with time according to the graph show to right. Derive an expression for the strength of the induced electric field inside the solenoid 0 00 01 02 03 04 Sketch the corresponding graph showing how the induced electric field vary with time. B. The Figure to right shows an infinite straight wire carries a current I is...
#4 TEST 2, PHYS 1442. Instructor: Dr. G. Kolmakov Student Name Date: 5/1/2018 Notes: 1. Show...
#4
TEST 2, PHYS 1442. Instructor: Dr. G. Kolmakov Student Name Date: 5/1/2018 Notes: 1. Show equations you use and show your work. Answers without work shown will not be given any credit. 2. Box the final answers. 3. Show units in the answers. 4. Maximum point for the test is 100. 1. (10 points) What is the resistance of a 35-meter long wire that has a diameter of 0.812*10- m and is made of copper? The resistivity of copper...
only part b pls My NLE 0/1 points Previous Answers Two long, parallel wires carry currents...
only part b pls
My NLE 0/1 points Previous Answers Two long, parallel wires carry currents of 17 - 3.30 A and 1 - 4.85 A in the directions indicated in the figure below, where d = 22.0 cm. (Take the positive x direction to be to the right.) PLEASE COMPLETE ONLY PART (b) FOR CREDIT. PART (a) CAN BE LEFT UNDONE. 10-----1-- 1, hd 0 (a) PLEASE SKIP THIS PART. PART (a) IS WORTH ZERO POINTS! Find the magnitude...
Two long, parallel wires carry currents of I1 = 4.80
A and I2 = 1.80 A in opposite directions (see figure
below). The wire 1 is placed at y = + 2.80 cm and wire 2 is at y =
- 2.80 cm. Find the location on y-axis where the net magnetic field
due to these two current carrying wires is zero. ** my answer was
wrong and I can't figure out how to correctly solve this**
Two long, parallel...
. In the figure, two long and straight conductors are parallel to the z-axis and carry currents of 1 -20.0A and 1 15.0 A in opposite directions. Conductor 1 passes through (0, 0) while conductor 2 passes through 3.00 m, 0). (a) Find the location of the point where the net magnetic field due to the conductors is zero. (b) Suppose a third parallel conductor carrying a current of I,-10.0 A (same direction as Is) is placed where it passes...
A. Two long wires are carrying equal, but opposite-direction current I are located a distance d apart along the y-axis. Write an expression for the magnetic field B, produced by each wire, at point P, which is equidistant from the wires and a distance R from the plane which contains them. i. ii. 2u, Id Show that the net magnetic field at point P is given by B=- -î . T(4R+d?)
Two long, parallel wires carry currents of I1 = 2.85 A and I2 =
5.45 A in the directions indicated in the figure below, where d =
19.5 cm. (Take the positive x direction to be to the right.)
(a) Find the magnitude and direction of the magnetic field at a
point midway between the wires.
magnitude______ μT
direction________ ° counterclockwise from the +x axis
(b) Find the magnitude and direction of the magnetic field at
point P, located d =...
(a) (4 marks) Two long, parallel, straight wires spaced d = 0.06 m apart carry currents 4 A and 7 A in opposite directions. Copy the diagram at right showing the two wires and indicating the direction of the currents in each. (i) Draw a vector indicating the direction of the magnetic field caused by the first wire at the position of the second wire. (ii) Indicate the direction of the force experienced by the second wire due to this...
Two long, parallel wires carry currents of I, = 3.45 A and 1, = 4.55 A in the directions indicated in the figure below, where d = 25.0 cm. (Take the positive x direction to be to the right.) PLEASE COMPLETE ONLY PART (b) FOR CREDIT. PART (a) CAN BE LEFT UNDONE. 10-----1--12 bed (a) PLEASE SKIP THIS PART. PART (a) IS WORTH ZERO POINTS! Find the magnitude and direction of the magnetic field at a point midway between the...
TA) Q4: Time (30 minutes) A. The current flowing in a solenoid, of 400 turns, 20 cm length & 4 cm diameter, changes with time according to the graph show to right. Derive an expression for the strength of the induced electric field inside the solenoid 0 00 01 02 03 04 Sketch the corresponding graph showing how the induced electric field vary with time. B. The Figure to right shows an infinite straight wire carries a current I is...
#4
TEST 2, PHYS 1442. Instructor: Dr. G. Kolmakov Student Name Date: 5/1/2018 Notes: 1. Show equations you use and show your work. Answers without work shown will not be given any credit. 2. Box the final answers. 3. Show units in the answers. 4. Maximum point for the test is 100. 1. (10 points) What is the resistance of a 35-meter long wire that has a diameter of 0.812*10- m and is made of copper? The resistivity of copper...
only part b pls
My NLE 0/1 points Previous Answers Two long, parallel wires carry currents of 17 - 3.30 A and 1 - 4.85 A in the directions indicated in the figure below, where d = 22.0 cm. (Take the positive x direction to be to the right.) PLEASE COMPLETE ONLY PART (b) FOR CREDIT. PART (a) CAN BE LEFT UNDONE. 10-----1-- 1, hd 0 (a) PLEASE SKIP THIS PART. PART (a) IS WORTH ZERO POINTS! Find the magnitude...
