Homework Answers

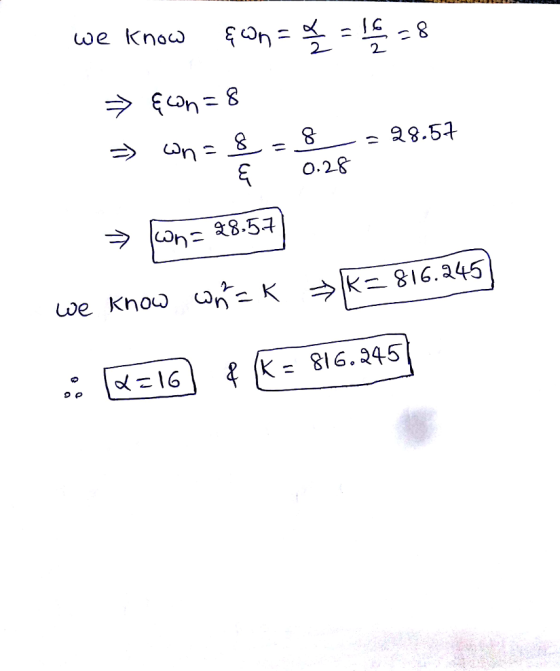

![o.28 KE 816.245 [d:16) f ( ] 10( K= 816,245](http://img.homeworklib.com/questions/99fc1330-5aa5-11ec-a662-91f797bd7e13.png?x-oss-process=image/resize,w_560)
Add Answer to:
Please Show The Steps Clearly

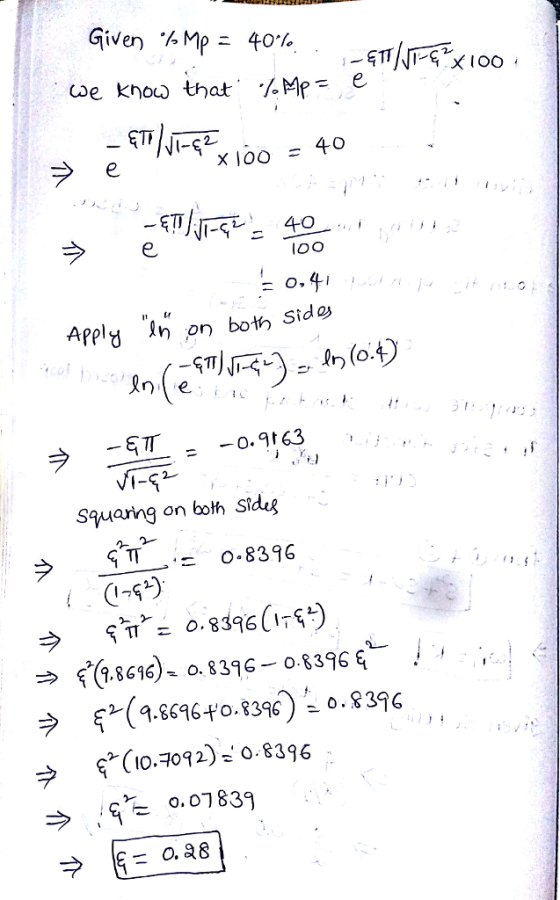

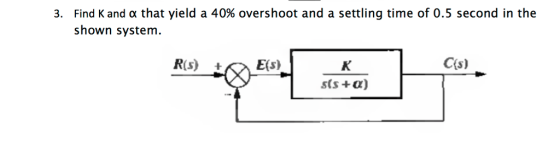

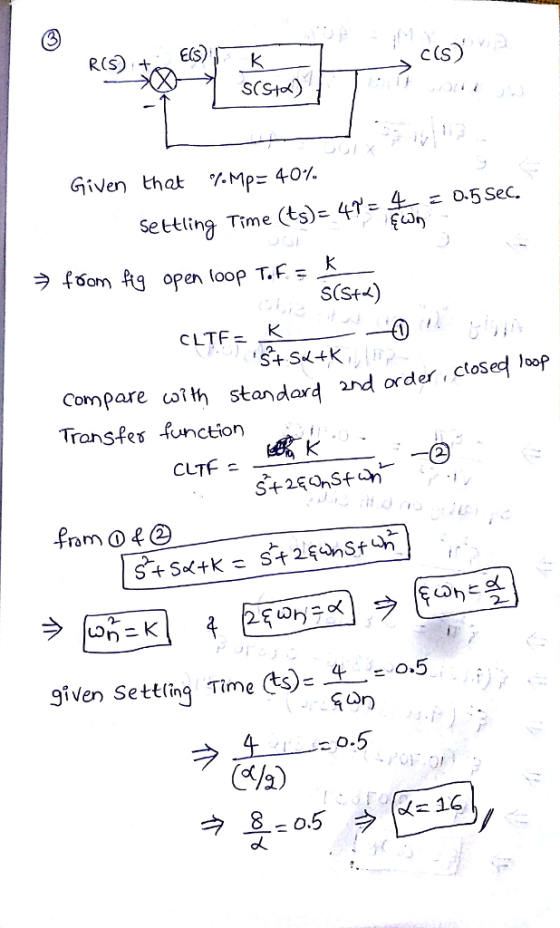

3. Find K and ? that yield a 40% overshoot and...
