Question

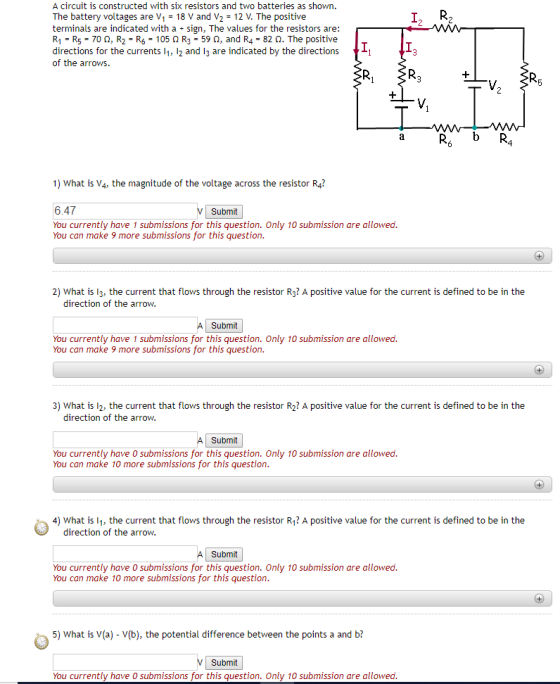

A circuit is constructed with six resistors and two batteries as shown. The battery voltages are V1 18 V and V212 V. The positive terminals are indicated with a sign, The values for the resistors are: RI-R5-70 Ω, R2-R6-105 Ω R3-59 Ω, and R4-82 Ω. The positive directions for the currents l1, 12 and 13 are indicated by the directions of the arrows V. 1) What is V4, the magnitude of the voltage across the resistor R4? 6.47 You currently have 1 submissions for this question. Only 10 submission are allowed You can make 9 more submissions for this question Submit 2) What is 13, the current that flows through the resistor R3? A positive value for the current is defined to be in the direction of the arrow Submit You currently have 1 submissions for this question. Only 10 submission are allowed You can make 9 more submissions for this question 3) What is 12, the current that flows through the resistor R2? A positive value for the current is defined to be in the direction of the arrow Submit You currently have 0 submissions for this question. Only 10 submission are allowed You can make 10 more submissions for this question 4) What is 11, the current that flows through the resistor R1? A positive value for the current is defined to be in the direction of the arrow Submit You currently have 0 submissions for this question. Only 10 submission are allowed You can make 10 more submissions for this question 5) What is V(a) - V(b), the potential difference between the points a and b? Submit You currently have 0 submissions for this question. Only 10 submission are allowed

Please help with all parts of the question. Any work shown would be greatly appreciated! Thank you in advance!

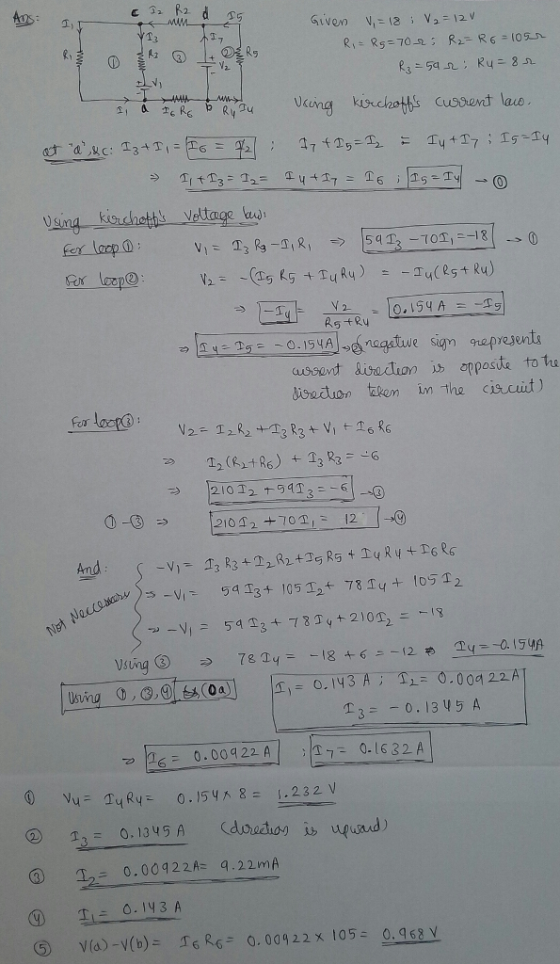

Answer 1
