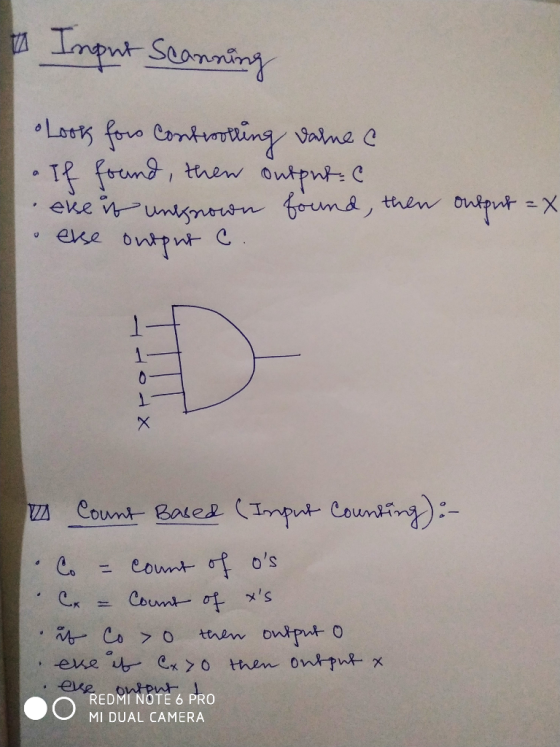

4. 3.13 Outline evaluation routines for an XOR gate, based on: (1) input scanning, and (2)...
3.30 An Exclusive OR (XOR) gate is a 2-input gate whose output is 1 if and only if exactly one of its inputs is 1. Write a truth table, sum-of-products expression, and corresponding AND-OR circuit for the Exclusive OR function.
Change this code to implement a 2-input XOR gate starting from two AND gates, two inverters, and one OR gate. module Full Adder ( input X1, X2, Cin, output s, Cout) wire al, a2, a3; xor ul (al,X1,X2) and u2 (a2,x1,x2); and u3 (a3,al,cin) or u4 (Cout,a2,a3); xor u5 (S,al,cin); endmodule
1) Draw the diagram of XOR gate using AND, OR and NOT gates only 2) Draw the diagram of this function (x,y) = (x’y + xy’ + x’y’) using NOT, AND gates only 3) Draw the diagram of this function (x,y,z,w) = (x’ + y’).(z + w) using 2 input NAND gates only Draw the diagram of this function (x,y,z) = xy’z using 2 input NAND gates only.
FInd: XOR Gate
1. Truth table
2. Boolean Expression
3. Write pin # of gate using pin configuration
Findi 1. Truth Table 2. Boolean Expression 3. Write pin # of gate using pin Configuration BT QB o lo To
Q#4: (2 marks) Implement the logic function F (A,B) = (A XOR B) + A. B , using only Half Subtractor and 2-input OR gate.
1. Determine 2 ways to implement an inverter with a 2-input NAND gate. 2. Implement a 3-input NAND gate function using 2-input NAND gates only, draw schematics. 3. Implement a 2-input OR function using 2-input NAND gates only, draw schematics. 4. (A) Implement the function using one 2-input OR gate, one 2- input AND gate and one 2-input NAND gate. (B) Implement the same function with only NAND gates. (C) Make up the truth table for the function. What is...
(1)Try to use NAND gates to achieve the truth table function of an XOR gate (2) Try to design a clicker for three people, it just needs two people to agree to pass. A,B,C indicate the people, 0 means don't agree, 1 means agree. If it passes the result is 1. Please write the truth table, the SOP (sum of products) equation and draw the logic circuit for it. (3)Use a Karnaugh-map to simplify the following Boolean function: F= AB'C'+A'B'C'+AB'C+A'B'C+AB...
need help please thanks!
Draw a gate-level schematic for the fall-adder module. XOR gates can be used to usplement Sotput; two levels ofNAND ples are handy for tn lema îngC, as a sum of products Create a MOSFET cirout for each of the logic gates you used in step 1 Your lab assigment this week is to design and test a CMOS circuit that performs addition Some suggestions on how to proceed Let's start with a simple ripple-cany adder based...
Building and testing basic combinational circuits using Verilog HDL Description: Build and test the following circuits using gate-level modeling in Verilog HDL 1.3-input majority function 2.Conditional inverter (see the table below: x - control input, y -data input). Do NOT use XOR gates for the implementation. Output 3. Two-input multiplexer (see the table below: x.y -data inputs, z- control input) Output 4. 1-bit half adder. 5. 1-bit full adder by cascading two half adders 6.1-bit full adder directly (as in...
1. How many rows must a truth table have in order to describe a 4- input AND gate? Which input will make the output HIGH? 2. Which output is the unique one in a 3-input OR gate?
