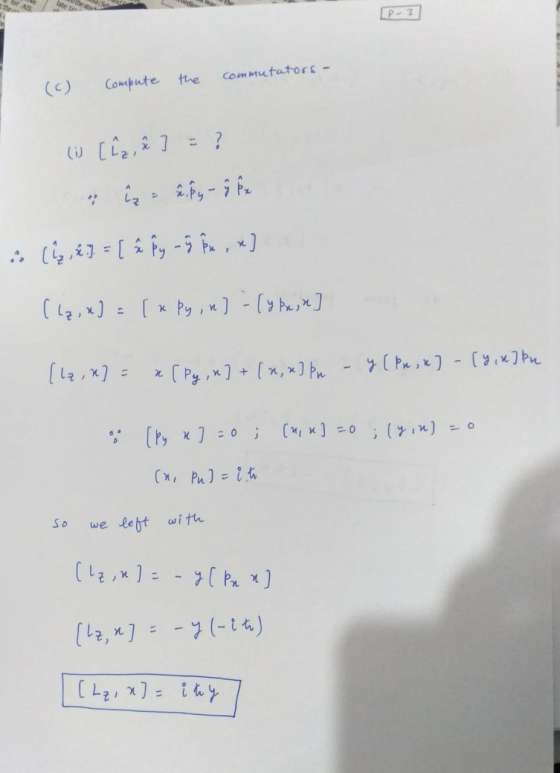

![lor AIS 20 Latet Compute the commutators- (i) [[z, ? ] = ? • iz = .By - fe i ( ₂ , &. 3. = [ ê By ĝ for x] (lz, n] = [upy , n](http://img.homeworklib.com/questions/0a6369b0-6123-11ec-a49a-49c028adf676.png?x-oss-process=image/resize,w_560)

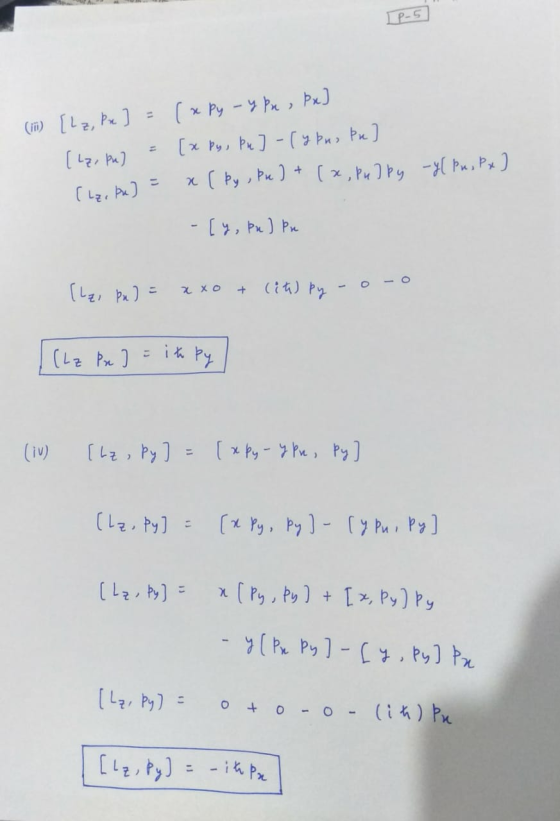

![(m) [Lz, Pe] = [lz, Pu] = (lze ku] = [xpy - y Pes px] [xpy, Pu] - [ykus Pe] x (by , Pe] + [x, Pu] by -yl Pu, Px] - [y, Pu] Pe](http://img.homeworklib.com/questions/0b9b3730-6123-11ec-97dd-45b7a607c609.png?x-oss-process=image/resize,w_560)

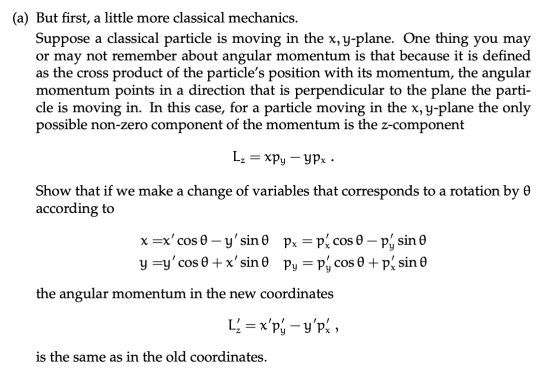

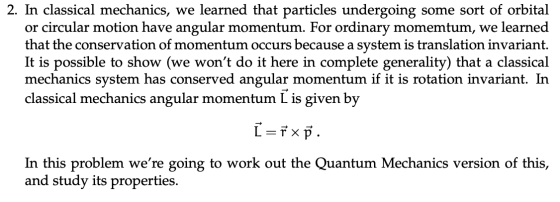

2. In classical mechanics, we learned that particles undergoing some sort of orbital or circular motion...
Problem 1 (5 pt.) In the last class, we will consider the gyroscopie motion of a heavy symmetrical top whose lowest point is fixed. The effective potential energy of the top is given by + mgl cos ?, where M, is the constant angular momentum component along the vertical Z axis (fixed), Ms is the constant angular momentum component along the zs axis (the moving axis of symmetry of the top), i is the principal moment of inertia about the...
Problem 2 (10 pt.) A homogeneous sphere of mass m and radius b is rolling on an inclined plane with inclination angle ? in the gravitational field g. Follow the steps below to find the velocity V of the center of mass of the sphere as a function of time if the sphere is initially at rest. Bold font represents vectors. There exists a reaction force R at the point of contact between the sphere and the plane. The equations...
8.4 The Two-Dimensional Central-Force Problem The 2D harmonic oscillator is a 2D central force problem (as discussed in TZD Many physical systems involve a particle that moves under the influence of a central force; that is, a force that always points exactly toward, or away from, a force center O. In classical mechanics a famous example of a central force is the force of the sun on a planet. In atomic physics the most obvious example is the hydrogen atom,...
