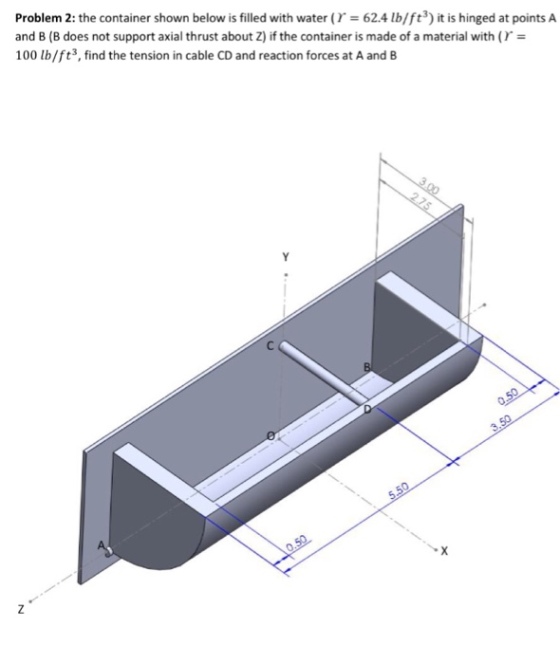

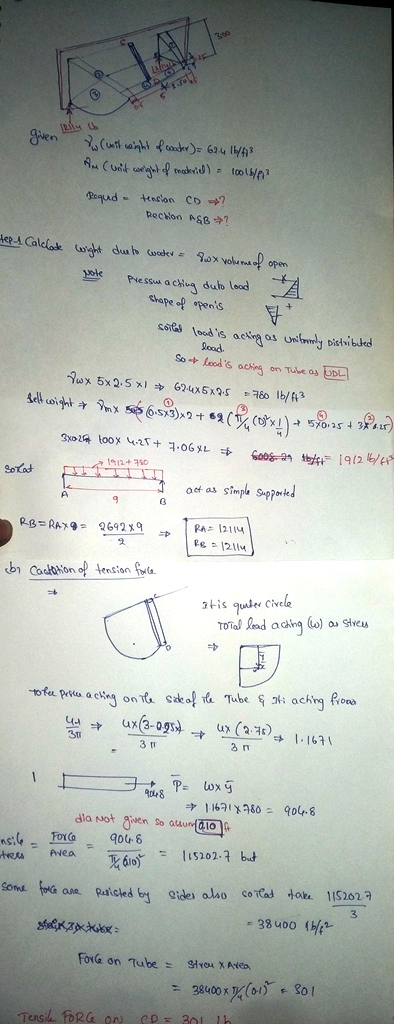

Problem 2: the container shown below is filled with water( 62.4 lb/ft3) it is hinged at...
For the concrete dam shown below, determine the minimum width in feet of the dam, b, so that it does not tip about its toe, A. Take the unit weight of concrete as γconcrete = 147 lb ft3 and...
For the concrete dam shown below, determine the minimum width in
feet of the dam, b, so that it does not tip about its toe,
A. Take the unit weight of concrete as
γconcrete = 147
lb
ft3
and that of water as γwater = 62.4
Determine the coefficient of friction required to prevent the dam
from slipping downstream.
μs =
https://www.webassign.net/web/Student/Assignment Responses/last?dep-20633008 and that of water as i3 For the concrete dam shown below, determine the minimurn width in...
Problem #2 (50 point): The bracket BCD is hinged at Cand attached to a control cable...
Problem #2 (50 point): The bracket BCD is hinged at Cand attached to a control cable at B. For the loading shown below, draw the free-body diagram and determine: (a) the tension in cable AB, (b) the reaction at C. 4591 459N -0.4 m 0,41 0,4 m
PROBLEM 4: (30 POINTS) A 1,000 lb. WEIGHT IS HUNG FROM THE END OF A PIPE...
PROBLEM 4: (30 POINTS) A 1,000 lb. WEIGHT IS HUNG FROM THE END OF A PIPE WHICH IS FASTENED TO A BALL & SOCKET JOINT AT A, AND SUPPORTED BY TWO CABLES CB & BD AS SHOWN. NEGLECTING THE WEIGHT OF THE PIPE, DETERMINE THE FORCES IN BOTH CABLES AND THE SUPPORT REACTION AT A. D Cable 4 60° 1 C. B Cable 1.000 lb 3 А Bar Ball & Socket Joint 6'
can you explain how can I solve this problem? Water at 60°F (15.6°C) (density 62.37 lb/ft3...
can you explain how can I solve this problem?
Water at 60°F (15.6°C) (density 62.37 lb/ft3 and viscosity 1.129 cp) is to flow from reservoir A to reservoir B through a commercial steel pipe 6 in. in diameter as shown in Figure. The system contains sharped-edged entrance and exit, globe valve, and two standard 90° elbows. What should be the flow of water through the system? 00m Globe valve wide-open 500 m Sharp edged exit 100 m 100m Sharp-edge entrance
For the concrete dam shown below, determine the minimum width in feet of the dam, b, so lb 3 that it does not tip about its toe, A. Take the unit weight of concrete as yconcrete- 142 ft lb and that o...
For the concrete dam shown below, determine the minimum width in feet of the dam, b, so lb 3 that it does not tip about its toe, A. Take the unit weight of concrete as yconcrete- 142 ft lb and that of water as Ywater - 62.4 3 ft 66 ft ft Determine the coefficient of friction required to prevent the dam from slipping downstream
For the concrete dam shown below, determine the minimum width in feet of the dam,...
Solve ay four ME 246 Q.i A container of weight W - 1165 N is supported by threecables 530 mm as shown. Determine th...
Solve ay four ME 246 Q.i A container of weight W - 1165 N is supported by threecables 530 mm as shown. Determine the tension in each cable. 600 mm The uniforma steel boom in Fit 22a weighs soo ib. It is supported by two cabks CE uai CD. and a ball-and socket joint at A. The cable supporting the 1000-6 dasses over a small pulley at B. Find the tension in cable CE and in cable 1 4 rt...
Check my work 4 Problem 04.105 - Boom support 1 points A 10-ft boom is acted...
Check my work 4 Problem 04.105 - Boom support 1 points A 10-ft boom is acted upon by the 820-lb force shown in the figure. Determine the tension in each cable and the reaction at the ball-and-socket joint at A. (Round the final answer to one decimal place.) eBook 6 ft Hint E Print 6 ft References D B 7 ft 6 ft C 4 ft w The tension in cable BD is The tension in cable BE is The...
The container shown in (Figure 1) is filled with oil. It is open to the atmosphere...
The container shown in (Figure 1) is filled with oil. It is open
to the atmosphere on the left.What is the pressure at point A?What
is the pressure difference between points A and B? What is the
pressure difference between points A and C?
A copper block is removed from a 340 ?C oven and dropped into
1.20 kg of water at 21.0 ?C. The water quickly reaches 27.0 ?C and
then remains at that temperature.What is the mass of...
Problem (20 pts) The cross section through the fuselage of an aircraft is shown. The interior of the aircraft is pressurized at 2000 lb/ft2 (air pressure at sea level), and the outside of the aircraf...
Problem (20 pts) The cross section through the fuselage of an aircraft is shown. The interior of the aircraft is pressurized at 2000 lb/ft2 (air pressure at sea level), and the outside of the aircraft is at a pressure of 600 lb/ft2 (air pressure at 30,000 ft altitude). Assume the air pressure outside the aircraft is uniform over the surface of the fuselage. The door ABC has quarter-circular shape with 10 ft depth (into the plane of the figure); it...
Problem No. 2 (100 points) For the Baltimore bridge truss shown below answer the following questions:...
Problem No. 2 (100 points) For the Baltimore bridge truss shown below answer the following questions: 1) Calculate Reaction Forces (FBD is already drawn assuming a pin support at A and a roller support at I) (10) 2) What is status of the Truss (determinate or indeterminate)? (10) 3) Obtain ALL the Zero force member (30) 4) Using method of Joints, find force in member PF and PG specify if these forces are in Tension or Compression? (25) 5) Using...
For the concrete dam shown below, determine the minimum width in
feet of the dam, b, so that it does not tip about its toe,
A. Take the unit weight of concrete as
γconcrete = 147
lb
ft3
and that of water as γwater = 62.4
Determine the coefficient of friction required to prevent the dam
from slipping downstream.
μs =
https://www.webassign.net/web/Student/Assignment Responses/last?dep-20633008 and that of water as i3 For the concrete dam shown below, determine the minimurn width in...
Problem #2 (50 point): The bracket BCD is hinged at Cand attached to a control cable at B. For the loading shown below, draw the free-body diagram and determine: (a) the tension in cable AB, (b) the reaction at C. 4591 459N -0.4 m 0,41 0,4 m
PROBLEM 4: (30 POINTS) A 1,000 lb. WEIGHT IS HUNG FROM THE END OF A PIPE WHICH IS FASTENED TO A BALL & SOCKET JOINT AT A, AND SUPPORTED BY TWO CABLES CB & BD AS SHOWN. NEGLECTING THE WEIGHT OF THE PIPE, DETERMINE THE FORCES IN BOTH CABLES AND THE SUPPORT REACTION AT A. D Cable 4 60° 1 C. B Cable 1.000 lb 3 А Bar Ball & Socket Joint 6'
can you explain how can I solve this problem?
Water at 60°F (15.6°C) (density 62.37 lb/ft3 and viscosity 1.129 cp) is to flow from reservoir A to reservoir B through a commercial steel pipe 6 in. in diameter as shown in Figure. The system contains sharped-edged entrance and exit, globe valve, and two standard 90° elbows. What should be the flow of water through the system? 00m Globe valve wide-open 500 m Sharp edged exit 100 m 100m Sharp-edge entrance
For the concrete dam shown below, determine the minimum width in feet of the dam, b, so lb 3 that it does not tip about its toe, A. Take the unit weight of concrete as yconcrete- 142 ft lb and that of water as Ywater - 62.4 3 ft 66 ft ft Determine the coefficient of friction required to prevent the dam from slipping downstream
For the concrete dam shown below, determine the minimum width in feet of the dam,...
Solve ay four ME 246 Q.i A container of weight W - 1165 N is supported by threecables 530 mm as shown. Determine the tension in each cable. 600 mm The uniforma steel boom in Fit 22a weighs soo ib. It is supported by two cabks CE uai CD. and a ball-and socket joint at A. The cable supporting the 1000-6 dasses over a small pulley at B. Find the tension in cable CE and in cable 1 4 rt...
Check my work 4 Problem 04.105 - Boom support 1 points A 10-ft boom is acted upon by the 820-lb force shown in the figure. Determine the tension in each cable and the reaction at the ball-and-socket joint at A. (Round the final answer to one decimal place.) eBook 6 ft Hint E Print 6 ft References D B 7 ft 6 ft C 4 ft w The tension in cable BD is The tension in cable BE is The...
The container shown in (Figure 1) is filled with oil. It is open
to the atmosphere on the left.What is the pressure at point A?What
is the pressure difference between points A and B? What is the
pressure difference between points A and C?
A copper block is removed from a 340 ?C oven and dropped into
1.20 kg of water at 21.0 ?C. The water quickly reaches 27.0 ?C and
then remains at that temperature.What is the mass of...
Problem (20 pts) The cross section through the fuselage of an aircraft is shown. The interior of the aircraft is pressurized at 2000 lb/ft2 (air pressure at sea level), and the outside of the aircraft is at a pressure of 600 lb/ft2 (air pressure at 30,000 ft altitude). Assume the air pressure outside the aircraft is uniform over the surface of the fuselage. The door ABC has quarter-circular shape with 10 ft depth (into the plane of the figure); it...
Problem No. 2 (100 points) For the Baltimore bridge truss shown below answer the following questions: 1) Calculate Reaction Forces (FBD is already drawn assuming a pin support at A and a roller support at I) (10) 2) What is status of the Truss (determinate or indeterminate)? (10) 3) Obtain ALL the Zero force member (30) 4) Using method of Joints, find force in member PF and PG specify if these forces are in Tension or Compression? (25) 5) Using...
