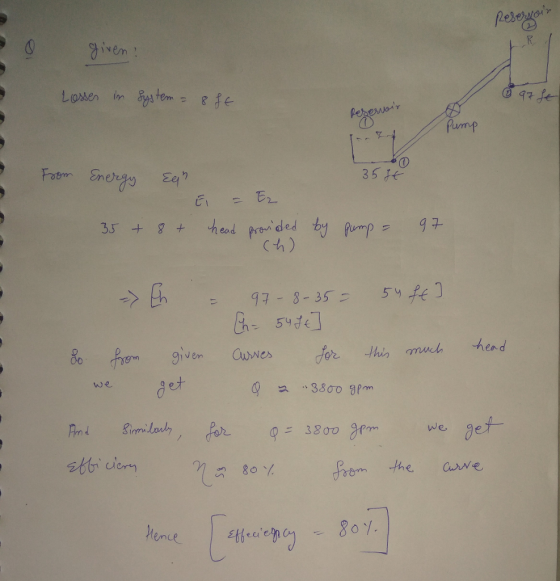

![iven Loser in Bs tomfe 47 fセ Pump 35 h eod proa ded by Ch) 97-8-35-54 te] yeron given w e 3800 3Pm 9:38 008m wege the rve 80、](http://img.homeworklib.com/questions/fb126e00-63af-11ec-8abb-815d5bd374cf.png?x-oss-process=image/resize,w_560)
Add Answer to:

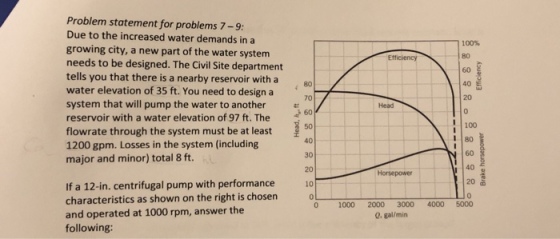

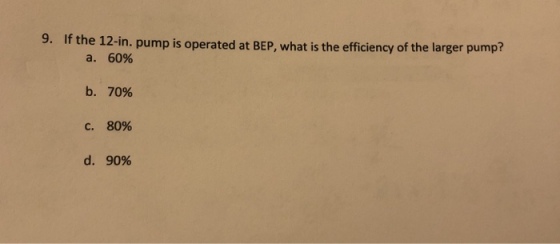

Problem statement for problems 7-9: Due to the increased water demands in a growing city, a...
3. A pump is to be used to pump water from the lower re servoir at an elevation of 10 ft The pump has a characteristic curve ft up to a reservoir shown in the graph below. What will be the volum...
3. A pump is to be used to pump water from the lower re servoir at an elevation of 10 ft The pump has a characteristic curve ft up to a reservoir shown in the graph below. What will be the volumetric flow rate of the water in this system? Elevation- 35 ft L- 50 t D-10 in -0.020 L-950 ft rid- Elevation 20A D-10 i -0.020 Elevation-15ft 80 60 40 Pump curve 20 1000 2000 3000 4000 5000 O,...
Two identical pumps in parallel configuration will be used to draw water from Reservoir A (water...
Two identical pumps in parallel configuration will be used to draw water from Reservoir A (water elevation 772') up to Reservoir B (water elevation -878'). The pipe will be 4,860 long, 2' diameter, with a Hazen-Williams coefficient of 100. Assume minor losses are negligible. The pump performance curve from thee manufacturer for one of these pumps is shown below. Determine the operation point for the two pumps in parallel by plotting below. Single pump 600 S00 400 Hp [ft] 300...
The Water at pipe discharges above a tank on the mountain at an elevation that is...
The Water at pipe discharges above a tank on the mountain at an elevation that is 60°F is pumped from a reservoir at sea level to the top of a 4000 ft above the e pipeline itself consists of schedule 80, wrought iron/steel pipe. The pipe is 5" (sch 80) section of pipe is 5000 ft long containing 20 standard 90° elbows and 20 standard 45° elbows. If you have a 20,000 hp pump and motor that is driving it...
The following figure depicts a pipe system connecting two reservoirs. No minor losses should be considered...
The following figure depicts a pipe system connecting two reservoirs. No minor losses should be considered in this problem. Assume that y=62.4 lb/ft. The water surface elevation at Reservoir A is 24 feet, and at Reservoir Dthe water surface elevation is 100 feet. The pump supplies a head of He=100 feet. The pipe system consists of pipes in series with the following characteristics: Pipe ABBCCD Diameter (in) 18 18 Length (ft) 4,000 1,000 2,000 Darcyf 0.015 0.020 0.015 la) Calculate...
Problem 1 (25 points) A pumping system is designed to pump from a storage reservoir located...
Problem 1 (25 points) A pumping system is designed to pump from a storage reservoir located at an elevation of 1015 feet. The pump elevation is 1005 feet. The pump discharge flowrate is 4500 gpm and the water temperature is 100°F (1 atm). Between the storage tank and the pump is 30 feet of 14-in DIP pipe (f =0.018) with one rounded entrance (kent = 0.05), and two 45 -degree bends (kas = 0.30). What is the NPSH (in ft)...
You have to do Problem 3, while using the diagram in problem 2 as reference. Problem#3:...
You have to do Problem 3, while using the diagram in problem 2
as reference.
Problem#3: If the elevation change in the above Pb#3 is 150 ft, what would be the flow rate with the given pump? What would be the flow rate if two of the same pumps are used in series instead of one? (Assume that the friction factor is the same 0.02 for the purpose of calculations although it does vary). Appx Ans: 175 gpm, 440 gpm....
Everything I have for this question is attached. water is being pumped from a reservoir to...
Everything I have for this question is attached.
water is being pumped from a reservoir to an upper tank whose surface is 100 feet nigher. Both surfaces are open to the atmosphere. The system will be operated m Leadville, Colorado where g = 32.12 ft/s. The system consists of the following: • 800 feet of 3-nom sch 40 commercial steel pipe. ID : 3.068 in. • An inward projecting entrance. K = 160 km 1,0 • A projecting exit.kohool Six...
11. Water is pumped from a reservoir at a lower elevation to an elevated reservoir by...
11. Water is pumped from a reservoir at a lower elevation to an elevated reservoir by using a suitable pump. The lower reservoir water level have an atmospheric pressure head of I and is at an elevation of 20 ft. while the intake/suction side of the pump is at an elevation of 25 ft. The water is pumped at a rate of 425 gpm in a 6" diameter pipe, friction factor () is 0.017 and the length of pipe is...
Problem 1: In the reservoir-pipe system below, water is supplied from reservoir A to reservoir B...
Problem 1: In the reservoir-pipe system below, water is supplied from reservoir A to reservoir B with a flowrate of 50 L/S. In the system, a pump with an efficiency value of n=0.70 is used. Length of the pipeline is L=5000m, pipe diameter is D=200 mm and the elevation difference between reservoirs is 40 m. According to this, a) Determine the required pump head (Hp). b) Find the required nominal pump power. c) Draw the relative energy grade line of...
Water is pumped from a well to a water tower (an above-ground reservoir) through a 330...
Water is pumped from a well to a water tower (an above-ground reservoir) through a 330 ft long galvanized iron pipe (ε-0.0005 ft) with a 2-in diameter. The water surface in the well is 10 ft below the ground and the water surface in the tower is 60 ft above the ground. The water is to be delivered at a rate of at least 370 L/min. The sum of the minor loss coefficients is 2.1 a) Using the pump performance...
3. A pump is to be used to pump water from the lower re servoir at an elevation of 10 ft The pump has a characteristic curve ft up to a reservoir shown in the graph below. What will be the volumetric flow rate of the water in this system? Elevation- 35 ft L- 50 t D-10 in -0.020 L-950 ft rid- Elevation 20A D-10 i -0.020 Elevation-15ft 80 60 40 Pump curve 20 1000 2000 3000 4000 5000 O,...
Two identical pumps in parallel configuration will be used to draw water from Reservoir A (water elevation 772') up to Reservoir B (water elevation -878'). The pipe will be 4,860 long, 2' diameter, with a Hazen-Williams coefficient of 100. Assume minor losses are negligible. The pump performance curve from thee manufacturer for one of these pumps is shown below. Determine the operation point for the two pumps in parallel by plotting below. Single pump 600 S00 400 Hp [ft] 300...
The Water at pipe discharges above a tank on the mountain at an elevation that is 60°F is pumped from a reservoir at sea level to the top of a 4000 ft above the e pipeline itself consists of schedule 80, wrought iron/steel pipe. The pipe is 5" (sch 80) section of pipe is 5000 ft long containing 20 standard 90° elbows and 20 standard 45° elbows. If you have a 20,000 hp pump and motor that is driving it...
The following figure depicts a pipe system connecting two reservoirs. No minor losses should be considered in this problem. Assume that y=62.4 lb/ft. The water surface elevation at Reservoir A is 24 feet, and at Reservoir Dthe water surface elevation is 100 feet. The pump supplies a head of He=100 feet. The pipe system consists of pipes in series with the following characteristics: Pipe ABBCCD Diameter (in) 18 18 Length (ft) 4,000 1,000 2,000 Darcyf 0.015 0.020 0.015 la) Calculate...
Problem 1 (25 points) A pumping system is designed to pump from a storage reservoir located at an elevation of 1015 feet. The pump elevation is 1005 feet. The pump discharge flowrate is 4500 gpm and the water temperature is 100°F (1 atm). Between the storage tank and the pump is 30 feet of 14-in DIP pipe (f =0.018) with one rounded entrance (kent = 0.05), and two 45 -degree bends (kas = 0.30). What is the NPSH (in ft)...
You have to do Problem 3, while using the diagram in problem 2
as reference.
Problem#3: If the elevation change in the above Pb#3 is 150 ft, what would be the flow rate with the given pump? What would be the flow rate if two of the same pumps are used in series instead of one? (Assume that the friction factor is the same 0.02 for the purpose of calculations although it does vary). Appx Ans: 175 gpm, 440 gpm....
Everything I have for this question is attached.
water is being pumped from a reservoir to an upper tank whose surface is 100 feet nigher. Both surfaces are open to the atmosphere. The system will be operated m Leadville, Colorado where g = 32.12 ft/s. The system consists of the following: • 800 feet of 3-nom sch 40 commercial steel pipe. ID : 3.068 in. • An inward projecting entrance. K = 160 km 1,0 • A projecting exit.kohool Six...
11. Water is pumped from a reservoir at a lower elevation to an elevated reservoir by using a suitable pump. The lower reservoir water level have an atmospheric pressure head of I and is at an elevation of 20 ft. while the intake/suction side of the pump is at an elevation of 25 ft. The water is pumped at a rate of 425 gpm in a 6" diameter pipe, friction factor () is 0.017 and the length of pipe is...
Problem 1: In the reservoir-pipe system below, water is supplied from reservoir A to reservoir B with a flowrate of 50 L/S. In the system, a pump with an efficiency value of n=0.70 is used. Length of the pipeline is L=5000m, pipe diameter is D=200 mm and the elevation difference between reservoirs is 40 m. According to this, a) Determine the required pump head (Hp). b) Find the required nominal pump power. c) Draw the relative energy grade line of...
Water is pumped from a well to a water tower (an above-ground reservoir) through a 330 ft long galvanized iron pipe (ε-0.0005 ft) with a 2-in diameter. The water surface in the well is 10 ft below the ground and the water surface in the tower is 60 ft above the ground. The water is to be delivered at a rate of at least 370 L/min. The sum of the minor loss coefficients is 2.1 a) Using the pump performance...
