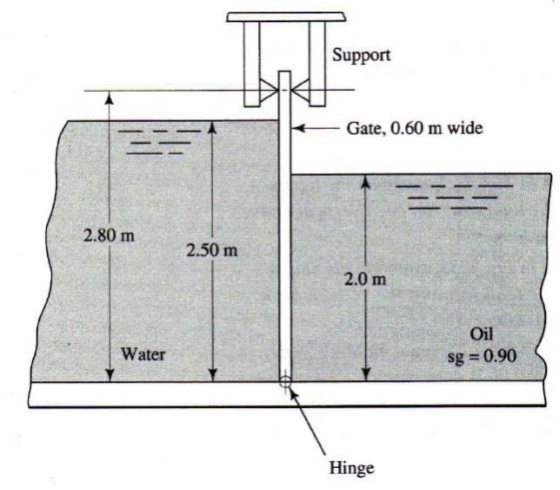

A 0.6m wide gate in a Hostess ® cake factory is used to divide two ingredients: water and oil.
A 0.6m wide gate in a Hostess ® cake factory is used to divide two ingredients: water and oil.
Determine:
1. The magnitude and location of the forces of the water and oil on the gate.
2. The magnitude and location of the force on the support. ∑MHinge
Solution:
Homework Answers
