Let F(a,b,c,d) = ∑m(7,11, 14, 15) + ∑d(0,10).

Question

Question

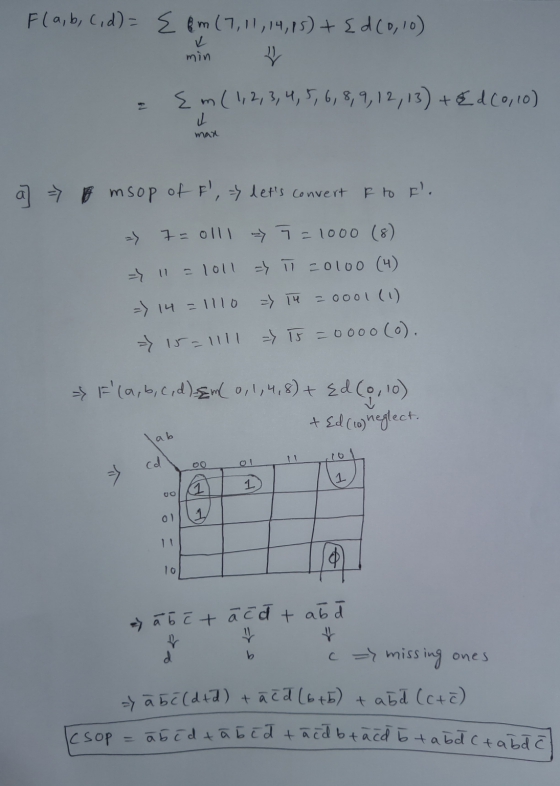

(a) Find a minimum sum-of-products for F'.

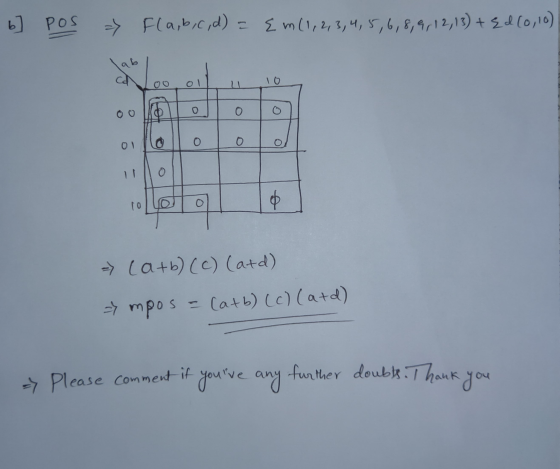

(b) Find a minimum product-of-sums for F.
