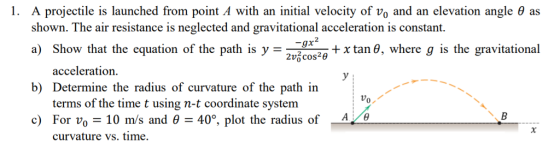

I. A projectile is launched from point A with an initial velocity of vo and an...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

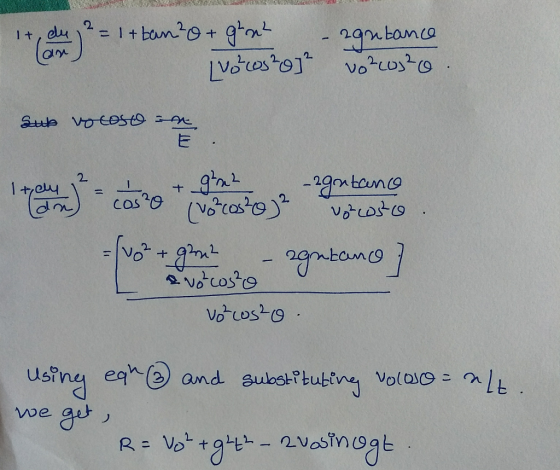

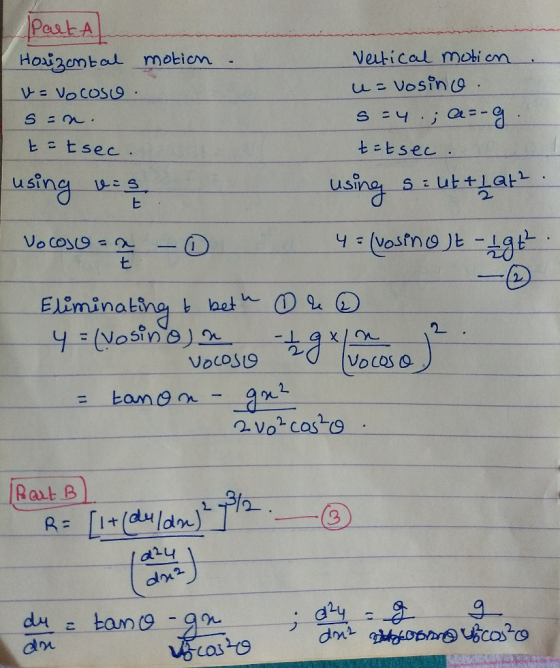

Pest A Hoizenbad moticm 上七sec tetsec using utti usine Ls 0 Eliminating k het n 09. VocoSi9 3 a14 dr

Answer 2

Similar Homework Help Questions

If the projectile is launched at a launching angle theta, with an initial velocity Vo from...

If the projectile is launched at a launching angle theta, with an initial velocity Vo from a height of Yo above the table top, how long does it take the projectile to fall on the table top? Now that your Voy is no longer zero, so you must use the quadratic equation to solve for t. Express the time in terms of g,Yo,Vo, and theta, make sure that your y-direction is fixed. t= How far would it travel? Express in...
11) A projectile is launched with velocity vo at angle θ. a. Derive a general equation...

11) A projectile is launched with velocity vo at angle θ. a. Derive a general equation for the time of flight in terms of vo. 0, and g. b. Derive a general equation for the distance traveled (range) c. What elevation angle results in the maximum range? d. Prove your result from c by taking o of your range formula. de
A projectile is launched with an initial velocity v , at an angle θ' above the...

A projectile is launched with an initial velocity v , at an angle θ' above the horizontal. At a certain pont A in its motion, its velocity angle is 0, above the horizontal. At another point B, later in its motion, its velocity angle is θ8 below the horizontal. What is the horizontal distance from A to B? 2. (Model the projectile as a particle. Assume a constant standard earth-surface g value. Ignore all air resistance.) You may assume that...

If a projectile is fired with an initial velocity of vo meters per second at an...

If a projectile is fired with an initial velocity of vo meters per second at an angle a above the horizontal and air resistance is assumed to be negligible, then its position after t seconds is given by the parametric equations x = (vo cos(a)t y = (vo sin(a)t - +- 1012 where g is the acceleration due to gravity (9.8 m/s2). (Round your answers to the nearest whole number.) (a) If a gun is fired with a = 30°...
MATLAB Write a user defined function for a projectile motion. If a ball is launched from...

MATLAB Write a user defined function for a projectile motion. If a ball is launched from initial position(0,0) with a velocity v0 at angle θ, determine your horizontal and vertical position. Please plot x vs. t, y vs. t and y vs. x.
40. A projectile is launched from the top of a building with an initial velocity of...

40. A projectile is launched from the top of a building with an initial velocity of 10.0 m/s at an angle of 42.0 below the horizontal. The building is 34.0 meters tall, and it stands on level ground. Air resistance is negligible. Calculate (a) the distance traveled horizontally by the projectile by the time it hits the ground, and (b) the magnitude and direction of the projectile's velocity at the instant it arrives at the ground.

A projectile is launched from level ground at an angle of 30 degrees to the horizontal....

A projectile is launched from level ground at an angle of 30 degrees to the horizontal. If the magnitude of the launch velocity is 30 m/s, calculate the time rate of change in speed and radius of curvature when t=1, 2, and when the projectile is at its max height. Please do the problem how the description says to do it below and put the answer neatly in a table format. Thank you. 2) A projectile is launched from level...
A projectile is launched from the edge of a cliff with a velocity of 15.0 m/s...

A projectile is launched from the edge of a cliff with a velocity of 15.0 m/s at an angle of 30.0 degrees above the horizontal. Ignoring air resistance, what is the velocity of the projectile 2.00 seconds later?
A projectile is launched with an initial velocity of 40 m/s at 60° above the horizontal....

A projectile is launched with an initial velocity of 40 m/s at 60° above the horizontal. Neglecting air resistance, what is horizontal component of the projectile's acceleration?

1. If a projectile is fired with an initial velocity of vo meters per second at...

If a projectile is fired with an initial velocity of v0 meters per second at an angle α above the horizontal, and air resistance is assumed to be negligible, then its position after t seconds is given by the parametric equationsx=(v0 cos α) t y=(v0 sin α) t-1/2 g t2where g is the acceleration due to gravity (9.8 m / s2)(a) If a projectile is fired with α=45° and v0=900 m / s, when will it hit the ground? How...
