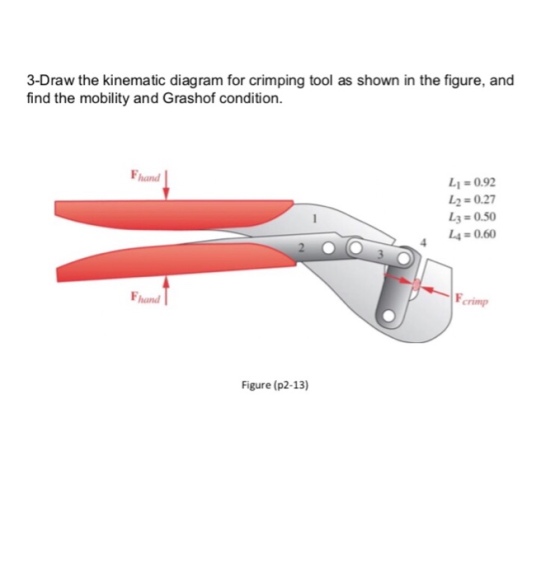

Kinematics of mechanisms 3-Draw the kinematic diagram for crimping tool as shown in the figure, and...

Question

Question

Kinematics of mechanisms

engineering Mechanical-Engineering

Answer 1

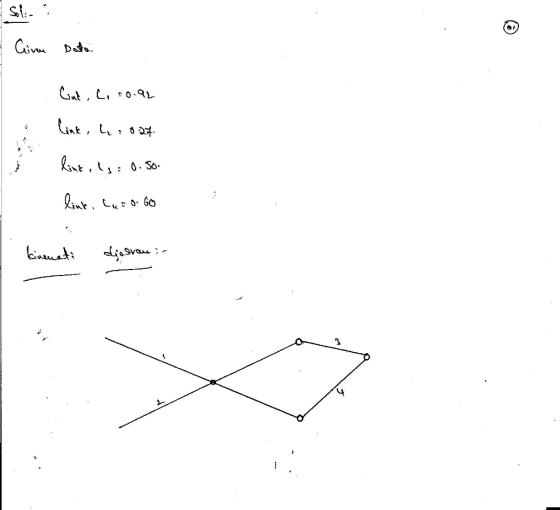

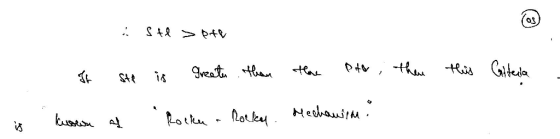

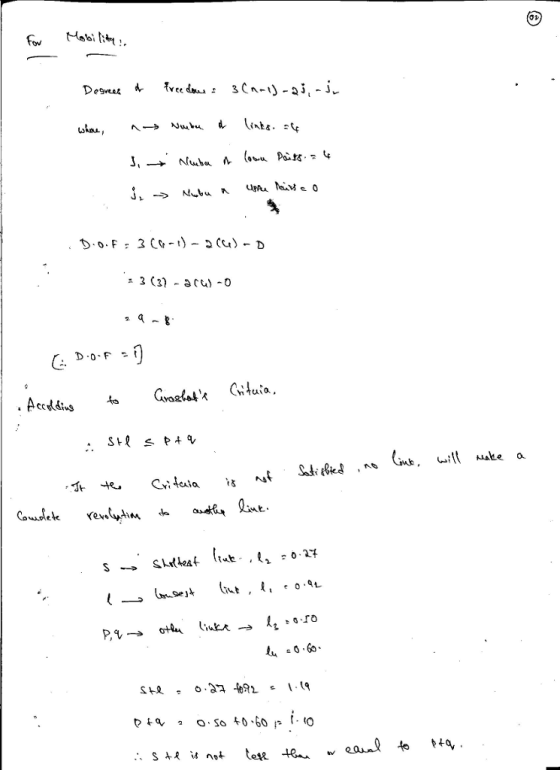

Answer #1

Answer 2

Similar Homework Help Questions

kinematics design of machinery . For each of mechanisms shown below, idenify kinematic pairs, sketch kinematic...

kinematics design of machinery . For each of mechanisms shown below, idenify kinematic pairs, sketch kinematic diagrams and calculate mobility. (Answer in spaces provided. Attach separate sheets if needed) a) A power hack saw used to cut metals. Link 5 pivot at O5 L2 75 mm L3 170 mm 4 2 45 mm Vblade cut stroke O2 and Os workpiece . For each of mechanisms shown below, idenify kinematic pairs, sketch kinematic diagrams and calculate mobility. (Answer in spaces provided....
