Three point charges, A = 1.80 μC B =7.20 μC, and C = -4.20 μC are located at the corners of an equilateral triangle as in the figure above

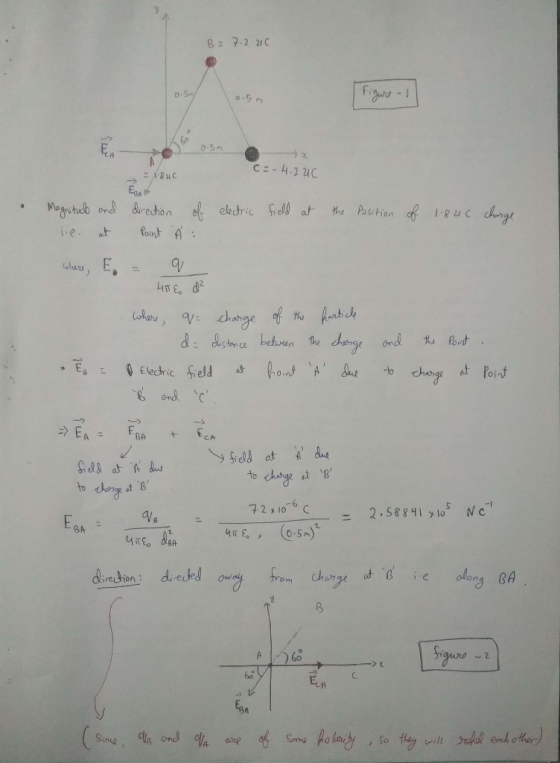

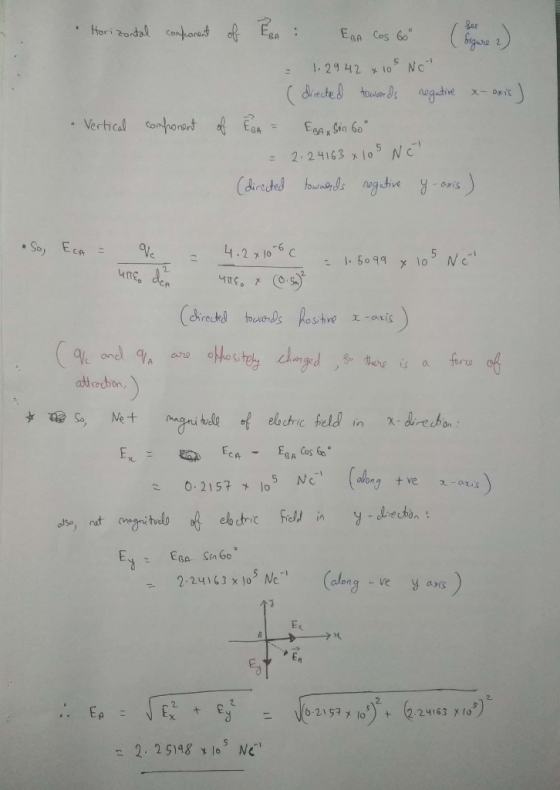

a) Three point charges, A = 1.80 μC B =7.20 μC, and C = -4.20 μC are located at the corners of an equilateral triangle as in the figure above. FInd the magnitude and direction of the electric field at the position of the 1.80 pC charge.

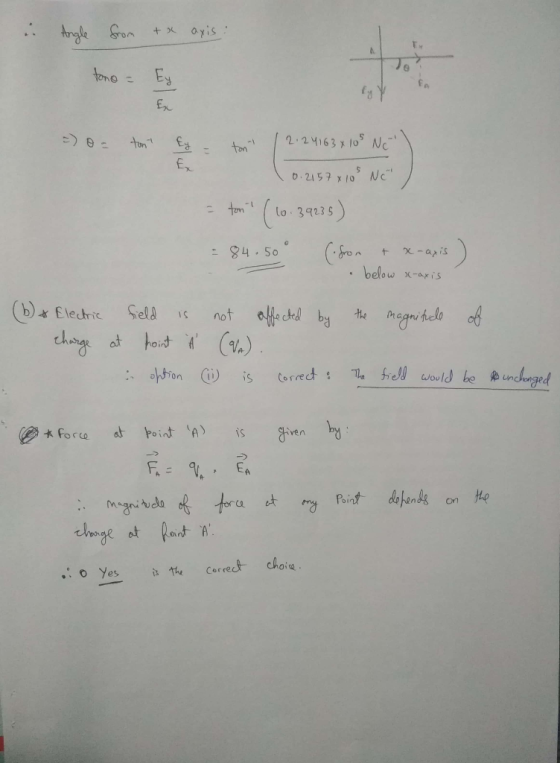

(b) How would the electric field at that point be affected if the charge there were doubled?
The magnitude of the field would be halved
The field would be unchanged
The magnitude of the field would double
The magnitude of the field would quadruple
Would the magnitude of the electric force be affected?
Yes
No
