Homework Answers
Add Answer to:

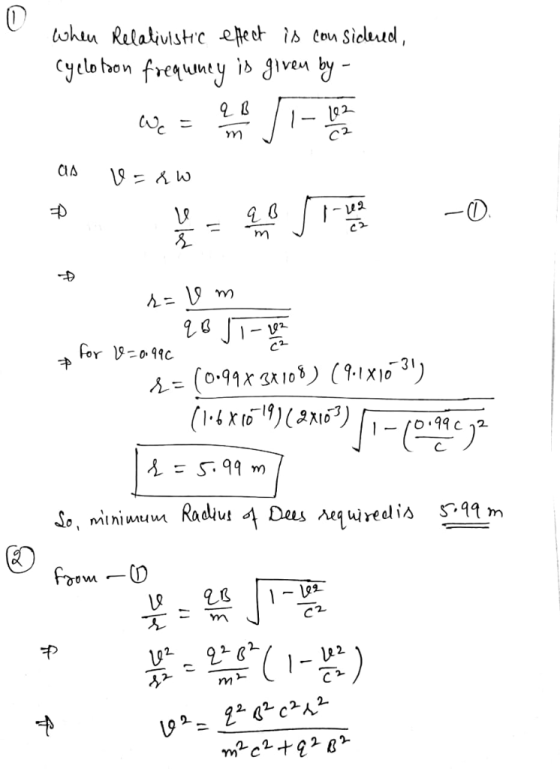

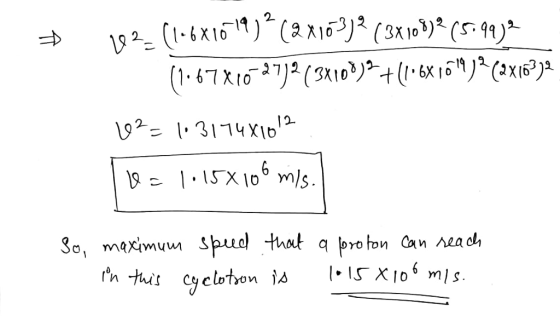

Problem D An electron travels in a cyclotron; the B-field is uniform in the "Dees", of...
Problem 1: An electron travels through the uniform magnetic field of field strength B = (2.5...
Problem 1: An electron travels through the uniform magnetic field of field strength B = (2.5 i +3.5i) mt and electric field of field strength 4.00 IV/M. If the electron is moving with the velocity v= (1500 j + 2000 k)m/s. Calculate the net force acting on the electron in terms of unit vector notation.
An electron travels through the uniform magnetic field of field strength B = (2.5 i +...
An electron travels through the uniform magnetic field of field strength B = (2.5 i + 3.5 j ) mT and electric field of field strength 4.00 I V/M . If the electron is moving with the velocity v= (1500 j + 2000 k)m/s. Calculate the net force acting on the electron in terms of unit vector notation.
The force exerted by a uniform magnetic field on an electron is 1.7 N while the...
The force exerted by a uniform magnetic field on an electron is 1.7 N while the electron moves at a constant velocity. The electron travels at 17 degrees to the direction of the field. What is the minimum possible magnitude of force on the electron while traveling at the same velocity in a magnetic field of the same strength? Explain.
(1) Cyclotron radiation Free electrons and protons will gyrate, or circle, around magnetic field lines at a frequency fgy equal to JEyrO2T m where B is the magnetic field. q is the charge of the p...
(1) Cyclotron radiation Free electrons and protons will gyrate, or circle, around magnetic field lines at a frequency fgy equal to JEyrO2T m where B is the magnetic field. q is the charge of the particle, and m is the mass of the particle. Jgyro is call the gyro frequency, and is also called the cyclotron frequency. As we discussed in class, charges which change their velocity will create electromagnetic waves If they change their velocity in a repeating pattern...
An electron in a TV camera tube is moving at 7.20×106 m/s in a magnetic field...
An electron in a TV camera tube is moving at 7.20×106 m/s in a magnetic field of strength 65 mT. Without knowing the direction of the field, what can you say about the greatest and least magnitude of the force acting on the electron due to the field? Maximum force? Submit Answer Tries 0/99 Minimum force? Submit Answer Tries 0/99 At one point the acceleration of the electron is 7.509×1016 m/s2. What is the angle between the electron velocity and...
Chapter 28, Problem 010 A proton travels through uniform magnetic and electric fields. The magnetic field...
Chapter 28, Problem 010 A proton travels through uniform magnetic and electric fields. The magnetic field is in the negative x direction and has a magnitude of 2.76 mt. At one instant the velocity of the proton is in the positive y direction and has a magnitude of 1890 m/s. At that instant, what is the magnitude of the net force acting on the proton if the electric field is (a) in the positive z direction and has a magnitude...
An electron (m_p = 9.1 times 10^-31 kg, q_p = -1.6 times 10^-19 C) travels at...
An electron (m_p = 9.1 times 10^-31 kg, q_p = -1.6 times 10^-19 C) travels at 4 times 10^5 m/s in a direction perpendicular to a uniform 3.0 mT magnetic field. What is the diameter of its path? Two long straight wires each carrying a current of 200 A in the same directions are separated by a distance of 40 cm. Calculate the force on a 2m long section of wire. Is the force attractive or repulsive? An electron is...
1. An electron (q = -1.6x10-19 C, m=9.11x10-31 kg) is placed in an electric field of...
1. An electron (q = -1.6x10-19 C, m=9.11x10-31 kg) is placed in an electric field of magnitude 3.52x104N/C which points in the positive z direction. Calculate the magnitude and direction of the acceleration of the electron. 2. An electron is initially moving in the +z direction, with a speed v=2.54x105 m/s at z=0. In the region between z=+1.50 cm and z=+2.50 cm, there is a uniform electric field of magnitude 4.10x104 N/C in the +x direction. Outside that region (z...
A spatially uniform magnetic field B exists within a cylindrical volume of radius R, pointing into...
A spatially uniform magnetic field B exists within a cylindrical volume of radius R, pointing into the page. at the rate of 10.0m. (i) Find the initial acceleration of a proton released at a point a directly below the center of the cylinder, at a radial distance of 5.00cm. The magnitude of this field is decreasing (ii) Now find the acceleration of an electron released at the same point. both parts. (HINT: Use your knowledge of Faraday's Law to first...
Problem 4: Assume there is a uniform electric field of E = a + bů -...
Problem 4: Assume there is a uniform electric field of E = a + bů - ca. Part a (10 points) How much work is needed to move an electron a distance, d, in the negative may leave the charge of the electron in terms of the base unit of charge e. Part b (3 points) What is the maximum flux possible through a disc of radius, R, in this field? Part c (3 points) What is the minimum flux...
Problem 1: An electron travels through the uniform magnetic field of field strength B = (2.5 i +3.5i) mt and electric field of field strength 4.00 IV/M. If the electron is moving with the velocity v= (1500 j + 2000 k)m/s. Calculate the net force acting on the electron in terms of unit vector notation.
(1) Cyclotron radiation Free electrons and protons will gyrate, or circle, around magnetic field lines at a frequency fgy equal to JEyrO2T m where B is the magnetic field. q is the charge of the particle, and m is the mass of the particle. Jgyro is call the gyro frequency, and is also called the cyclotron frequency. As we discussed in class, charges which change their velocity will create electromagnetic waves If they change their velocity in a repeating pattern...
Chapter 28, Problem 010 A proton travels through uniform magnetic and electric fields. The magnetic field is in the negative x direction and has a magnitude of 2.76 mt. At one instant the velocity of the proton is in the positive y direction and has a magnitude of 1890 m/s. At that instant, what is the magnitude of the net force acting on the proton if the electric field is (a) in the positive z direction and has a magnitude...
An electron (m_p = 9.1 times 10^-31 kg, q_p = -1.6 times 10^-19 C) travels at 4 times 10^5 m/s in a direction perpendicular to a uniform 3.0 mT magnetic field. What is the diameter of its path? Two long straight wires each carrying a current of 200 A in the same directions are separated by a distance of 40 cm. Calculate the force on a 2m long section of wire. Is the force attractive or repulsive? An electron is...
A spatially uniform magnetic field B exists within a cylindrical volume of radius R, pointing into the page. at the rate of 10.0m. (i) Find the initial acceleration of a proton released at a point a directly below the center of the cylinder, at a radial distance of 5.00cm. The magnitude of this field is decreasing (ii) Now find the acceleration of an electron released at the same point. both parts. (HINT: Use your knowledge of Faraday's Law to first...
Problem 4: Assume there is a uniform electric field of E = a + bů - ca. Part a (10 points) How much work is needed to move an electron a distance, d, in the negative may leave the charge of the electron in terms of the base unit of charge e. Part b (3 points) What is the maximum flux possible through a disc of radius, R, in this field? Part c (3 points) What is the minimum flux...
