8. (5-1) Calculate the ratio v2/vi. First assume that the operational amplifier is ideal, then redo...

Question

Question

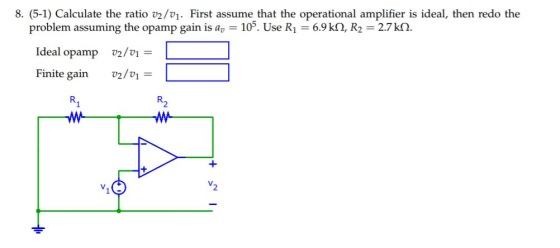

8. (5-1) Calculate the ratio v2/vi. First assume that the operational amplifier is ideal, then redo the problem assuming the

engineering Electrical-Engineering

Answer 1

Answer #1

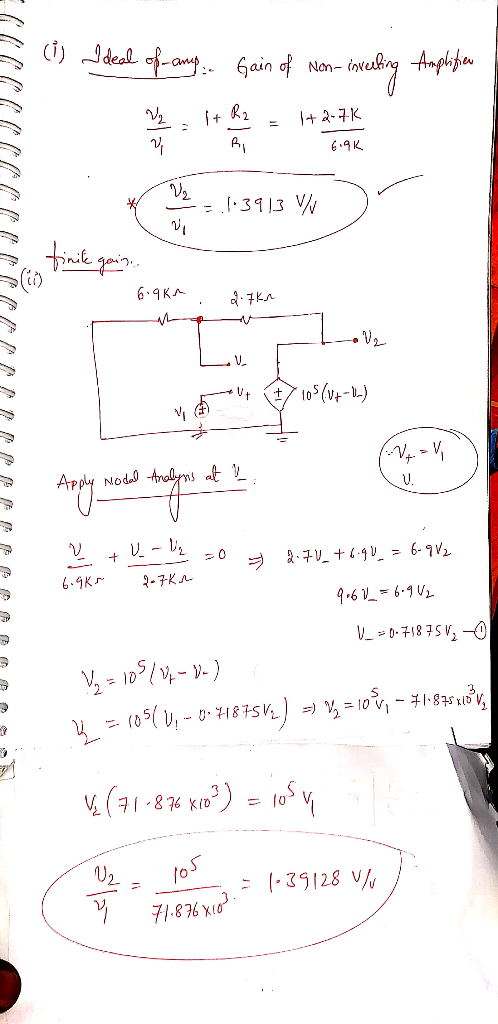

(i) Adeal Apply Nod 2-礼+4.gl_ _ 6-Ma 0 ラ 5 2. 二 1.39128 vん 귀.8Xyt?
