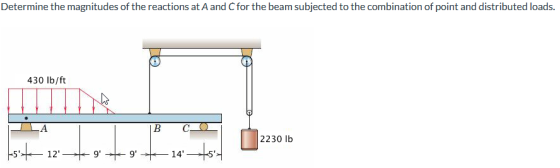

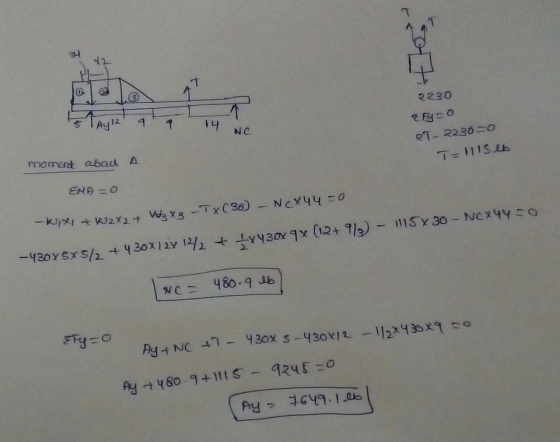

Determine the magnitudes of the reactions at A and Cfor the beam...
Determine the magnitudes of the reactions at A and B for the beam loaded as shown....
Determine the magnitudes of the reactions at A and
B for the beam loaded as shown.
Chapter 5, Problem 5/091 GO Tutorial Determine the magnitudes of the reactions at A and B for the beam loaded as shown 1620 lb/ft 15400 lb-ft A В 5' 51 Answers: A = lb B = lb o
Distributed Loads Saved Determine the reactions at the beam support for the given loading when MB...
Distributed Loads Saved Determine the reactions at the beam support for the given loading when MB = 102 lb points 40 lb/in. 19 to 1 eBook Hint -4 in. — 6 in. Print The reaction at the beam support Bis O b lo (Click to select) 9. References The moment at the beam support Bis bin. (Click to select)).
3. Determine the reactions at A and B for the following beam. 800 lb/ft 500 Ib/ft...
3. Determine the reactions at A and B for the following beam. 800 lb/ft 500 Ib/ft 12' 9
Plot the shear and moment diagrams for the beam subjected to the two work. forces and...
Plot the shear and moment diagrams for the beam subjected to the two work. forces and combination of distributed loads. After you have the plots, answer the questions as a check on your 3 kN 3 kN 2 kN/m 12 m 4 m 610 N/m 17 m 3 m 3 m4m Questions When x-1.9 ft, V- N-m when x = 6.5 ft, V = N-m When x = 14.0 ft, V when x 19.0 ft, V When x = 20.6...
4.26? ROBLEMS 4.26 The homogeneous bar AB weighs 25 lb. Determine the magnitudes of the forces...
4.26?
ROBLEMS 4.26 The homogeneous bar AB weighs 25 lb. Determine the magnitudes of the forces acting on the bar at A and B. Neglect friction. 160 lb/ft .4 12 ft Figure P4.26 Figure P4.27 Figure P4.28 4.27 Determine the smallest horizontal force P that would push the homogeneous cylinder of weight Wover the curb. Neglect friction. 4.28 The homogeneous beam AB weighing 800 lb carries the distributed load shown. Find the support reactions at A and B 4.29 The...
the distributed load does not include beam weight. please find reactions, moment/phase diagrams, and what the...
the distributed load does not include beam weight. please find
reactions, moment/phase diagrams, and what the question is asking.
please actually complete the whole question. thanks!
4-14. The beam shown is supported on pedestals 20-in. wide The loads are service loads, isudsst. The clear span is 24'-4". Use f- 4000 psi; the reinforcing steel is A615 Grade 60 Design shear reinforcing for the beam: a. Between the point load and the left reaction b. Between the point load and the...
Determine if the beam shown in the figure is adequate as governed by the ACI Code (318-11). The l...
Determine if the beam shown in the figure is adequate as
governed by the ACI
Code (318-11). The loads shown are service loads. The uniformly
distributed load is DL =
0.65 + 0.F = _________ kip/ft, LL = 0.55 + 0.E = ________
kip/ft. The dead load excludes
the beam weight. The point load is a live load. f’c = 3,000 psi,
fy = 40,000 psi.
Assume that all variables A,B,C,D,E,F,G are 3.5
kips (LL) 20A"= 20 + D= -...
3. Refer to Figure 3. A 64-foot steel beam supports a combination of concentrated and distributed...
3. Refer to Figure 3. A 64-foot steel beam supports a combination of concentrated and distributed loads: Force Fi = 9 K, F2 = 3.65 K, w1 = .525K per lineal foot, and w2 = .212K per lineal foot. In addition, your calculations must include an estimated beam weight of 148 pounds per lineal foot. Part A: What are the magnitudes, in kips, and directions of the vertical components of the reactions at each support? (4 points) Part B: Construct...
For the beam of Problem 8.27, determine the maximum positive and negative shears and the maximum positive and negative...
For the beam of Problem 8.27, determine the maximum positive and negative shears and the maximum positive and negative bending moments at point E due to a concentrated live load of 40 k, a uniformly distributed live load of 2 k/ft, and a uniformly distributed dead load of 1 k/ft. Reference: Problem 8.27 8.27 Draw the influence lines for the vertical reactions at supports B, D, and G and the reaction moment at support G of the beam shown in...
can someone help me with this civil engineering problem? For the below beam the loads are:...
can someone help me with this civil engineering problem?
For the below beam the loads are:
12 (k), 6 (k-ft.), 8 (k) and 5 (k).
The reactions for the beam are:
R(B) = 1.8571428571428572 (k), R(E) = 95.14285714285714 (k)
a) Draw the shear and moment diagram for the beam. Show all work
on the material turned into the ELC. Label all points.
b) Using singularity functions write the equations for shear and
moment for the beam. Show all work on...
Determine the magnitudes of the reactions at A and
B for the beam loaded as shown.
Chapter 5, Problem 5/091 GO Tutorial Determine the magnitudes of the reactions at A and B for the beam loaded as shown 1620 lb/ft 15400 lb-ft A В 5' 51 Answers: A = lb B = lb o
Distributed Loads Saved Determine the reactions at the beam support for the given loading when MB = 102 lb points 40 lb/in. 19 to 1 eBook Hint -4 in. — 6 in. Print The reaction at the beam support Bis O b lo (Click to select) 9. References The moment at the beam support Bis bin. (Click to select)).
3. Determine the reactions at A and B for the following beam. 800 lb/ft 500 Ib/ft 12' 9
Plot the shear and moment diagrams for the beam subjected to the two work. forces and combination of distributed loads. After you have the plots, answer the questions as a check on your 3 kN 3 kN 2 kN/m 12 m 4 m 610 N/m 17 m 3 m 3 m4m Questions When x-1.9 ft, V- N-m when x = 6.5 ft, V = N-m When x = 14.0 ft, V when x 19.0 ft, V When x = 20.6...
4.26?
ROBLEMS 4.26 The homogeneous bar AB weighs 25 lb. Determine the magnitudes of the forces acting on the bar at A and B. Neglect friction. 160 lb/ft .4 12 ft Figure P4.26 Figure P4.27 Figure P4.28 4.27 Determine the smallest horizontal force P that would push the homogeneous cylinder of weight Wover the curb. Neglect friction. 4.28 The homogeneous beam AB weighing 800 lb carries the distributed load shown. Find the support reactions at A and B 4.29 The...
the distributed load does not include beam weight. please find
reactions, moment/phase diagrams, and what the question is asking.
please actually complete the whole question. thanks!
4-14. The beam shown is supported on pedestals 20-in. wide The loads are service loads, isudsst. The clear span is 24'-4". Use f- 4000 psi; the reinforcing steel is A615 Grade 60 Design shear reinforcing for the beam: a. Between the point load and the left reaction b. Between the point load and the...
Determine if the beam shown in the figure is adequate as
governed by the ACI
Code (318-11). The loads shown are service loads. The uniformly
distributed load is DL =
0.65 + 0.F = _________ kip/ft, LL = 0.55 + 0.E = ________
kip/ft. The dead load excludes
the beam weight. The point load is a live load. f’c = 3,000 psi,
fy = 40,000 psi.
Assume that all variables A,B,C,D,E,F,G are 3.5
kips (LL) 20A"= 20 + D= -...
3. Refer to Figure 3. A 64-foot steel beam supports a combination of concentrated and distributed loads: Force Fi = 9 K, F2 = 3.65 K, w1 = .525K per lineal foot, and w2 = .212K per lineal foot. In addition, your calculations must include an estimated beam weight of 148 pounds per lineal foot. Part A: What are the magnitudes, in kips, and directions of the vertical components of the reactions at each support? (4 points) Part B: Construct...
For the beam of Problem 8.27, determine the maximum positive and negative shears and the maximum positive and negative bending moments at point E due to a concentrated live load of 40 k, a uniformly distributed live load of 2 k/ft, and a uniformly distributed dead load of 1 k/ft. Reference: Problem 8.27 8.27 Draw the influence lines for the vertical reactions at supports B, D, and G and the reaction moment at support G of the beam shown in...
can someone help me with this civil engineering problem?
For the below beam the loads are:
12 (k), 6 (k-ft.), 8 (k) and 5 (k).
The reactions for the beam are:
R(B) = 1.8571428571428572 (k), R(E) = 95.14285714285714 (k)
a) Draw the shear and moment diagram for the beam. Show all work
on the material turned into the ELC. Label all points.
b) Using singularity functions write the equations for shear and
moment for the beam. Show all work on...
