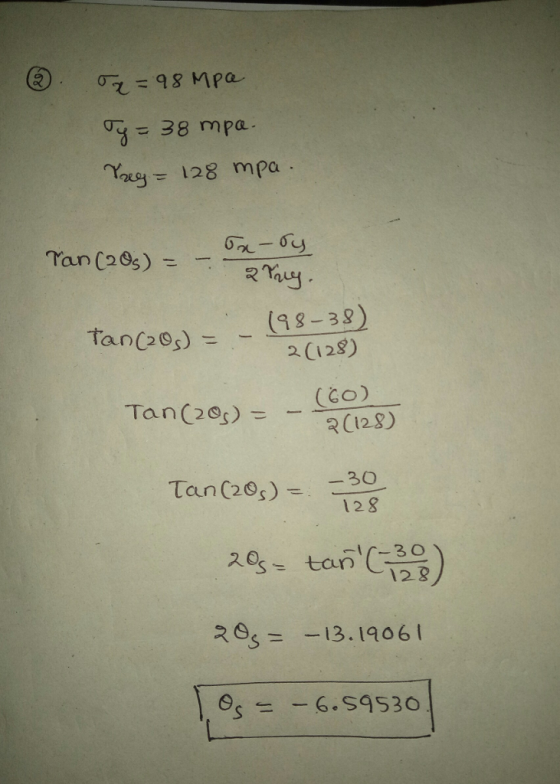

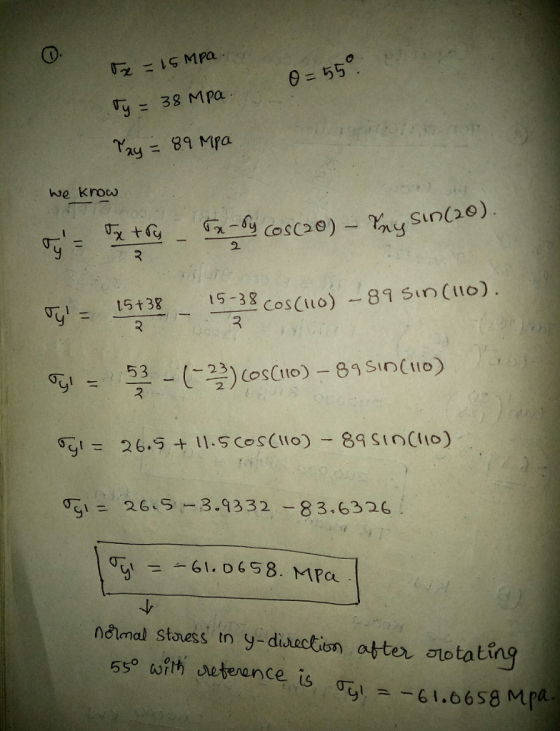

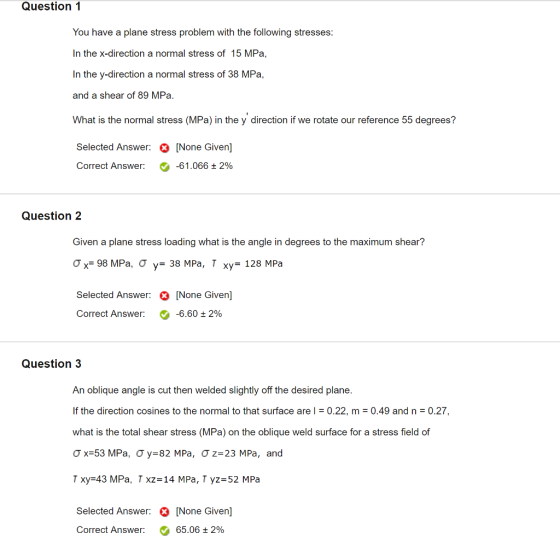

![Question 1 You have a plane stress problem with the following stresses: In the x-direction a normal stress of 15 MPa, In the y-direction a normal stress of 38 MPa, and a shear of 89 MPa. What is the normal stress (MPa) in the y direction if we rotate our reference 55 degrees? Selected Answer: [None Given] Correct Answer: e-61.066 2% Question 2 Given a plane stress loading what is the angle in degrees to the maximum shear? σ,-98 MPa, σ y= 38 MPa, T xy= 128 MPa Selected Answer: [None Given Correct Answer: -6.60 ± 2% Question3 An oblique angle is cut then welded slightly off the desired plane. If the direction cosines to the normal to that surface are l 0.22, m 0.49 and n 0.27, what is the total shear stress (MPa) on the oblique weld surface for a stress field of σ x=53 MPa, Ơy-82 MPa, Ơz-23 MPa, and T xy 43 MPa, T xz- 14 MPa, T yz 52 MPa Selected Answer: None Given 65.06 2% Correct Answer:](http://img.homeworklib.com/questions/da215900-6d62-11ec-8845-2310e87f0705.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
Question 1 You have a plane stress problem with the following stresses: In the x-direction a...
